Home / Products / Compact Drivers / ON/OFF / High PF / LS-21-XXX LI2 EXC

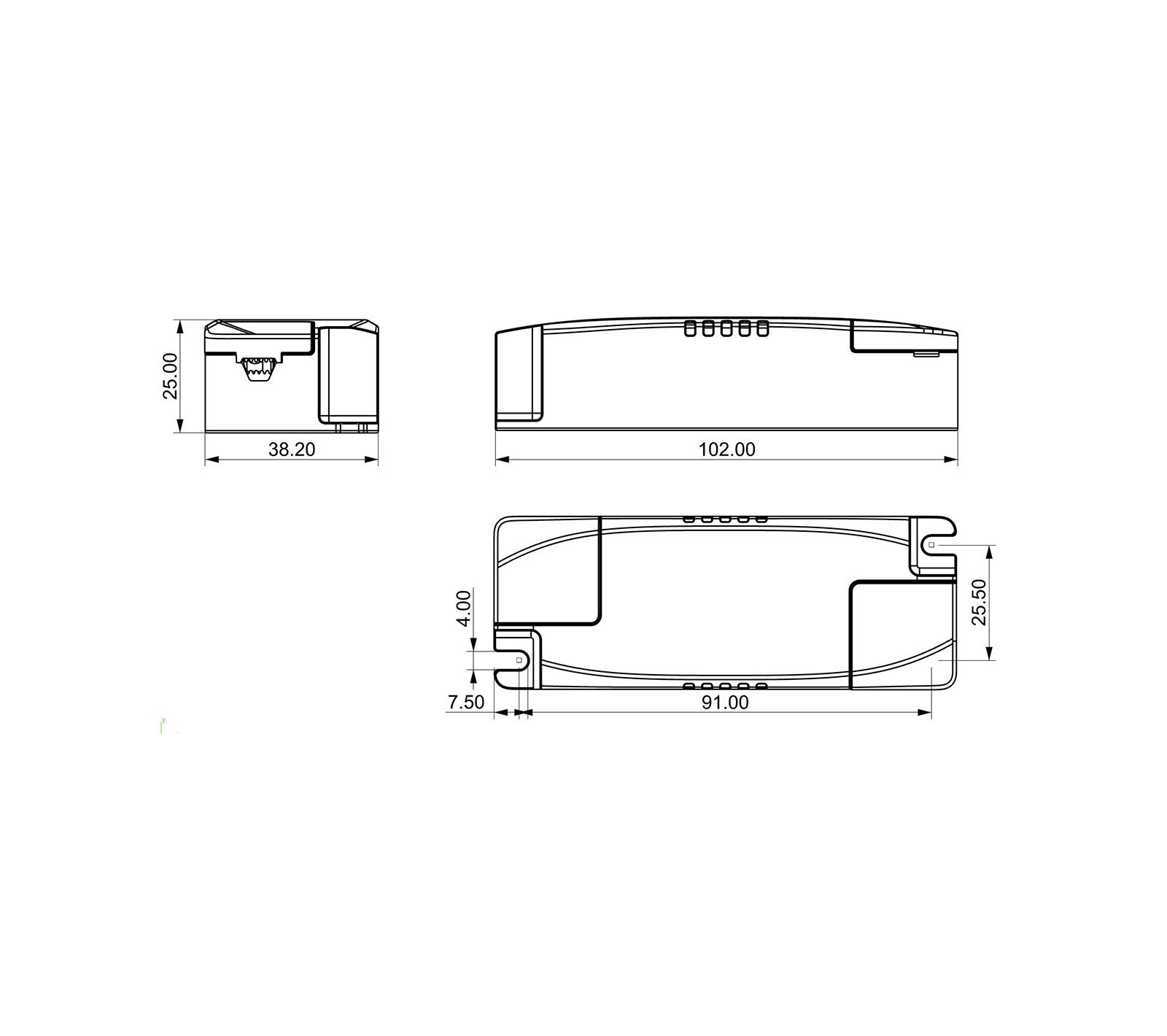

2D Line Drawing

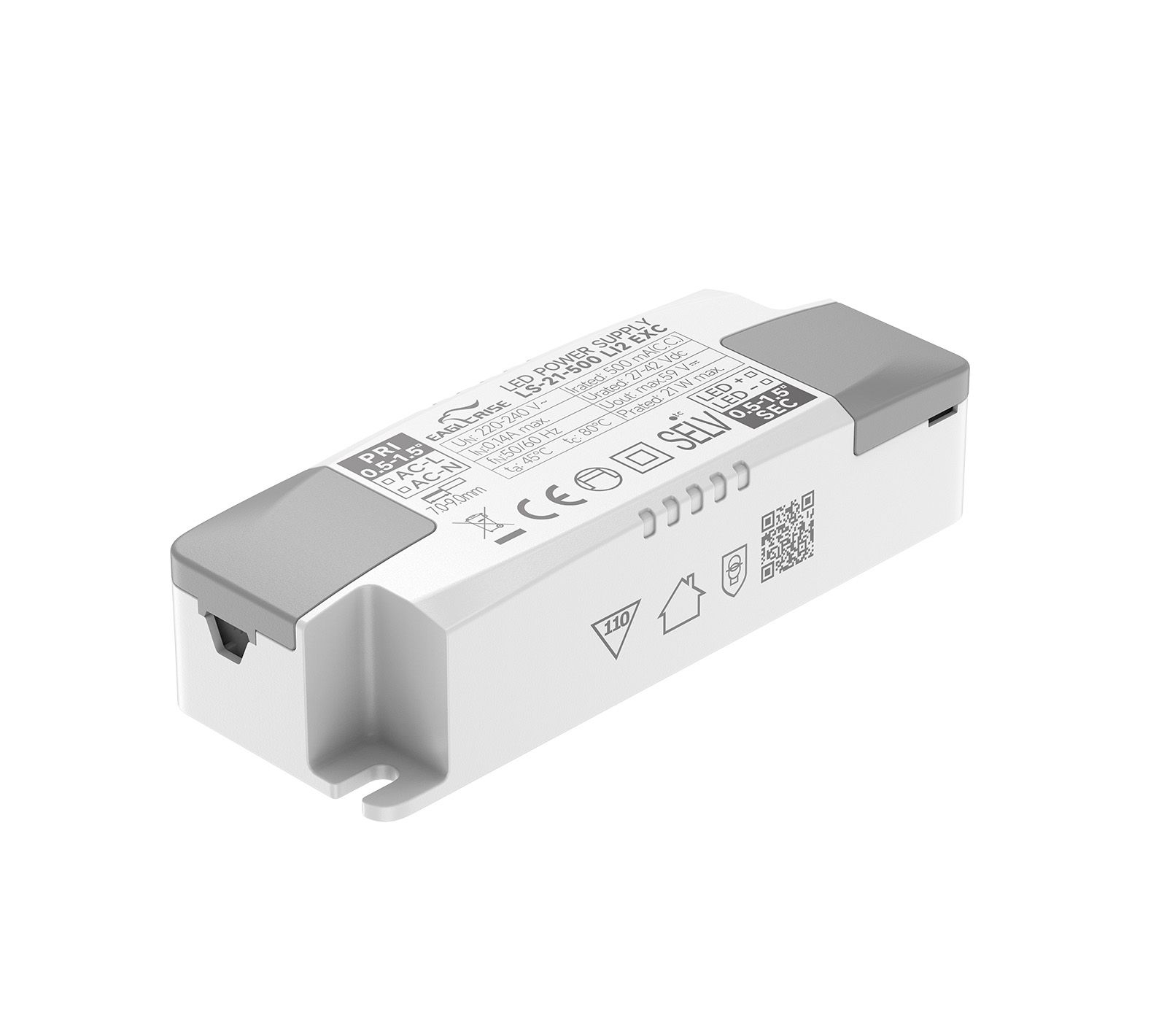

Product Image

2D Line Drawing

21W | 400-500mA

LS-21-XXX LI2 EXC

Product Description:

· For luminaries of protection Class II, SELV, independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor: 0.95

· Efficiency：≥85%

· 5 years warranty

Click to Expand

Inquire Now

Models

Datasheet

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
LS-21-400 LI2 EXC	21W	220-240VAC	400mA	27-42V	85%	0.95	1023825mm
LS-21-450 LI2 EXC	21W	220-240VAC	450mA	27-42V	85%	0.95	1023825mm
LS-21-500 LI2 EXC	21W	220-240VAC	500mA	27-42V	86%	0.95	1023825mm

LS-21-XXX LI2 EXC spec REV B

Related Products

LS-21-XXX LI1 EXC

21W | 400-550mA

LS-21-XXX LI1 EXC
