Home / Products / Compact Drivers / ON/OFF / High PF / LS-21-XXX LI1 EXC

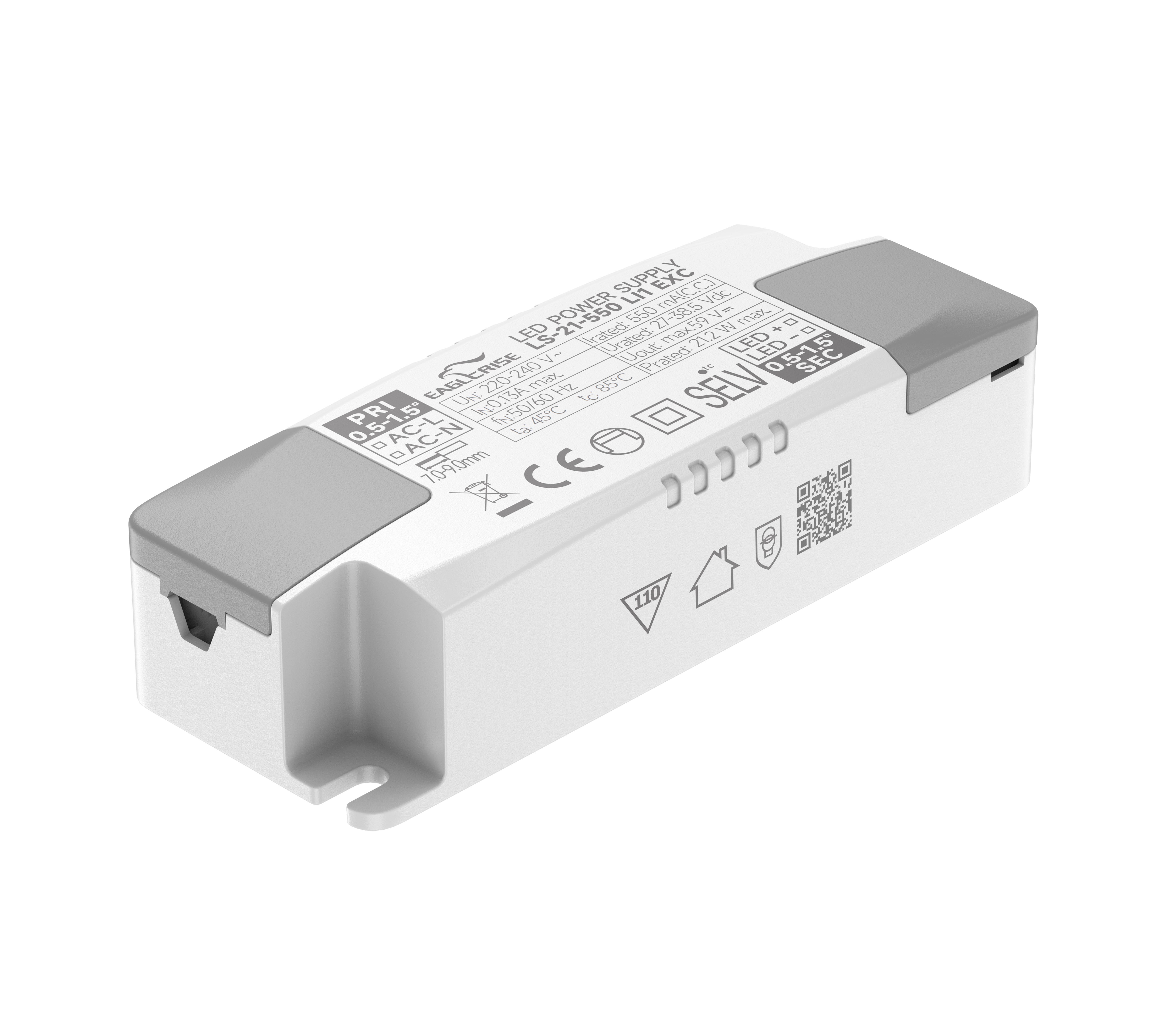

Product Image

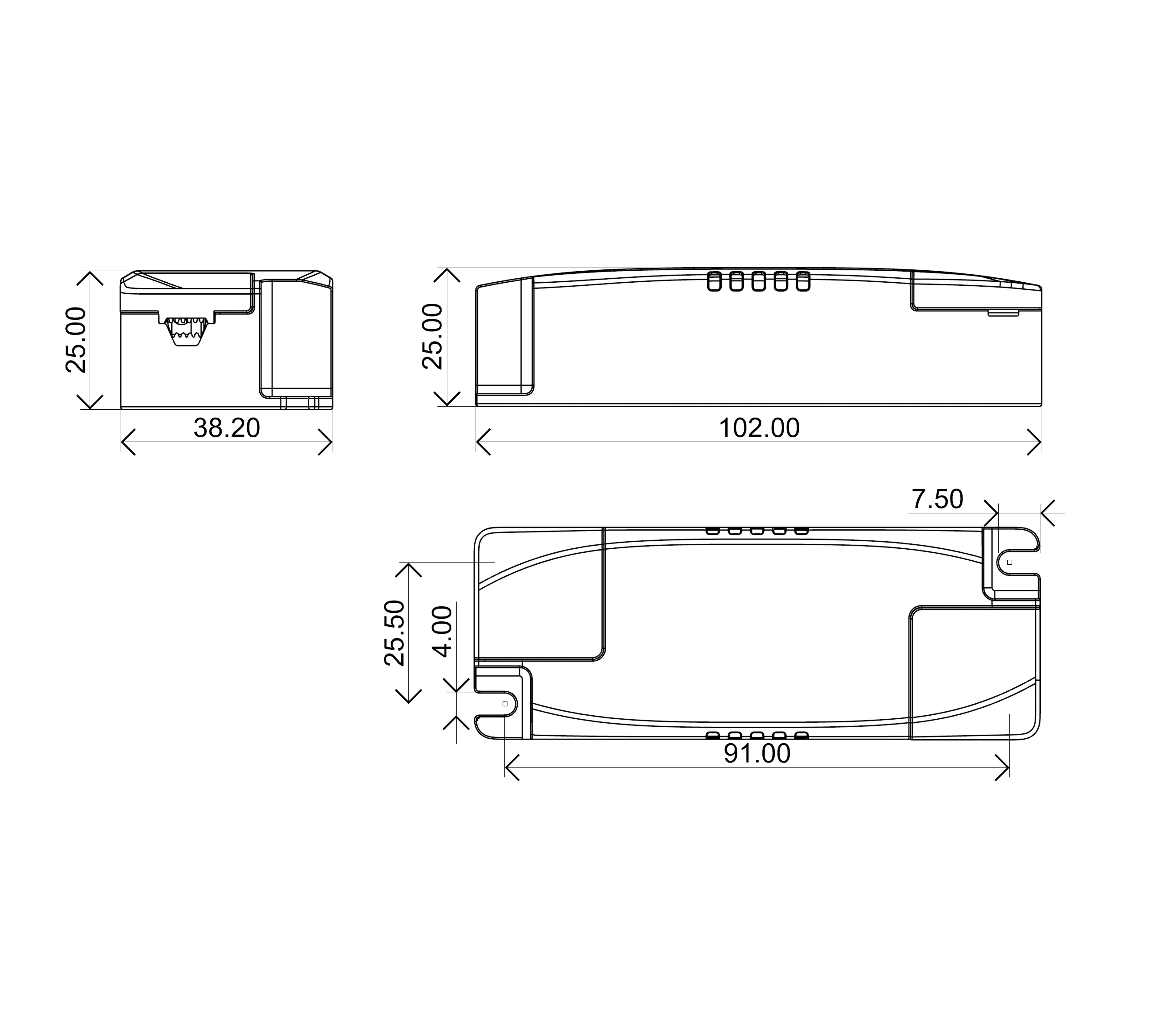

2D Line Drawing
Product Image
2D Line Drawing
21W | 400-550mA

LS-21-XXX LI1 EXC

Product Description:

· For luminaries of protection Class II，SELV，independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor :≥0.95

· Efficiency：≥85%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
LS-21-400 LI1 EXC21W220-240VAC400mA27-42V85%0.95102*38.2*25mm
LS-21-450 LI1 EXC21W220-240VAC450mA27-42V85%0.95102*38.2*25mm
LS-21-500 LI1 EXC21W220-240VAC500mA27-42V86%0.95102*38.2*25mm
LS-21-550 LI1 EXC21W220-240VAC550mA27-38.5V86%0.95102*38.2*25mm


LS-21-XXX LI1 EXC spec REV B
Download All Files
