High PF

High PF

Home / Products / Compact Drivers / ON/OFF / High PF / LS-12-XXX LI2 EXC

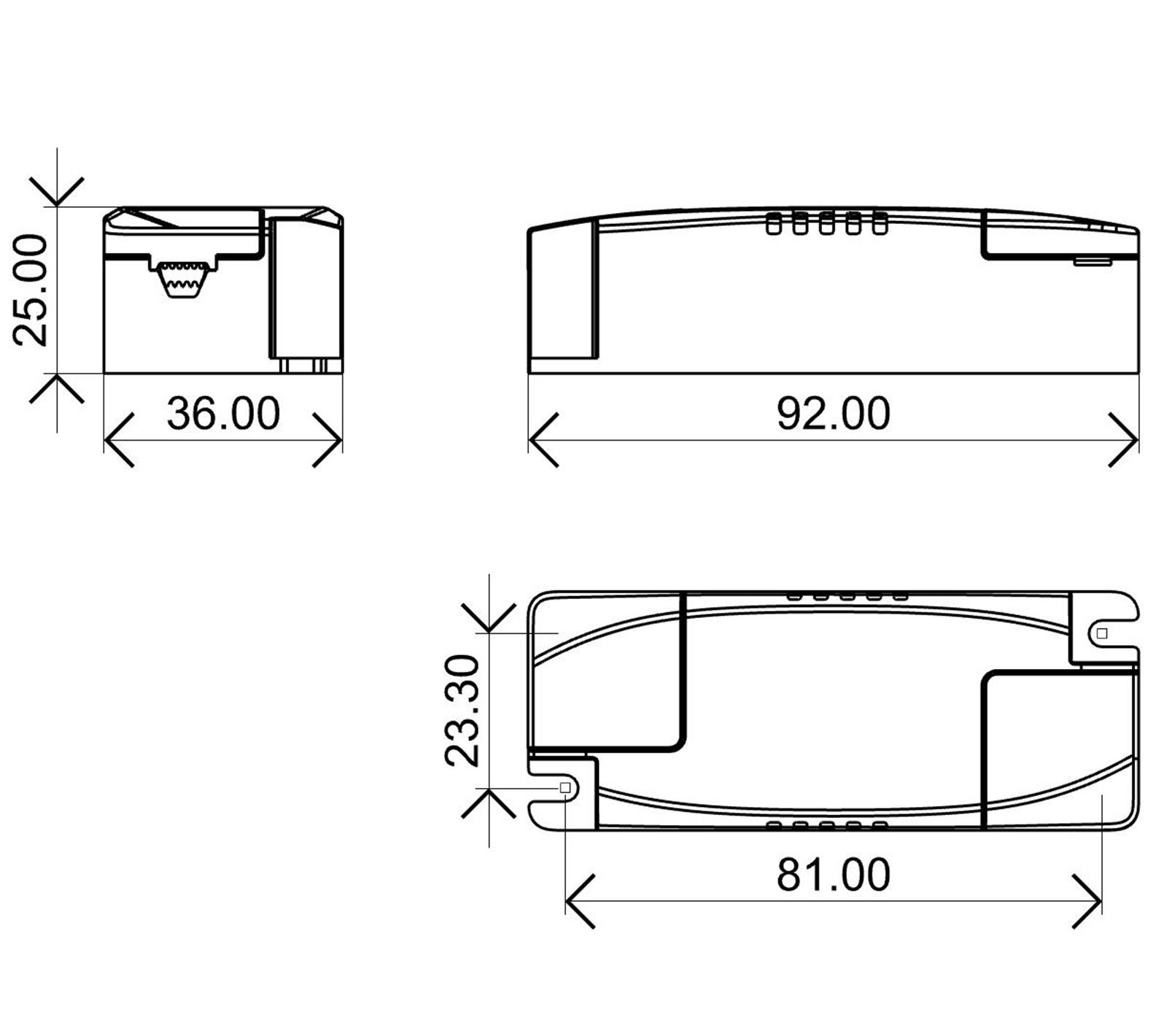

2D Line Drawing

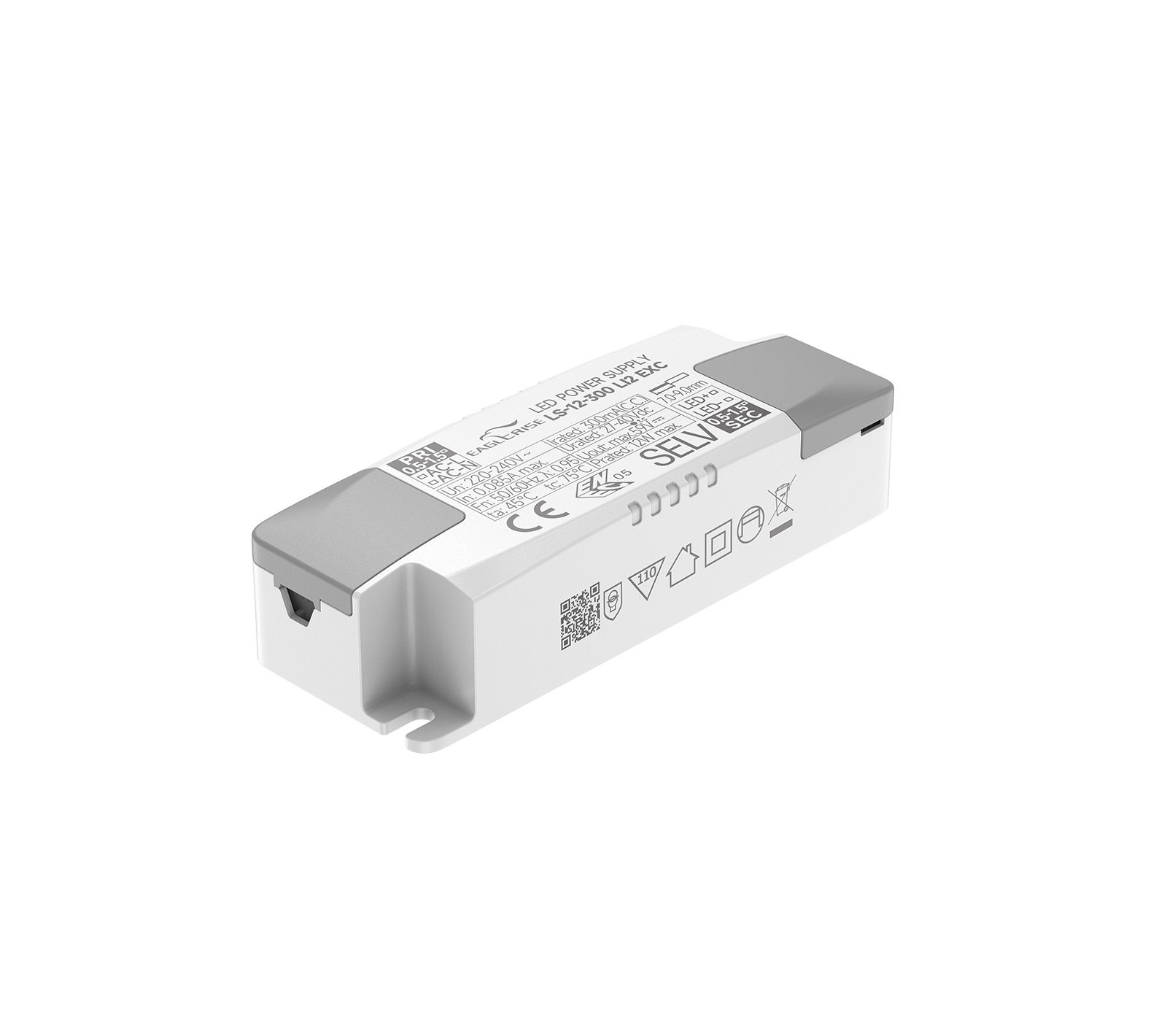

Product Image

2D Line Drawing

12W | 250-300mA

LS-12-XXX LI2 EXC

Product Description:

· For luminaries of protection Class II

· SELV，independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor :0.95

· Efficiency：82%

· 5 years warranty

Click to Expand

Inquire Now

Models

Datasheet

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
LS-12-250 LI2 EXC	12W	220-240VAC	250mA	27-42V	82%	0.95	923625mm
LS-12-280 LI2 EXC	12W	220-240VAC	280mA	27-42V	82%	0.95	923625mm
LS-12-300 LI2 EXC	12W	220-240VAC	300mA	27-40V	82%	0.95	923625mm

LS-12-XXX LI2 EXC spec REV A

Related Products

LS-8-XXX LI2 EXC

8W | 70-220mA

LS-8-XXX LI2 EXC

LS-21-XXX LI2 EXC

21W | 400-500mA

LS-21-XXX LI2 EXC
