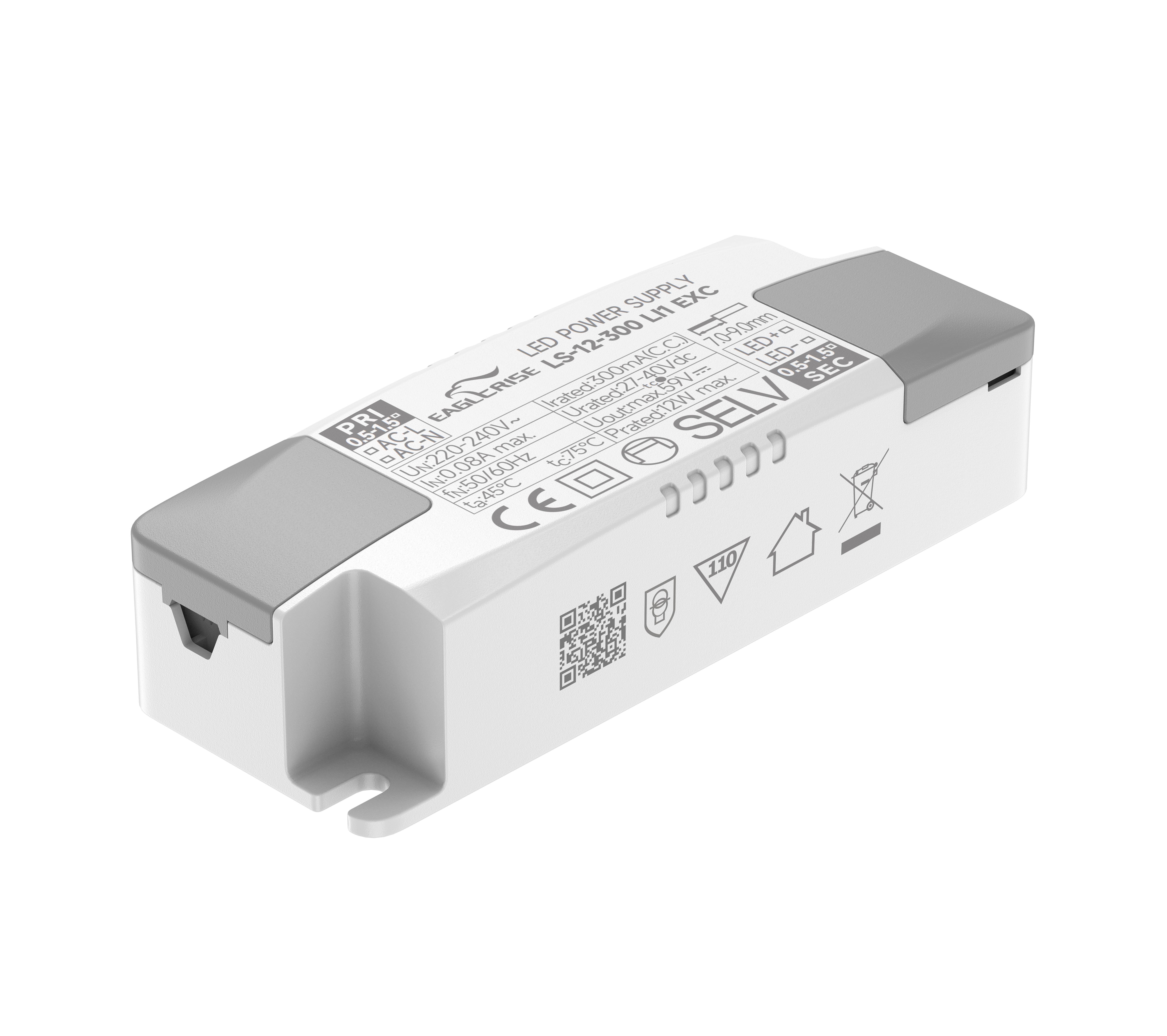

Product Image

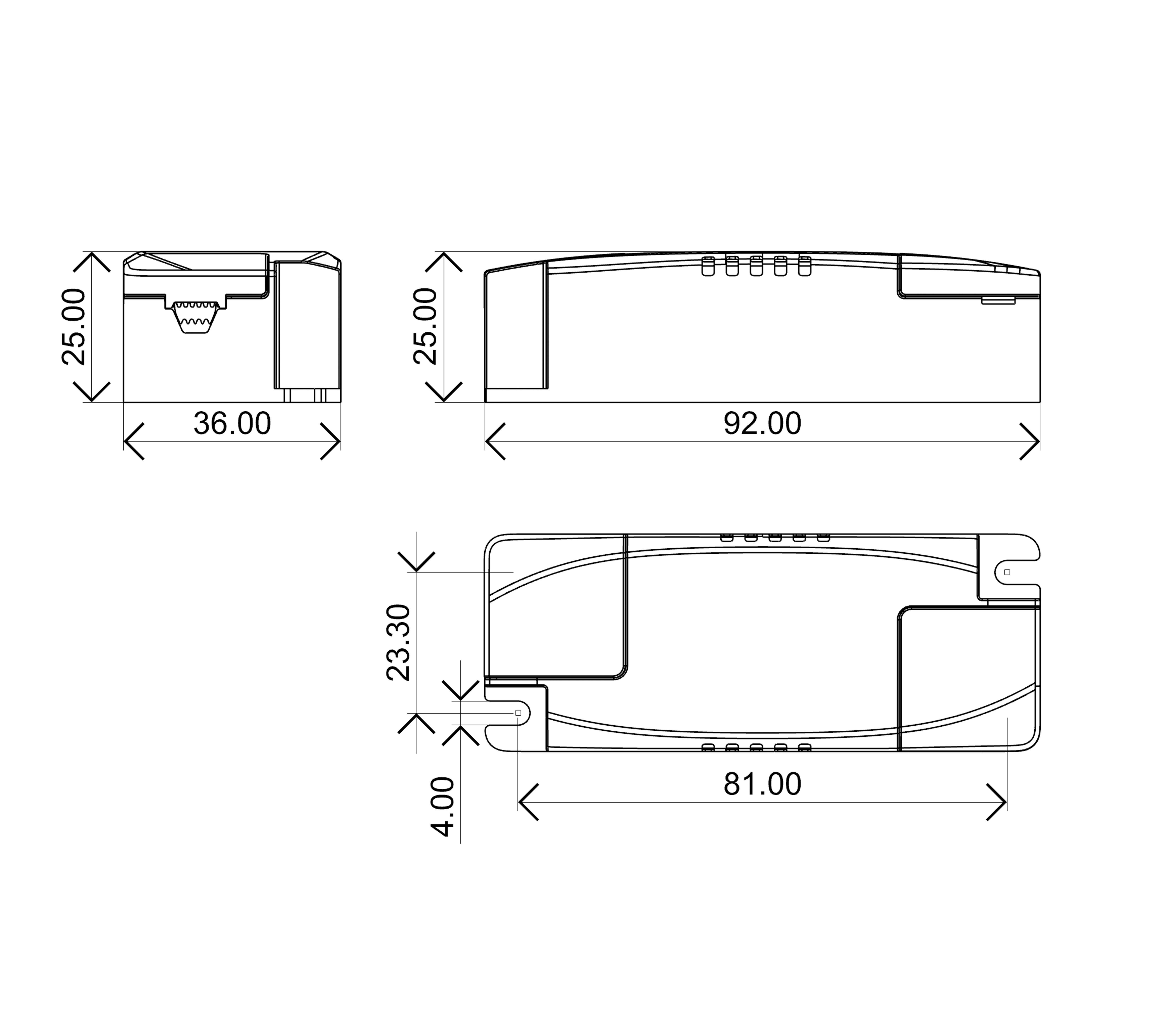

2D Line Drawing
Product Image
2D Line Drawing
12W | 250-300mA

LS-12-XXX LI1 EXC

Product Description:

· For luminaries of protection ClassII，SELV，independent

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：81%

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-12-250 LI1 EXC12W220-240VAC250mA27-42V81%0.9592*36*25mm
LS-12-280 LI1 EXC12W220-240VAC280mA27-42V81%0.9592*36*25mm
LS-12-300 LI1 EXC12W220-240VAC300mA27-40V81%0.9592*36*25mm



LS-12-XXX LI1 EXC spec REV A
