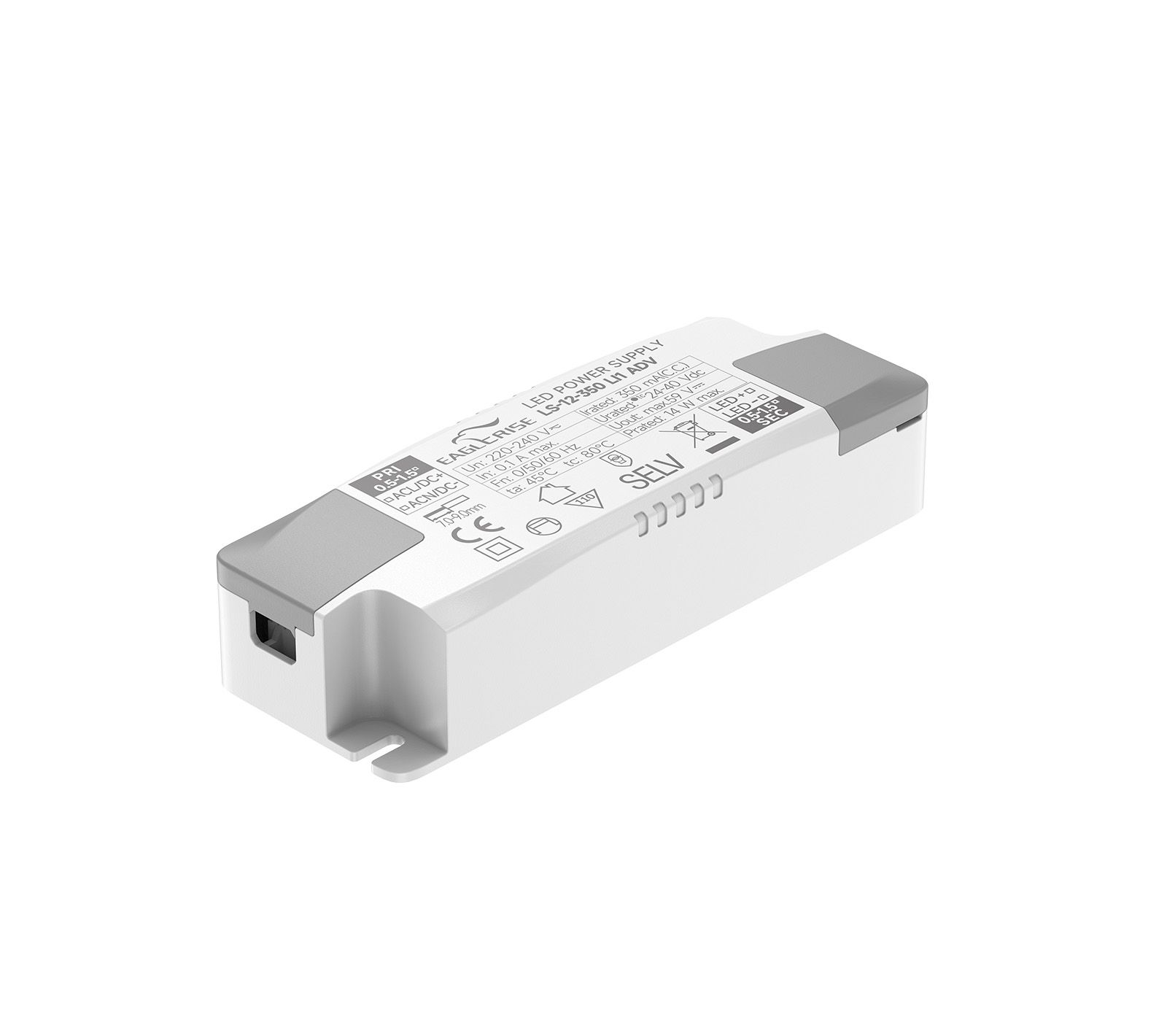

Product Image

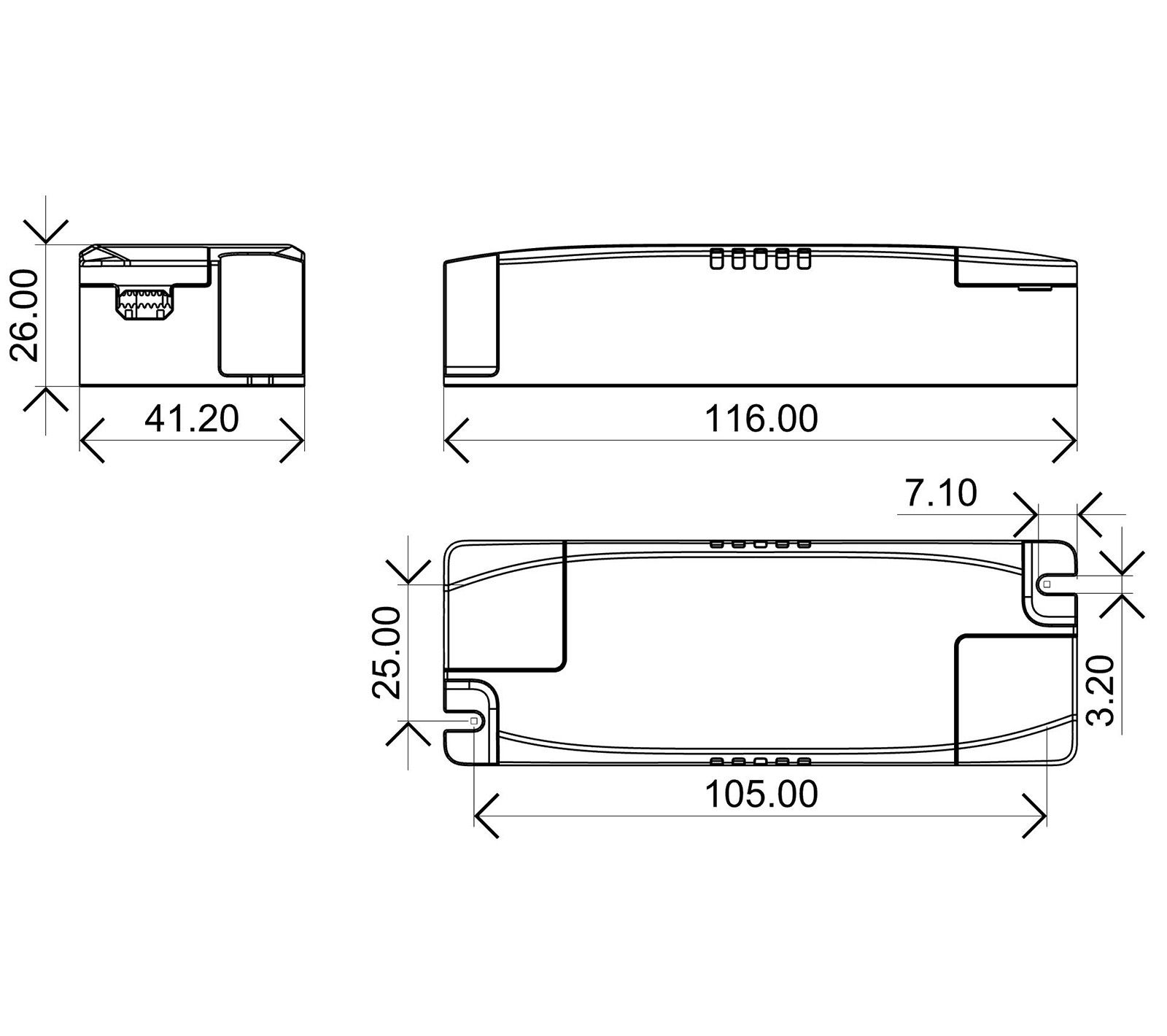

2D Line Drawing
Product Image
2D Line Drawing
12W | 200-350mA

LS-12-XXX LI1 ADV

Product Description:

· For luminaries of protection Class II，SELV， Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95(Typ.)

· Efficiency：≥92%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
LS-12-200 LI1 ADV12W220-240VAC200mA24-40V92%0.95116*41*26mm
LS-12-250 LI1 ADV12W220-240VAC250mA24-40V92%0.95116*41*26mm
LS-12-300 LI1 ADV12W220-240VAC300mA24-40V92%0.95116*41*26mm
LS-12-350 LI1 ADV12W220-240VAC350mA24-40V92%0.95116*41*26mm



LS-12-XXX LI1 ADV spec REV B
