8W | 150-500mA

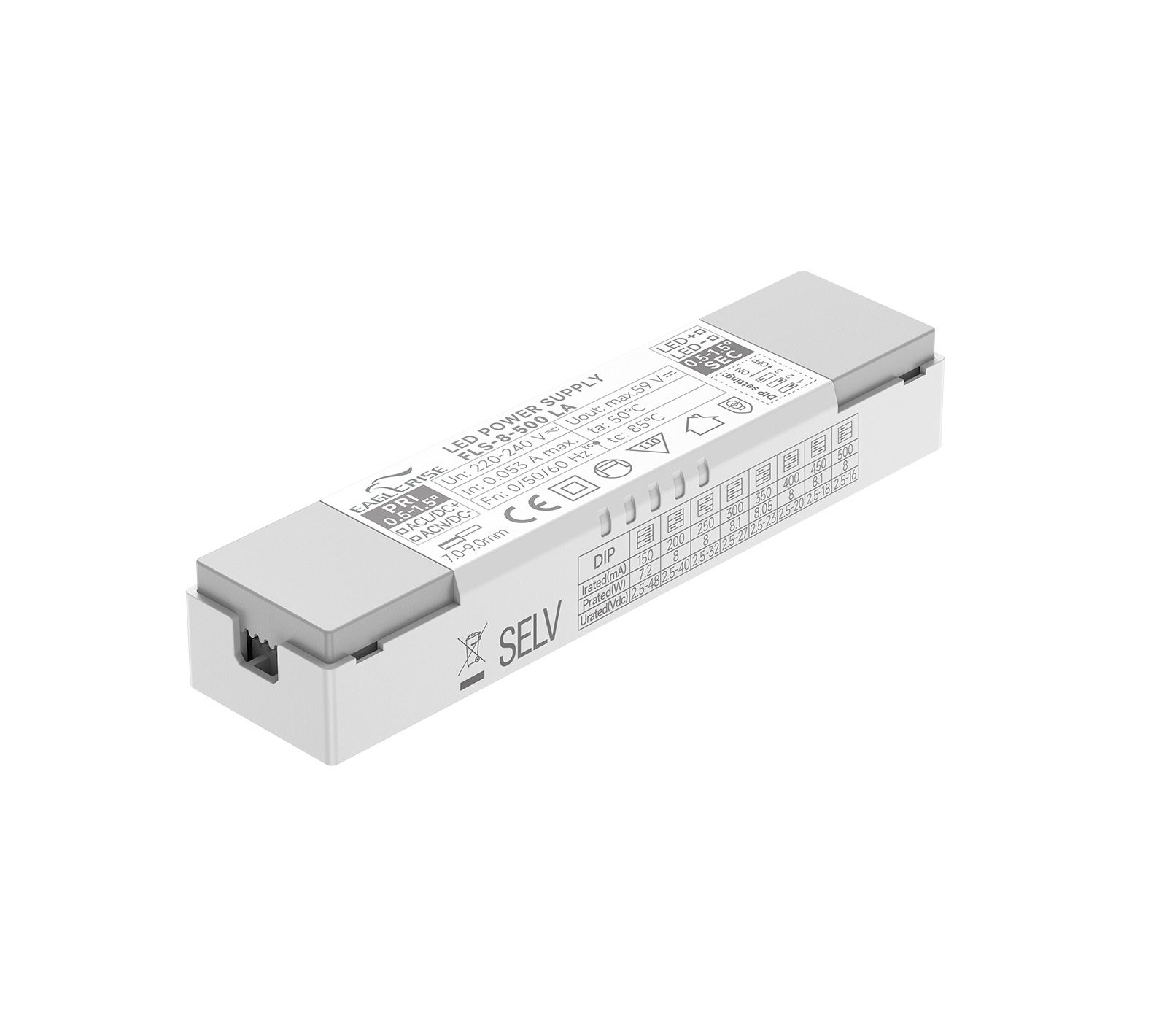

FLS-8-500 LA

Product Description:

· For luminaries of protection Class II, SELV, Independent

· Input Voltage: 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor: 0.9(Typ.)

· Efficiency: 82%(Typ.)

· Adjustable Output Current with dip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-8-500 LA8W220-240VAC150-500mA2.5-48VDC82%0.9115*30*20.5mm


FLS-8-500 LA spec REV B
