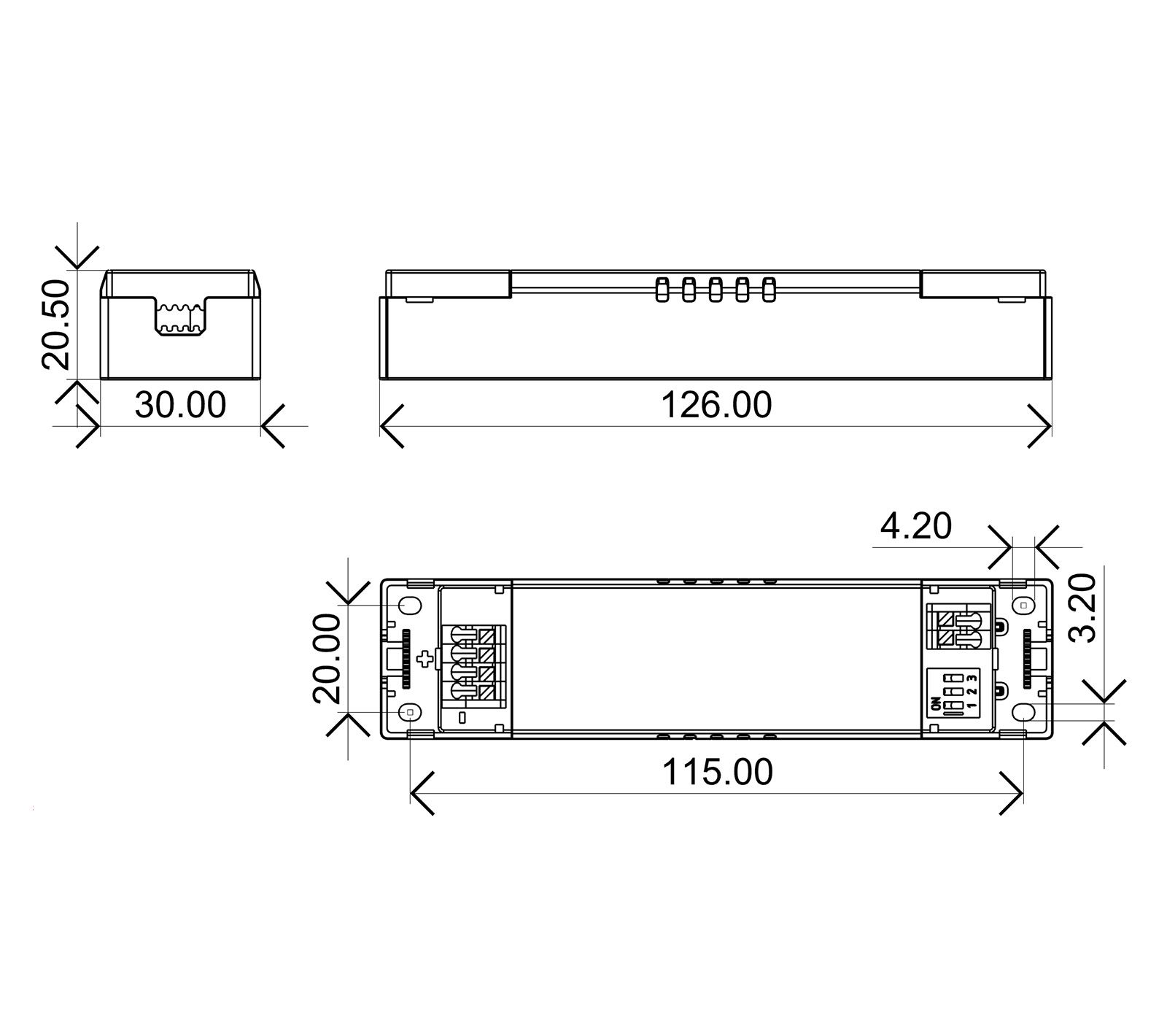

2D Line Drawing
Product Image
2D Line Drawing
18W | 550-1050mA

FLS-18-1050 LA

Product Description:

· For luminaries of protection Class II，SELV， Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：≥0.95(Typ.)

· Efficiency：≥85%(Typ.)

· Adjustable Output Current with dip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-18-1050 LA18W220-240VAC550-1050mA2.5-33VDC85%0.95115*30*20.5mm



FLS-18-1050 LA
