42W | 800-1050mA

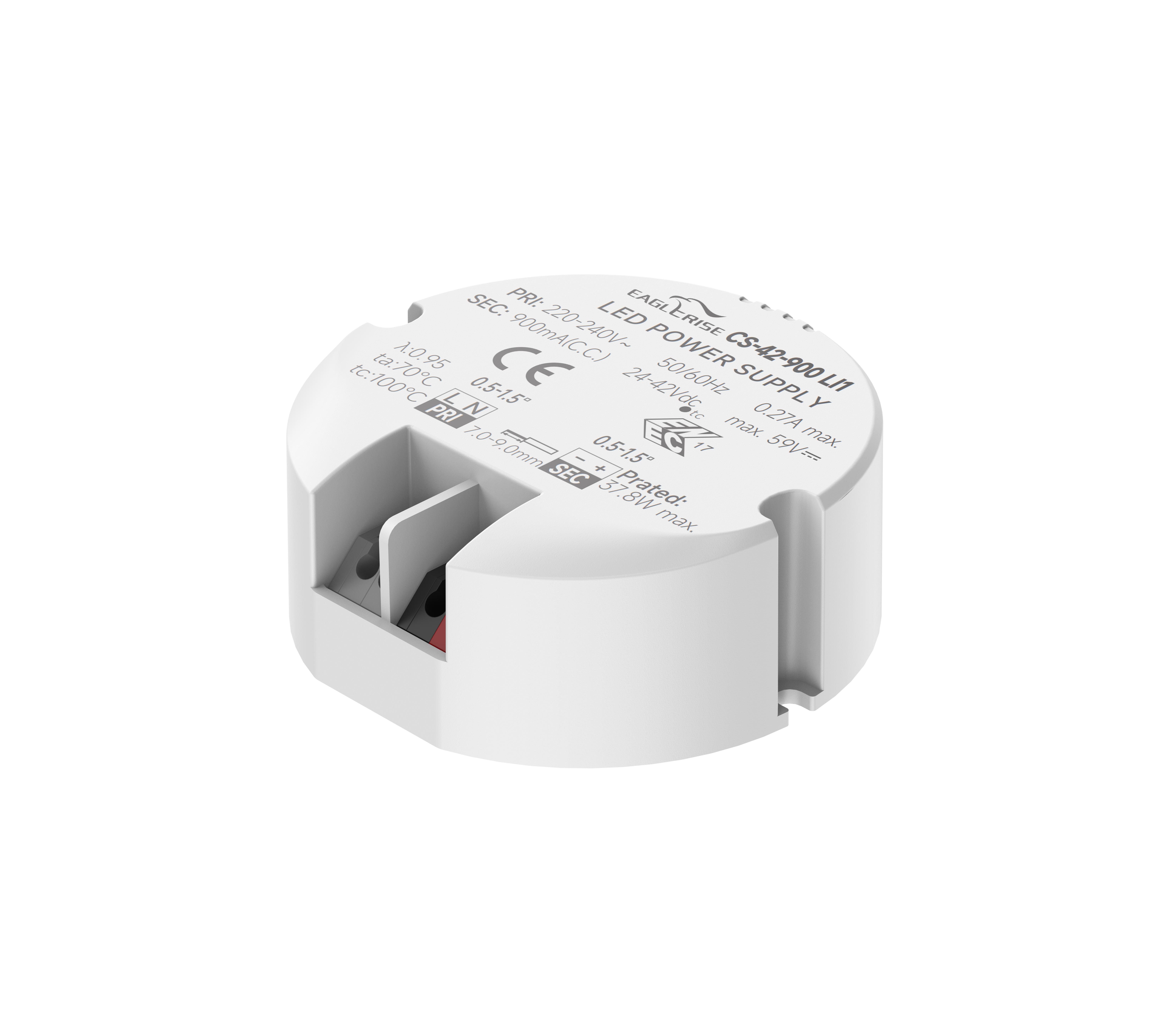

CS-42-XXX LI1

Product Description:

· For luminaries of protectionClassII，SELV，Built-in

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：90%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
CS-42-800 LI1	42W	220-240VAC	800mA	24-42V	90%	0.95	Φ65*25mm
CS-42-850 LI1	42W	220-240VAC	850mA	24-42V	90%	0.95	Φ65*25mm
CS-42-900 LI1	42W	220-240VAC	900mA	24-42V	90%	0.95	Φ65*25mm
CS-42-950 LI1	42W	220-240VAC	950mA	24-42V	90%	0.95	Φ65*25mm
CS-42-1000 LI1	42W	220-240VAC	1000mA	24-42V	90%	0.95	Φ65*25mm
CS-42-1050 LI1	42W	220-240VAC	1050mA	24-40V	90%	0.95	Φ65*25mm

CS-42-XXX LI1 spec REV B
