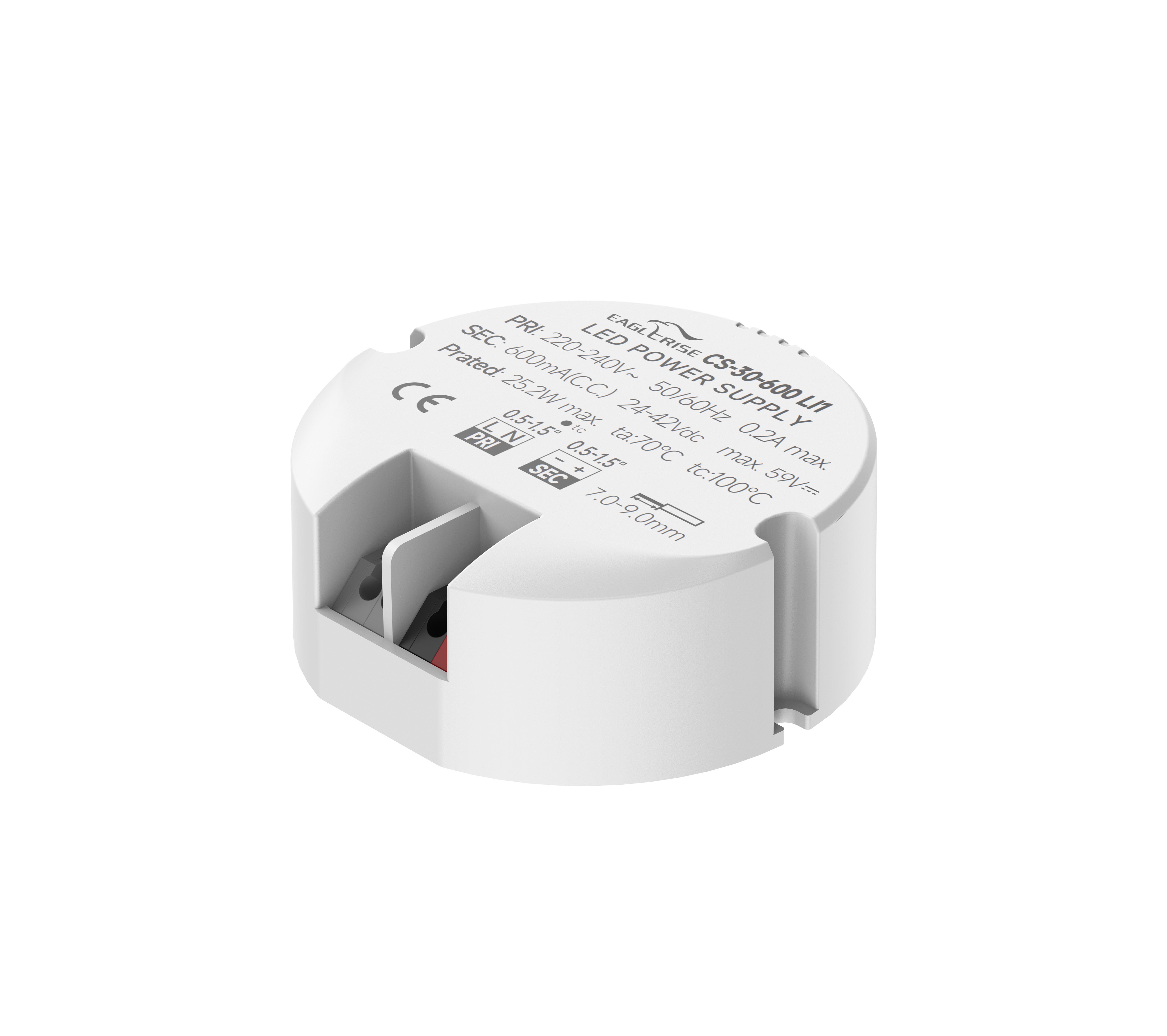

Product Image

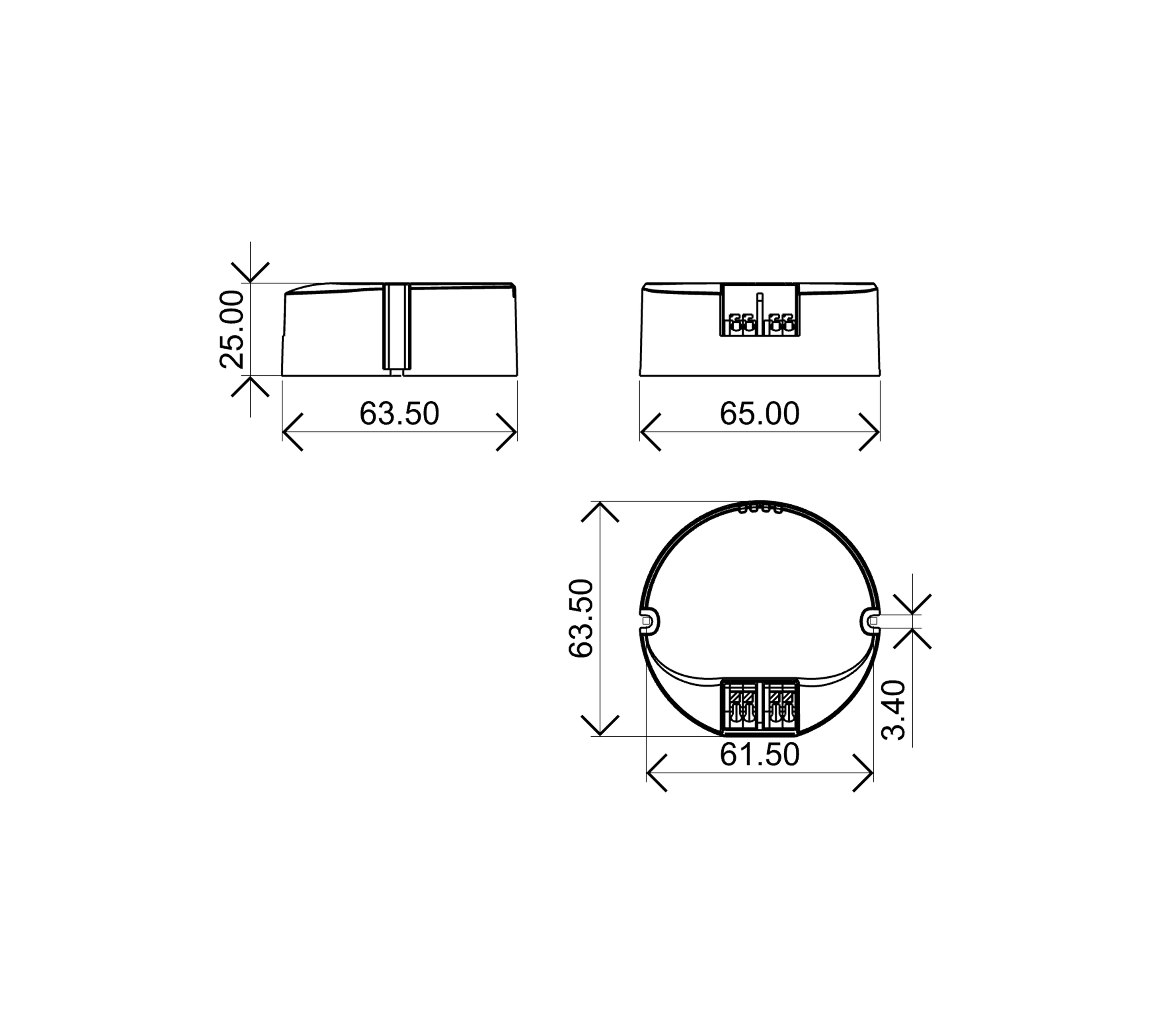

2D Line Drawing
Product Image
2D Line Drawing
30W | 600-750mA

CS-30-XXX LI1

Product Description:

· For luminaries of protection ClassII，SELV，Built-in

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：89%

· 5 years warranty

· IP20


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
CS-30-600 LI130W220-240VAC600mA20-42V89%0.95Φ65*25mm
CS-30-650 LI130W220-240VAC650mA20-42V89%0.95Φ65*25mm
CS-30-700 LI130W220-240VAC700mA20-42V89%0.95Φ65*25mm
CS-30-750 LI130W220-240VAC750mA24-40V89%0.95Φ65*25mm



CS-30-XXX LI1 spec REV C
