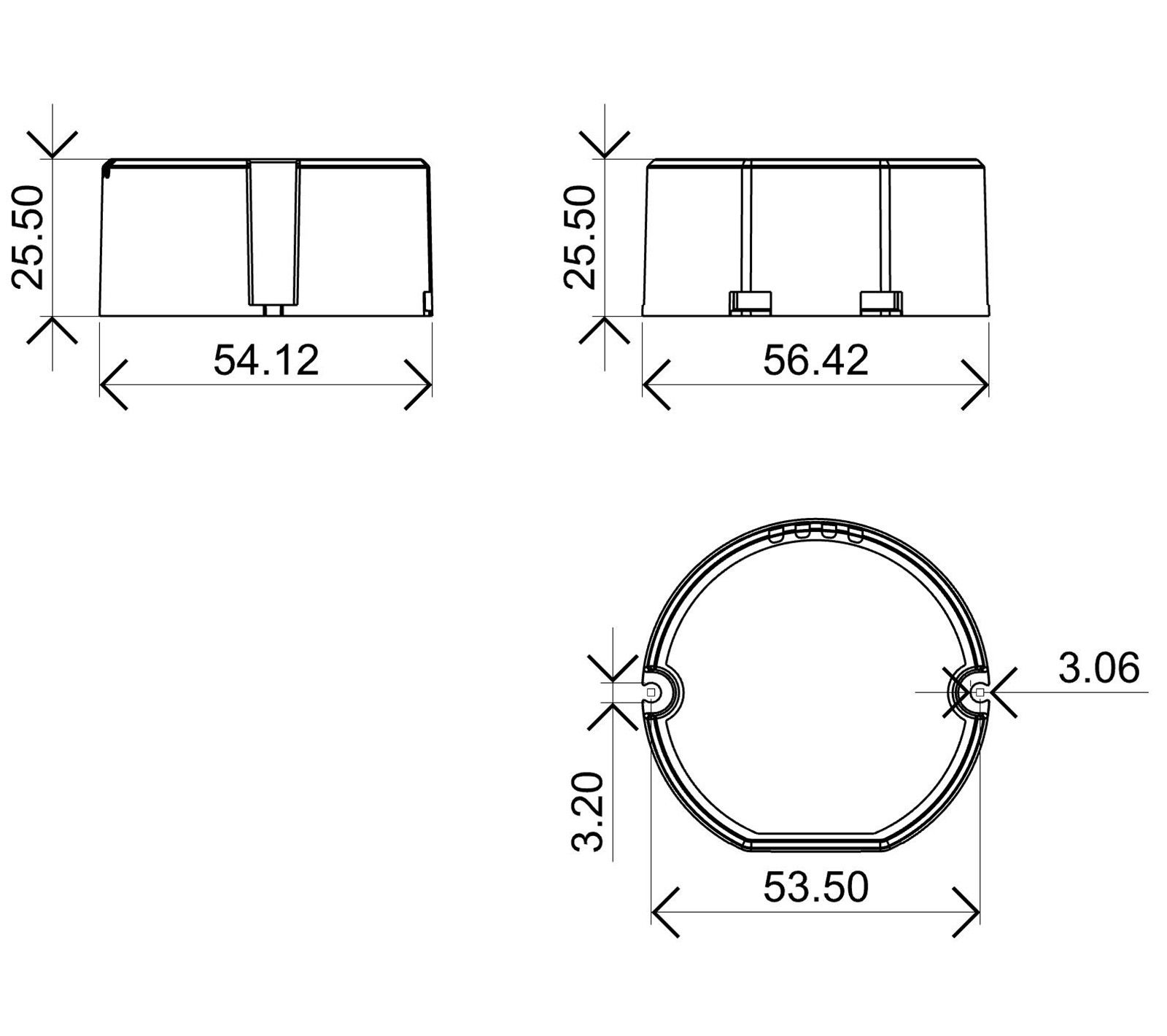

2D Line Drawing

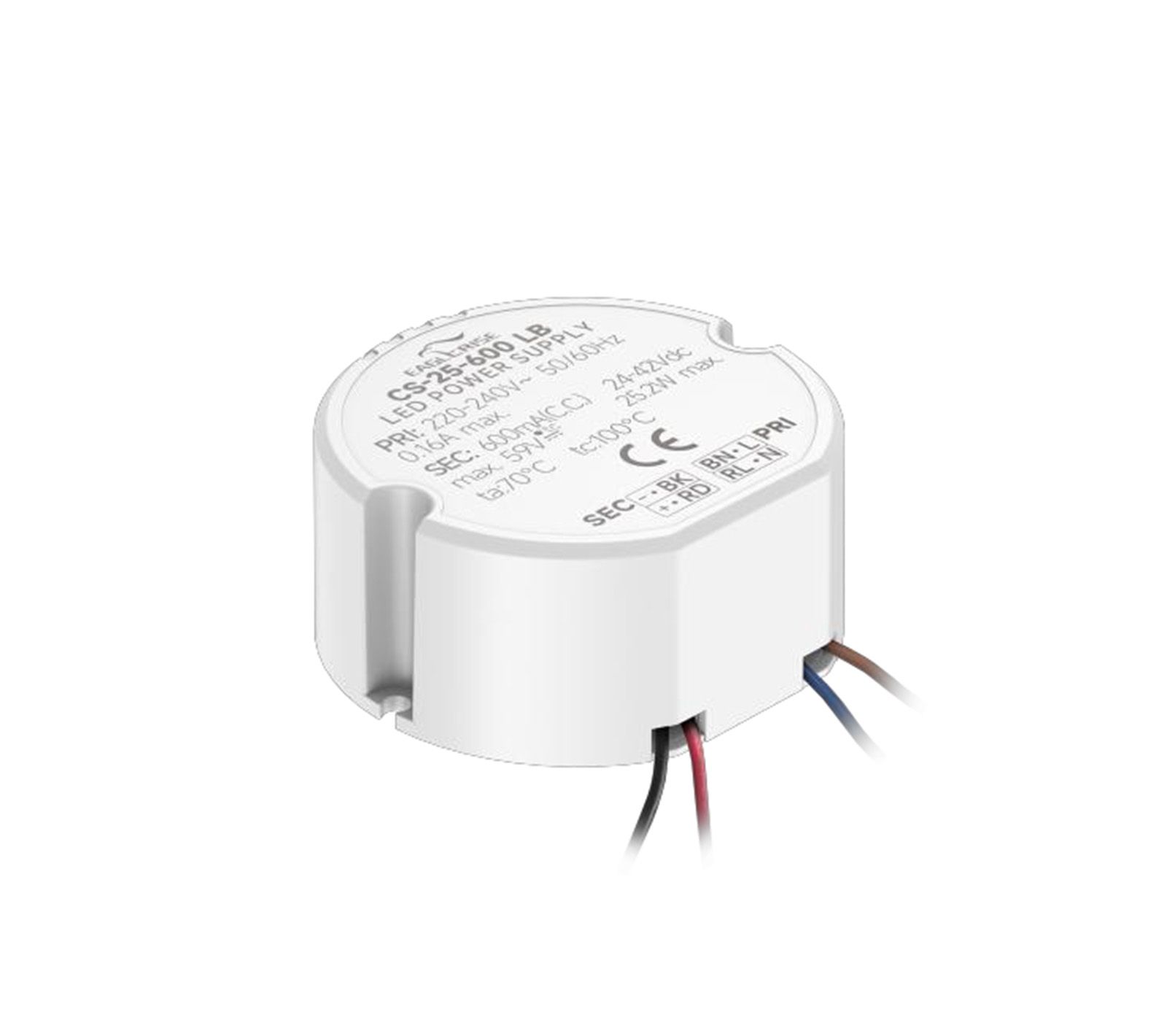

Product Image

2D Line Drawing

25W | 450-600mA

CS-25-XXX LB

Product Description:

· Class II，SELV，Built-in

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.95

· Efficiency：≥88%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

3D Outline

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
CS-25-450 LB	25W	220-240VAC	450mA	24-42V	87%	0.95	Φ56.5*25.5mm
CS-25-500 LB	25W	220-240VAC	500mA	24-42V	87%	0.95	Φ56.5*25.5mm
CS-25-550 LB	25W	220-240VAC	550mA	24-42V	88%	0.95	Φ56.5*25.5mm
CS-25-600 LB	25W	220-240VAC	600mA	24-42V	88%	0.95	Φ56.5*25.5mm

CS-25-XXX LB spec REV A

Download All Files

CS-25-XXX LB 3D Outline

Related Products

32W | 650-800mA

CS-32-XXX LB

New

8W | 100-220mA

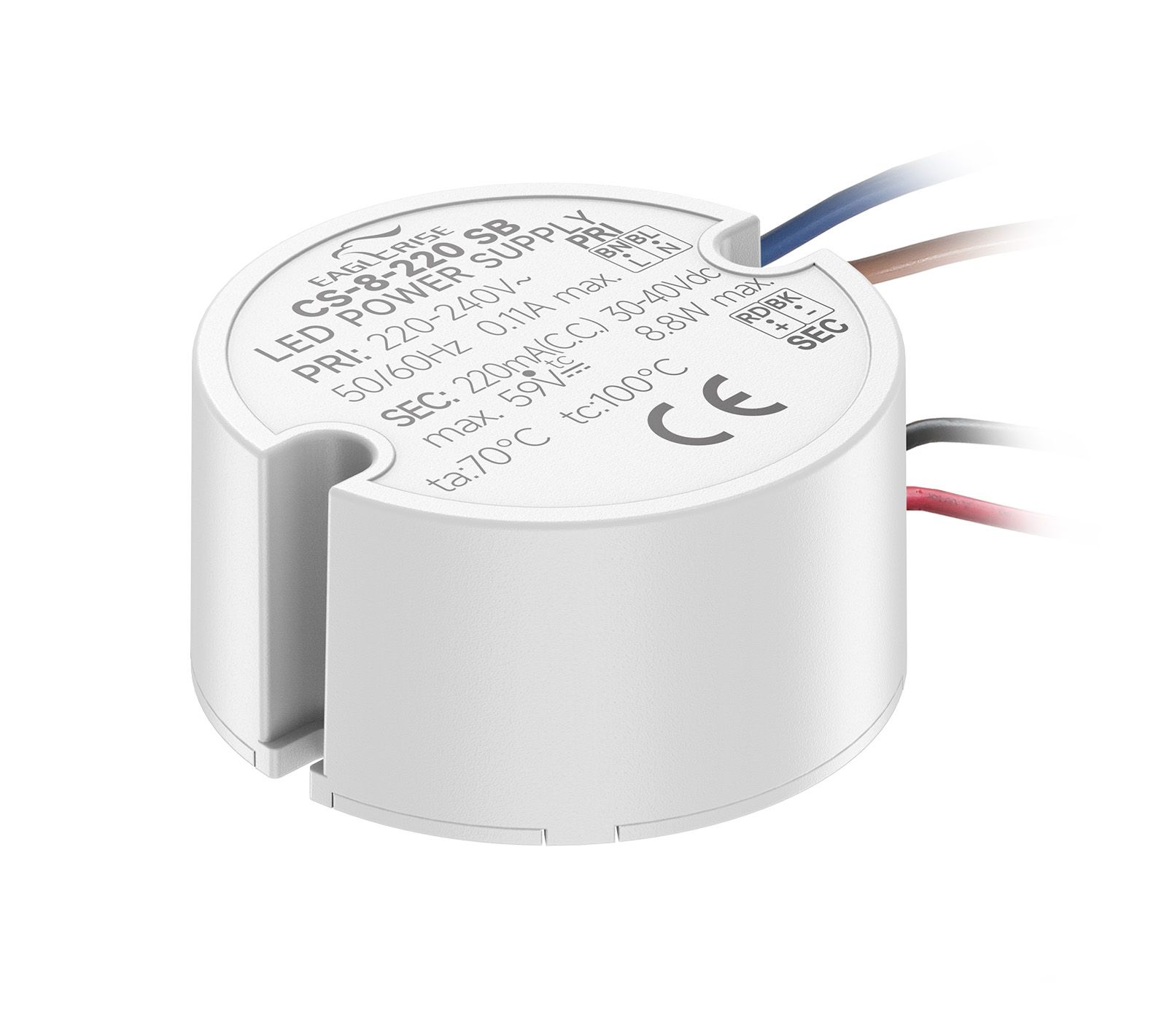

CS-8-XXX SB
