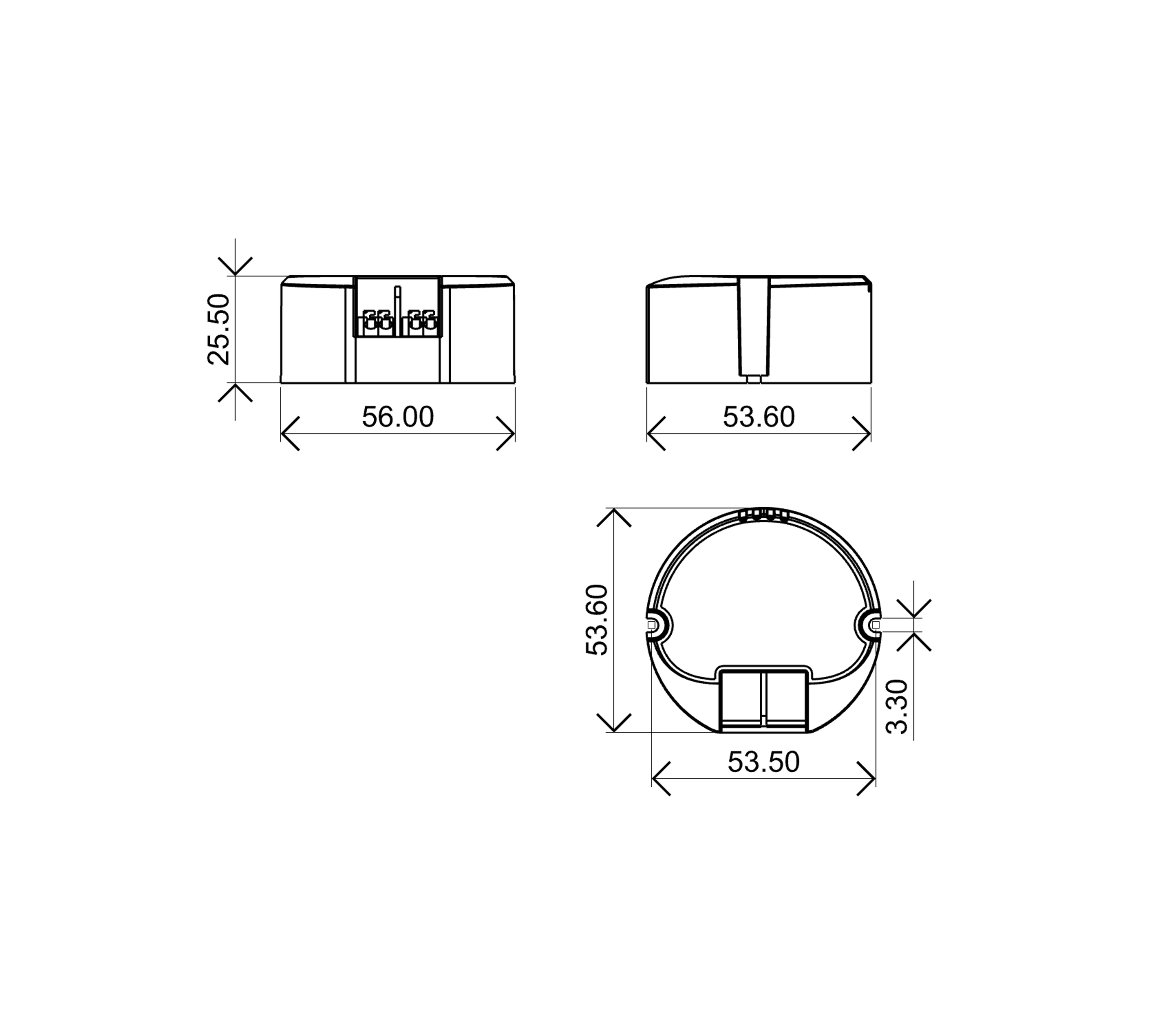

2D Line Drawing
Product Image
2D Line Drawing
24W | 450-600mA

CS-24-XXX LI1

Product Description:

· For luminaries of protectionClassII，SELV，Built-in

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：88%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
CS-24-450 LI124W220-240VAC450mA24-42V87%0.95Φ56*25.5mm
CS-24-500 LI124W220-240VAC500mA24-42V87%0.95Φ56*25.5mm
CS-24-550 LI124W220-240VAC550mA24-42V88%0.95Φ56*25.5mm
CS-24-600 LI124W220-240VAC600mA24-42V88%0.95Φ56*25.5mm



CS-24-XXX LI1 spec REV A
