40W | 800-1050mA

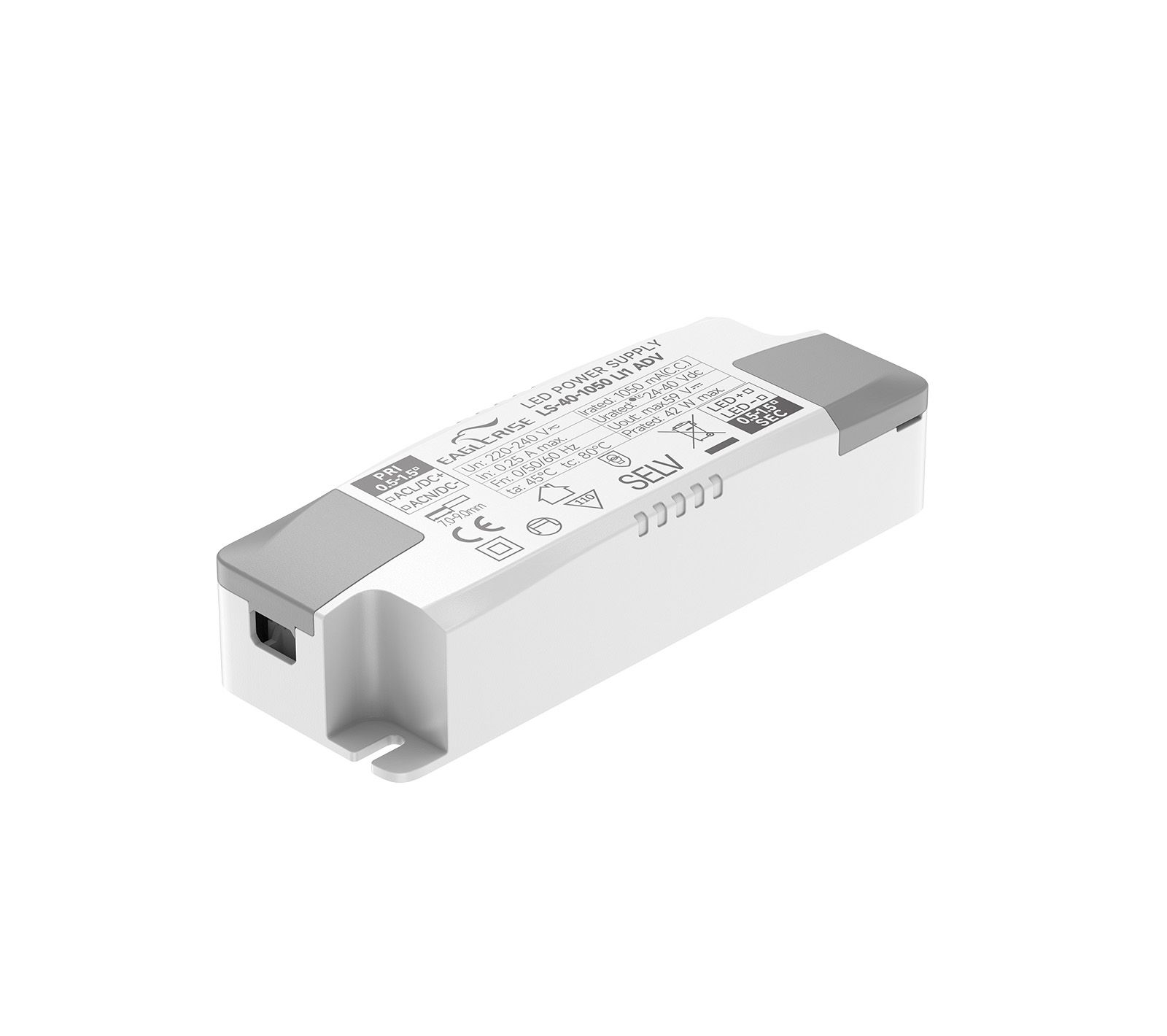

LS-40-XXX LI1 ADV

Product Description:

· For luminaries of protection Class II，SELV， Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：≥0.95(Typ.)

· Efficiency：≥93%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
LS-40-800 LI1 ADV40W220-240VAC800mA24-40V93%0.95116*41*26mm
LS-40-850 LI1 ADV40W220-240VAC850mA24-40V93%0.95116*41*26mm
LS-40-900 LI1 ADV40W220-240VAC900mA24-40V93%0.95116*41*26mm
LS-40-950 LI1 ADV40W220-240VAC950mA24-40V93%0.95116*41*26mm
LS-40-1000 LI1 ADV40W220-240VAC1000mA24-40V93%0.95116*41*26mm
LS-40-1050 LI1 ADV40W220-240VAC1050mA24-40V93%0.95116*41*26mm


LS-40-XXX LI1 ADV spec REV B
