Home / Products / Compact Drivers / ON/OFF / High eff. / FLS-40-1050 LD1 ADV

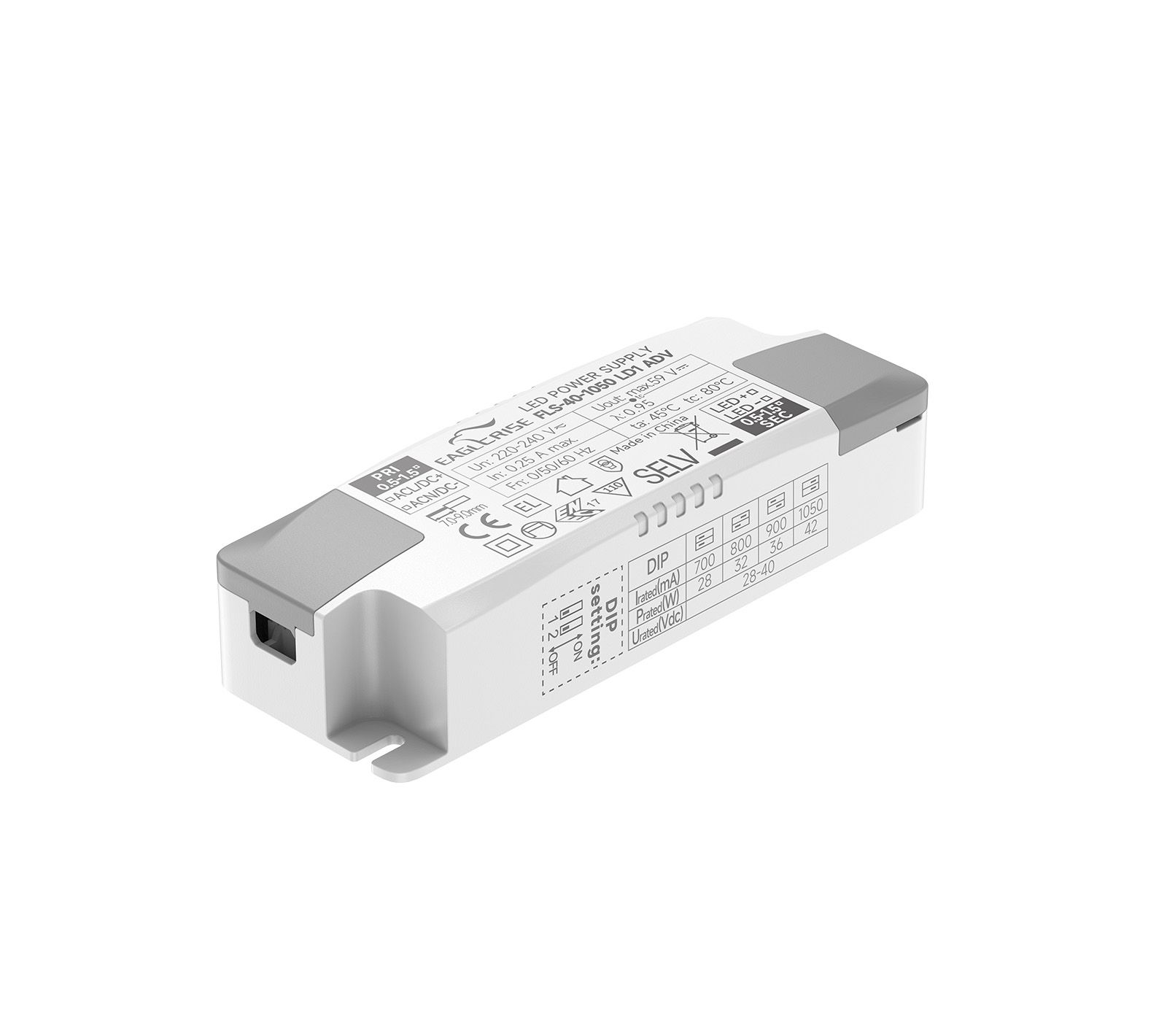

Product Image
2D Line Drawing
Product Image
2D Line Drawing

FLS-40-1050 LD1 ADV

Product Description:

· For luminaries of protection Class II，SELV， Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95(Typ.)

· Efficiency：≥94%(Typ.)

· Adjustable Output Current with dip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-40-1050 LD1 ADV40W220-240VAC700-1050mA28-40V94%0.95116*41*26mm


FLS-40-1050 LD1 ADV spec REV A
