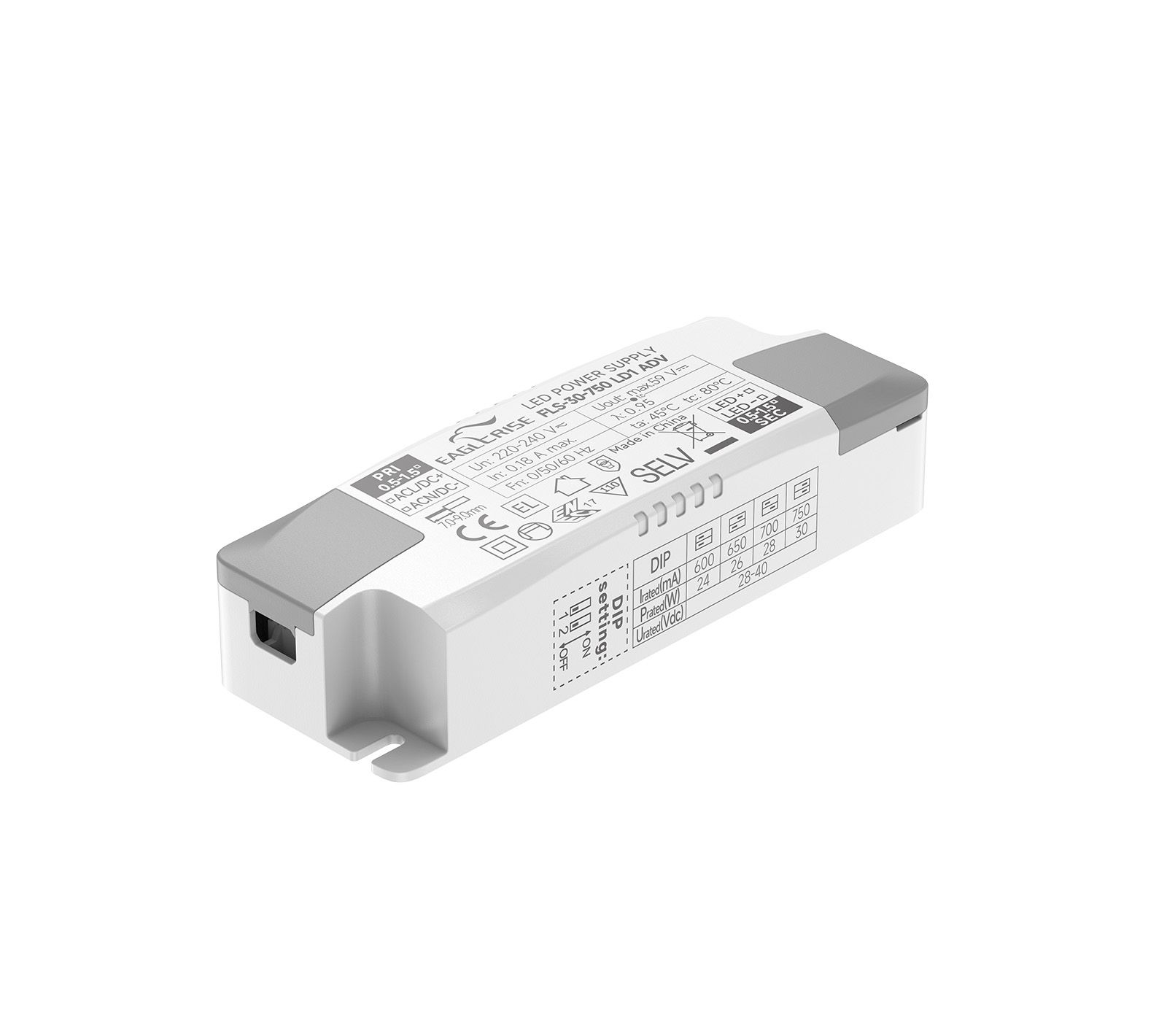

Product Image

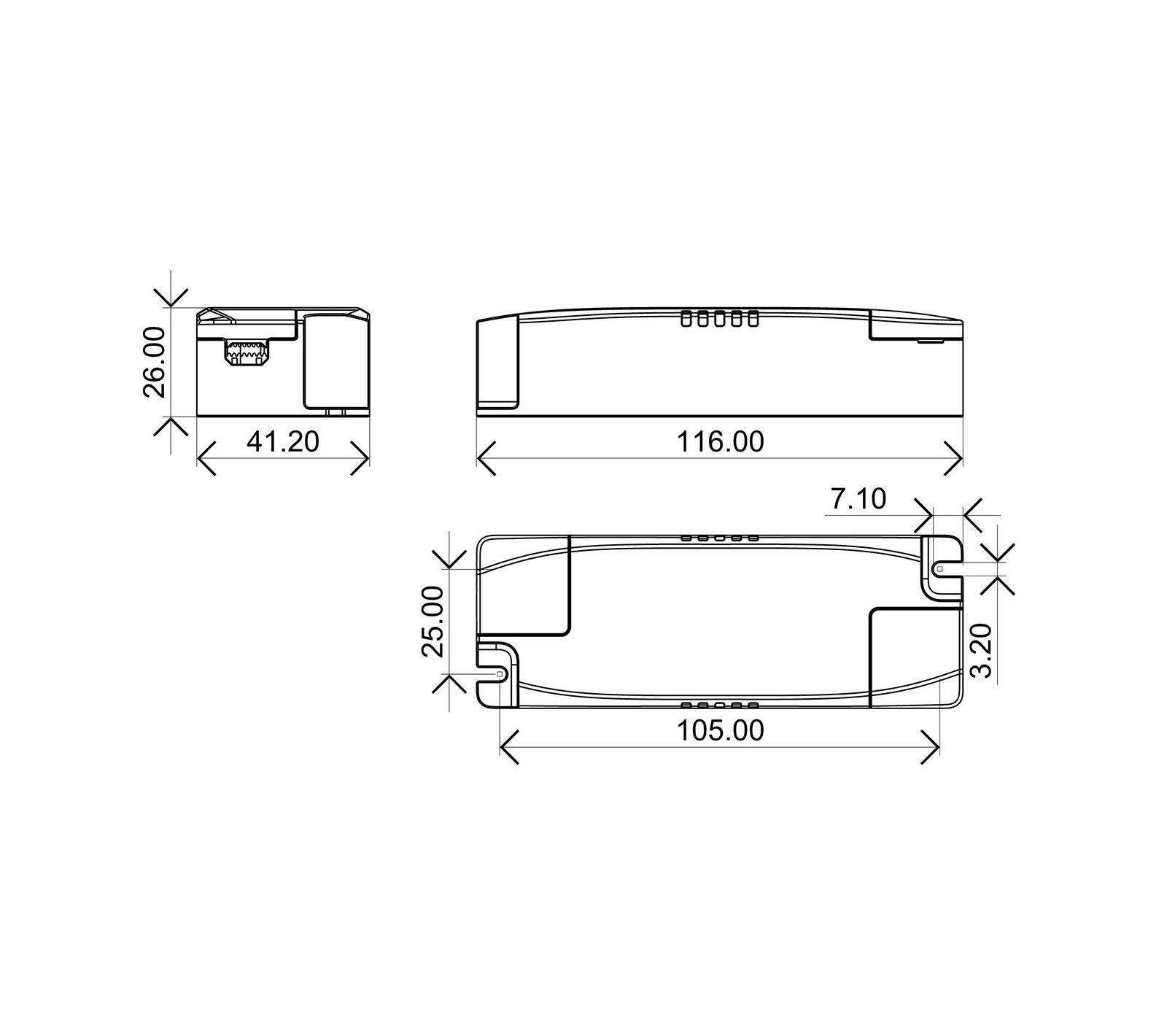

2D Line Drawing
Product Image
2D Line Drawing
30W | 600-750mA

FLS-30-750 LD1 ADV

Product Description:

· For luminaries of protection Class II，SELV， Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：≥0.95(Typ.)

· Efficiency：≥94%(Typ.)

· Adjustable Output Current with dip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-30-600 LD1 ADV30W220-240VAC600mA28-40V94%0.95116*41*26mm
FLS-30-650 LD1 ADV30W220-240VAC650mA28-40V94%0.95116*41*26mm
FLS-30-700 LD1 ADV30W220-240VAC700mA28-40V94%0.95116*41*26mm
FLS-30-750 LD1 ADV30W220-240VAC750mA28-40V94%0.95116*41*26mm
FLS-30-750 LD1 ADV spec REV A
Download All Files
