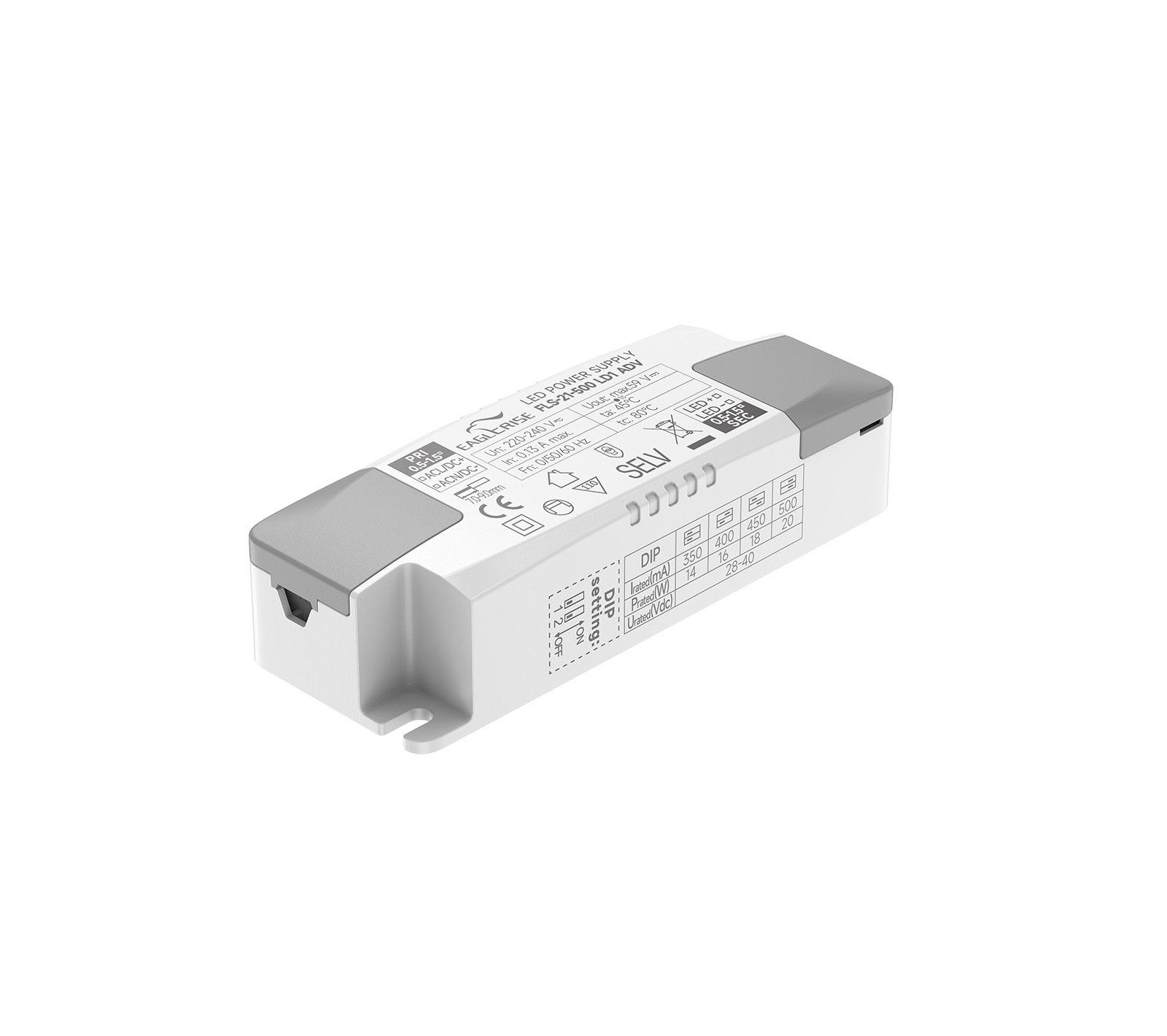

Product Image

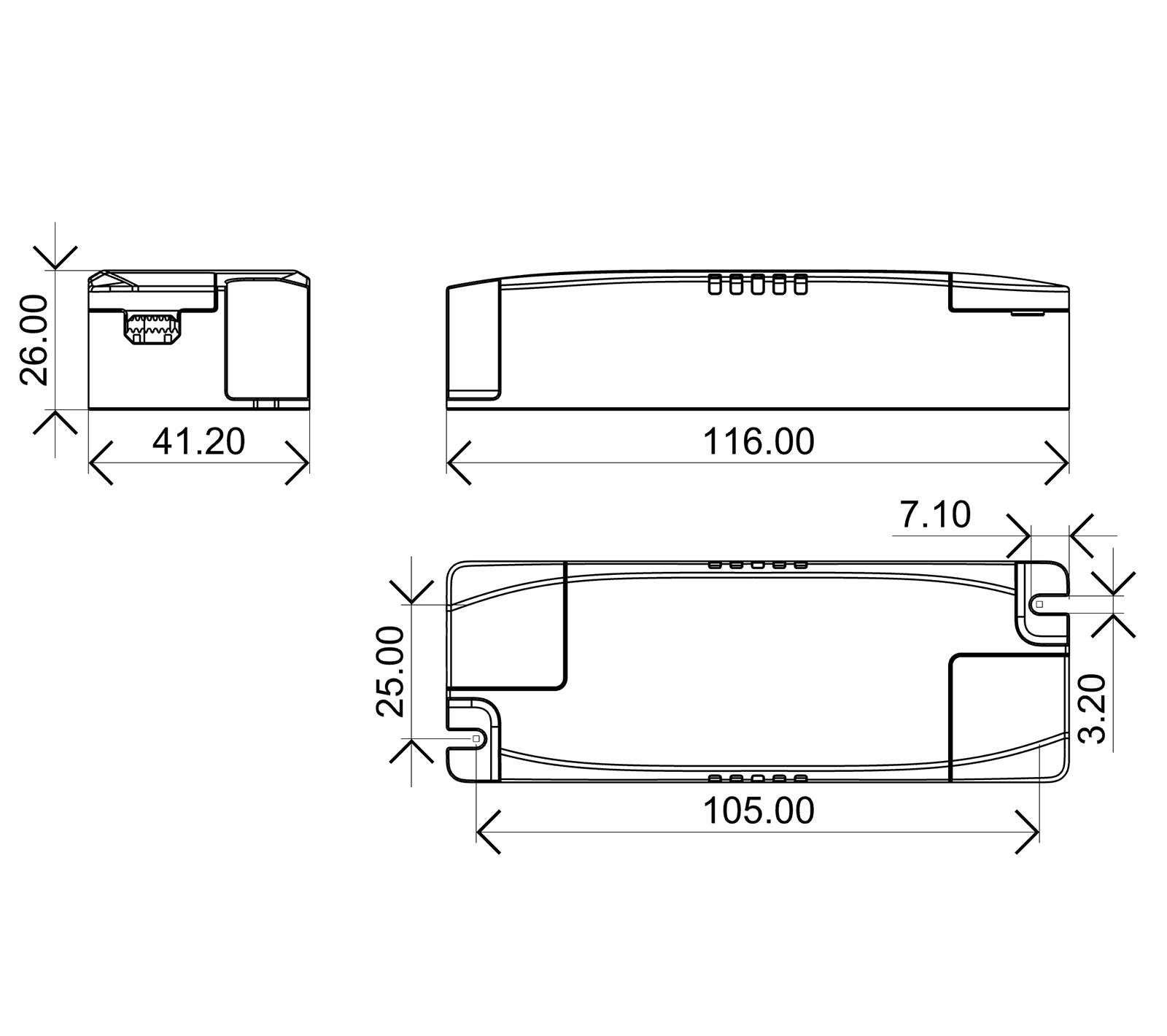

2D Line Drawing
Product Image
2D Line Drawing
21W | 350-500mA

FLS-21-500 LD1 ADV

Product Description:

· For luminaries of protection Class II，SELV， Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95(Typ.)

· Efficiency：≥93%(Typ.)

· Adjustable Output Current with dip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-21-500 LD1 ADV21W220-240VAC350-500mA28-40V93%0.95116*41*26mm


FLS-21-500 LD1 ADV spec REV A
Download All Files
