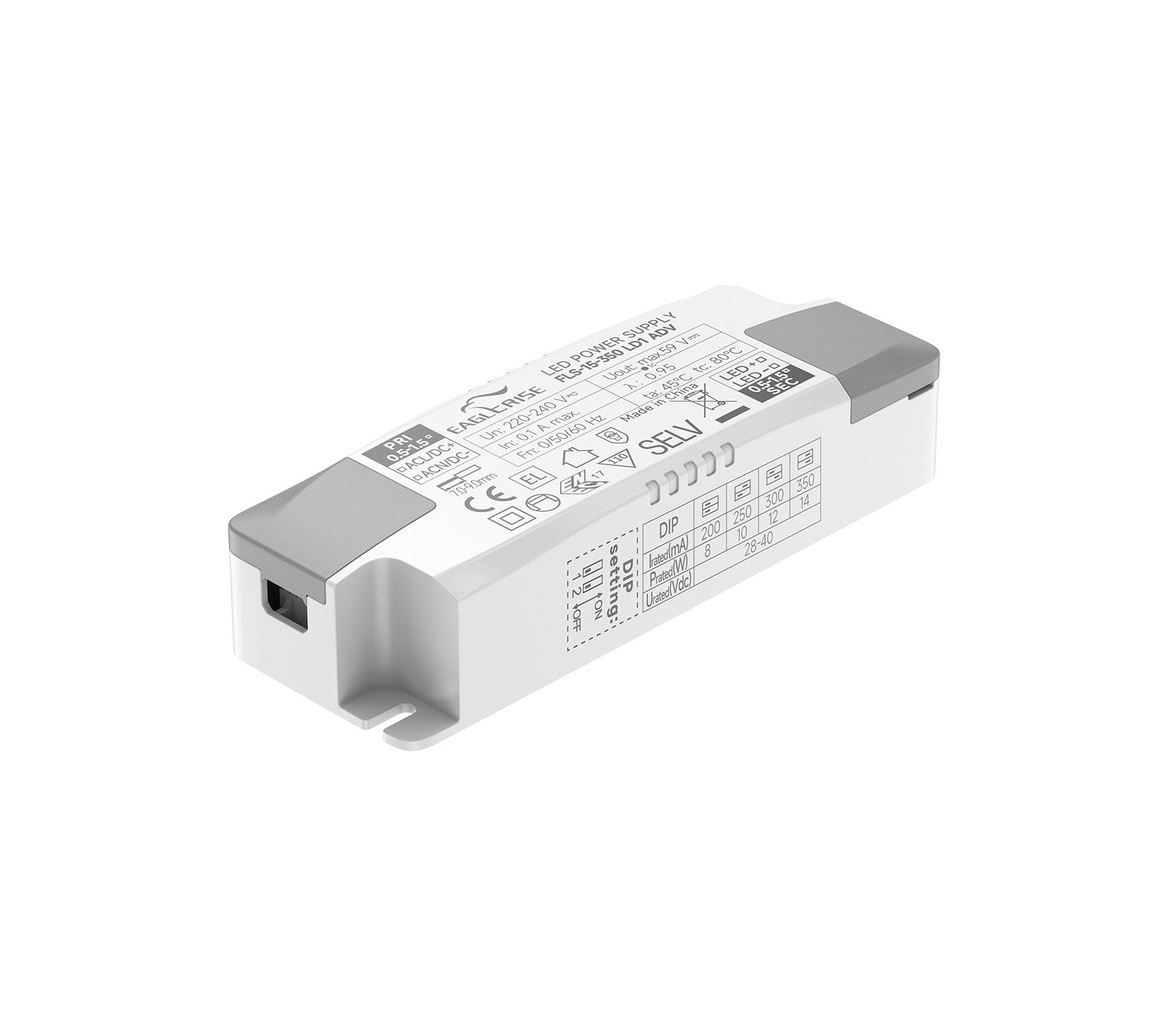

Product Image

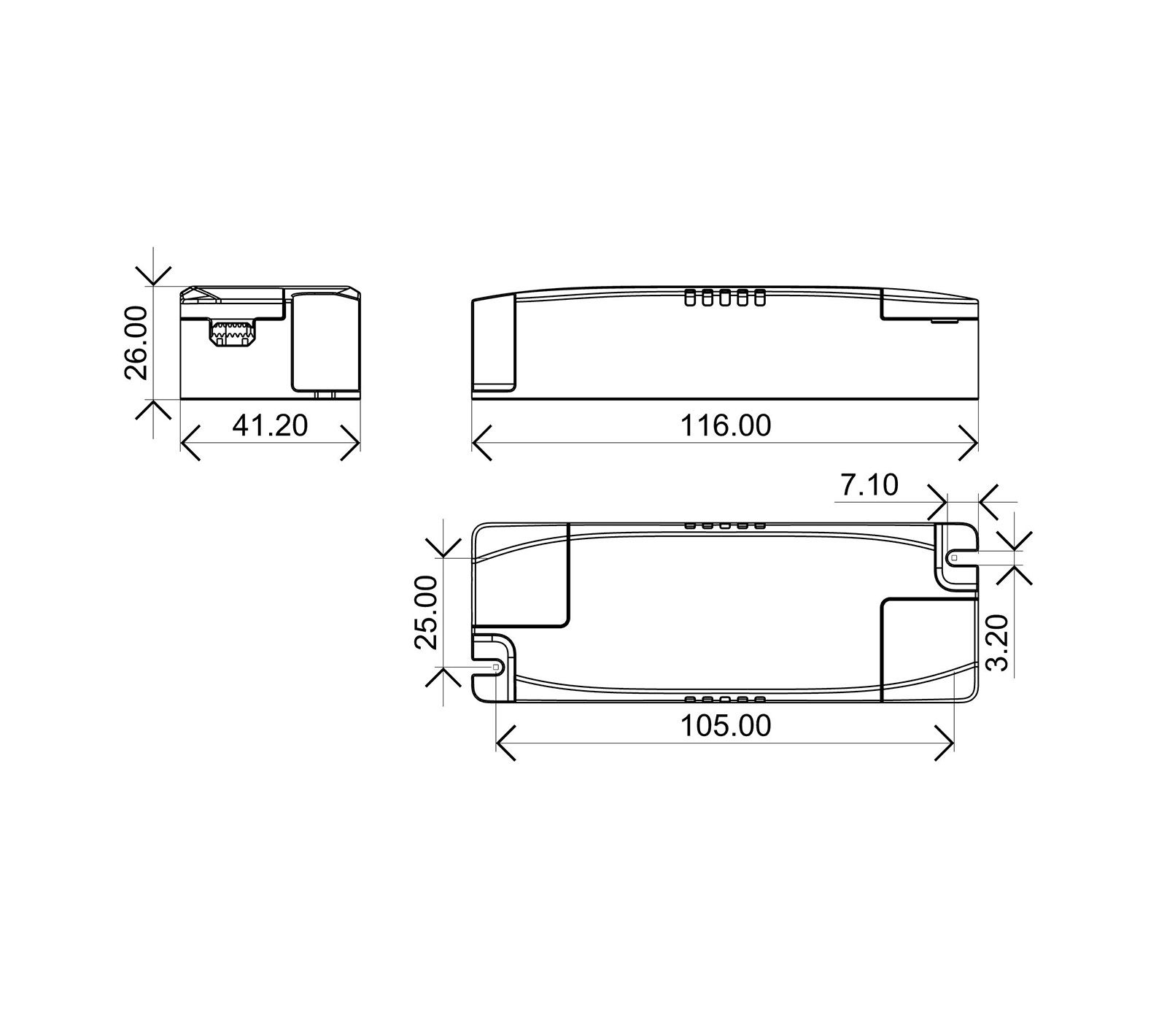

2D Line Drawing
Product Image
2D Line Drawing
15W | 200-350mA

FLS-15-350 LD1 ADV

Product Description:

· For luminaries of protection Class II，SELV， Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95(Typ.)

· Efficiency：≥92%(Typ.)

· Adjustable Output Current with dip-switch

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-15-200 LD1 ADV15W220-240VAC200-350mA28-40V92%0.95116*41*26mm
FLS-15-350 LD1 ADV spec REV A
Download All Files
