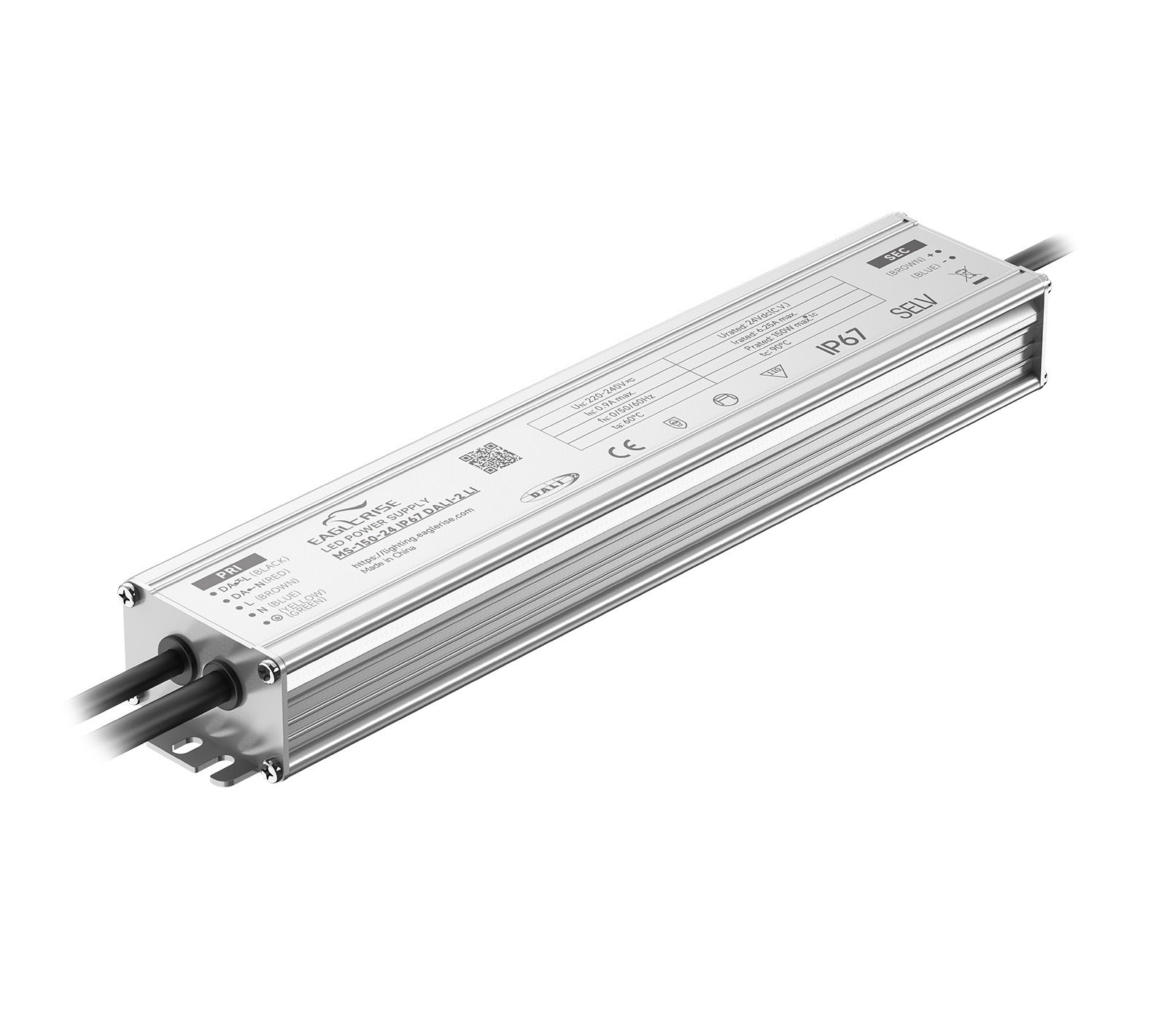

Product Image

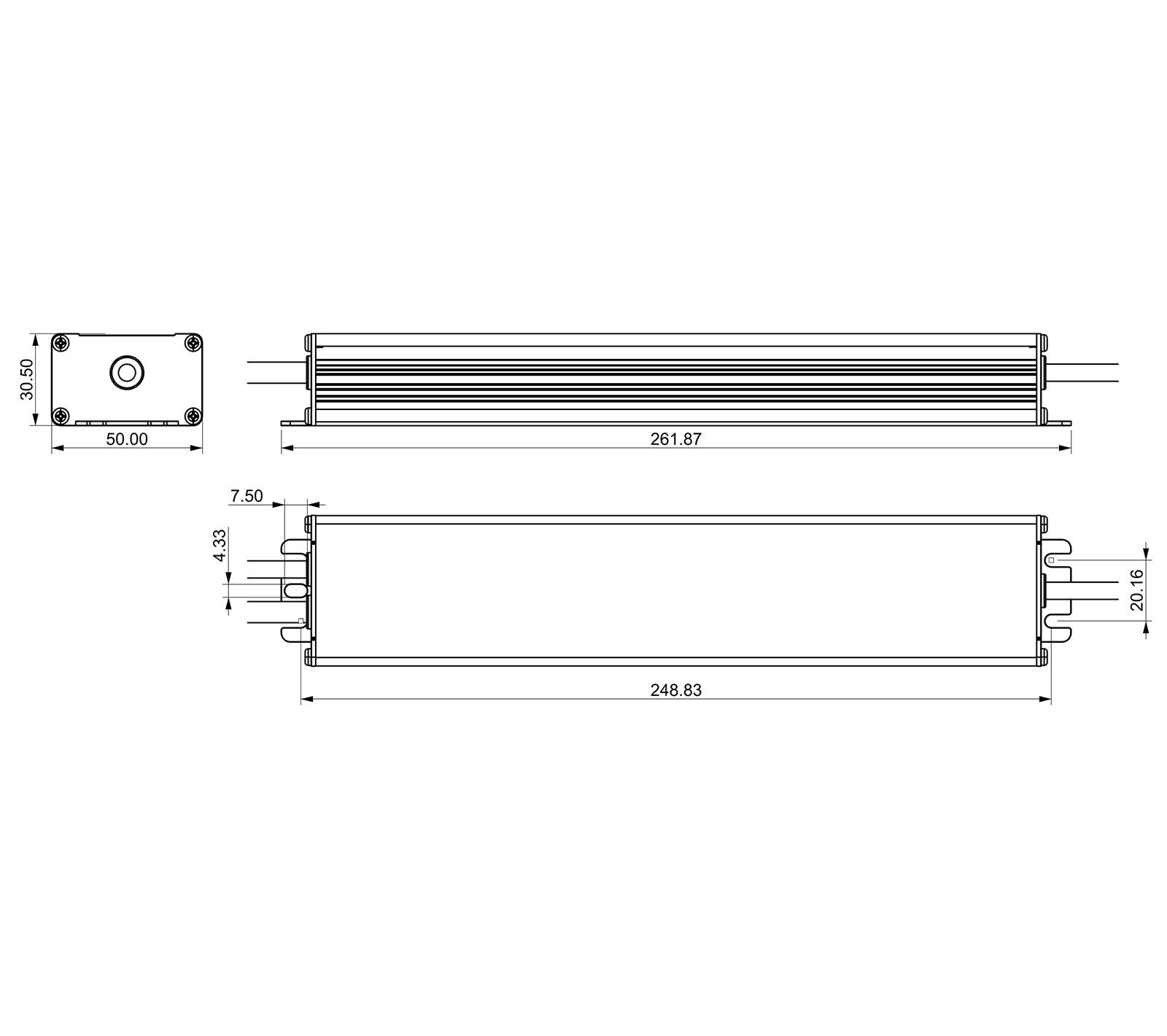

2D Line Drawing
Product Image
2D Line Drawing
150W | 24V

MS-150-24 IP67 DALI-2 LI

Product Description:

· For luminaries of protection Class I,SELV, Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OTP

· Power Factor:≥0.95(Typ.)

· Efficiency:≥90%(Typ.)

· 5 years warranty

· IP67

Click to Expand
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
MS-150-24 IP67 DALI-2 LI150W220-240VAC0-6.25A24V90%0.95262*50*30.5mm
