DALI-DT8
DALI-DT8
Home / Products / Eaglerise LED Drivers / CV Drivers / Intelligent / DALI-DT8 / LS-45-24 DALI-2 DT8 LN ADV

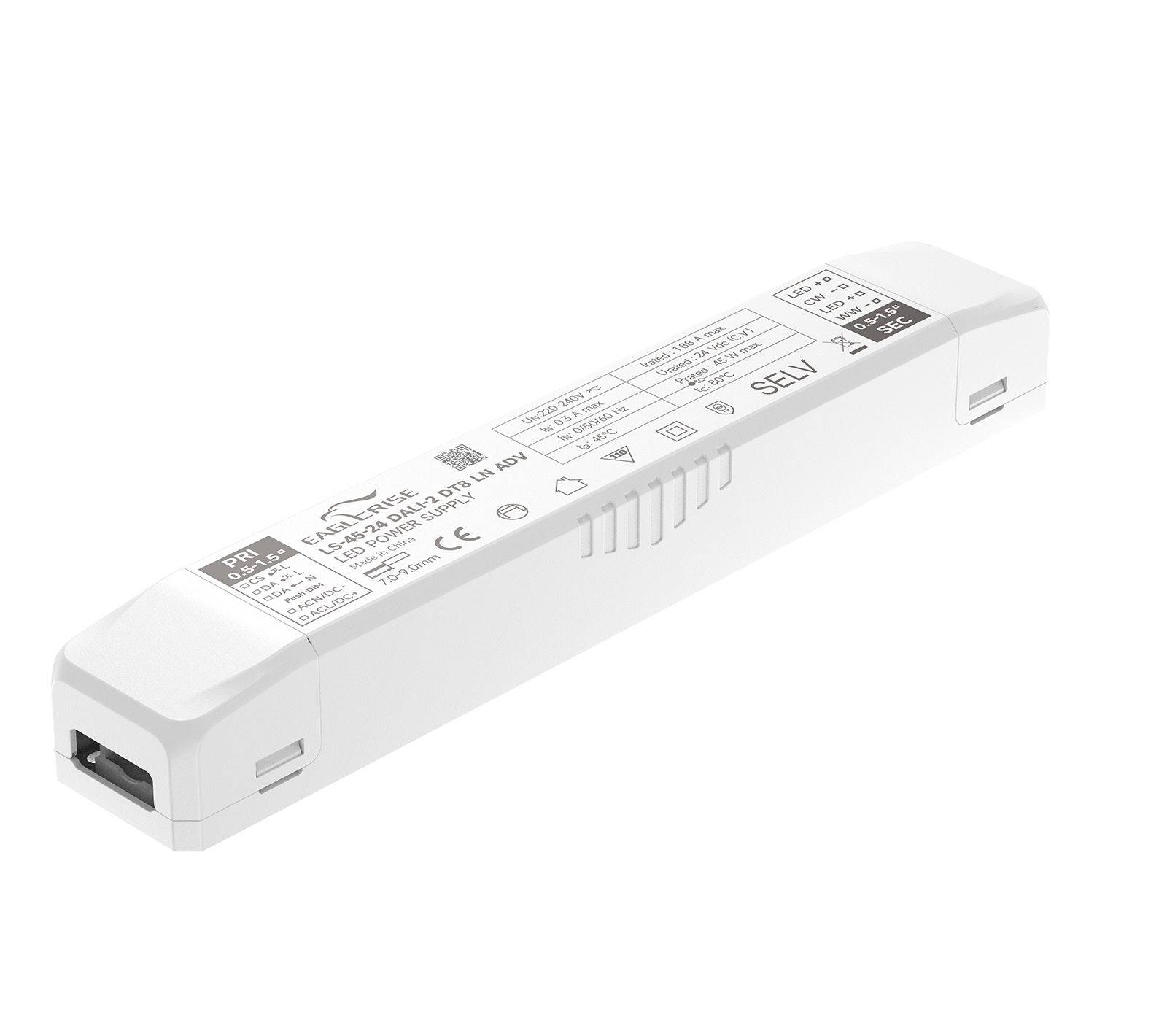

Product Image

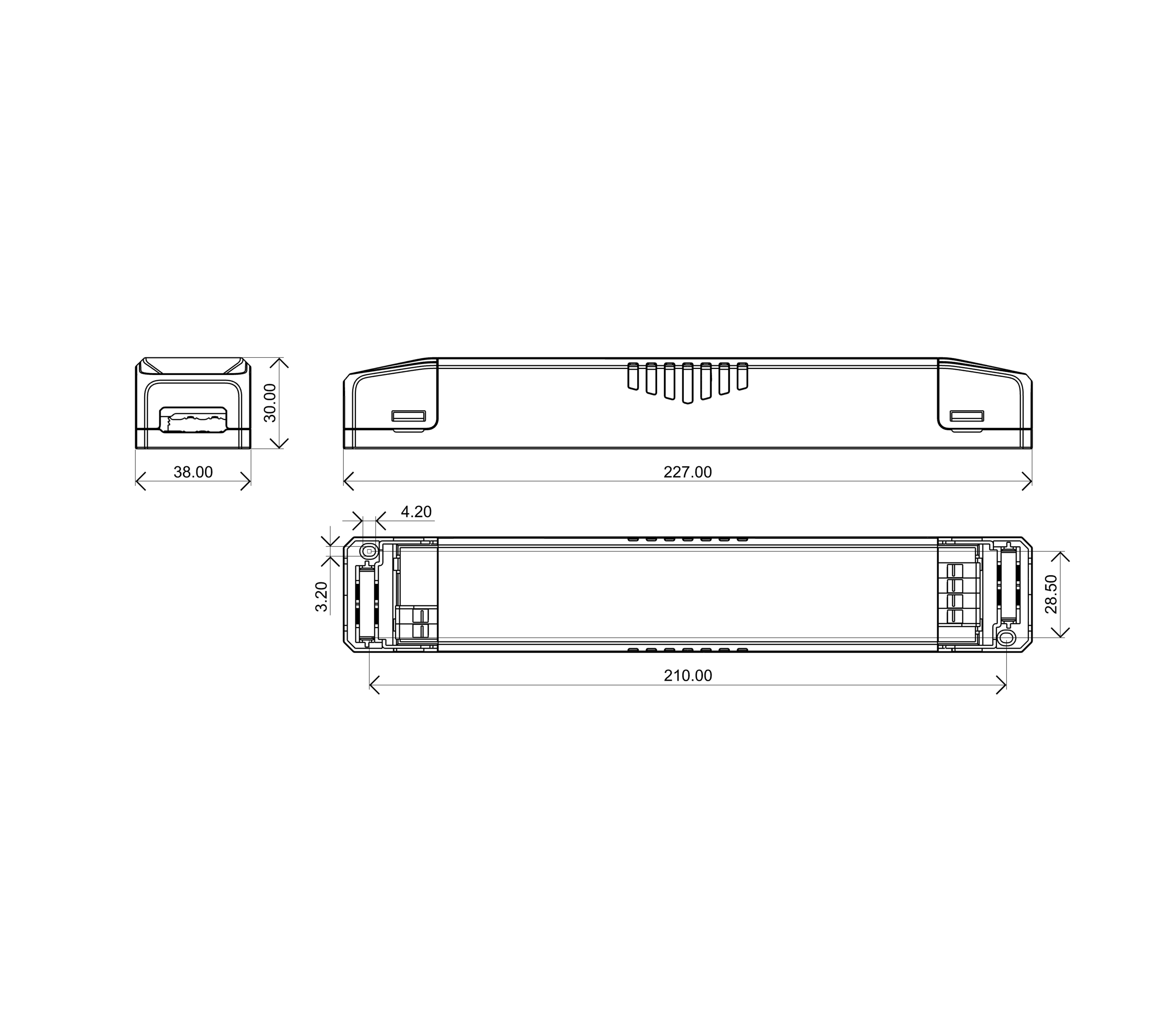

2D Line Drawing
Product Image
2D Line Drawing
45W | 24V

LS-45-24 DALI-2 DT8 LN ADV

Product Description:

· For luminaries of protection Class II，SELV，Independent
· Input Voltage: 220-240V
· Protections: SCP/OLP/OVP/OTP
· Power Factor: 0.95
· Efficiency: ≥89%
· EOFI=15%
· 5 years warranty
· Support DT8＆DT6, Push Dimming
· DALI maintainace(Part 251,252,253,209)
· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-45-24 DALI-2 DT8 LN ADV45W220-240VAC0-1.875A24V89%0.95227*38*30mm


LS-45-24 DALI-2 DT8 LN ADV spec REV B
