DALI-2
DALI-2

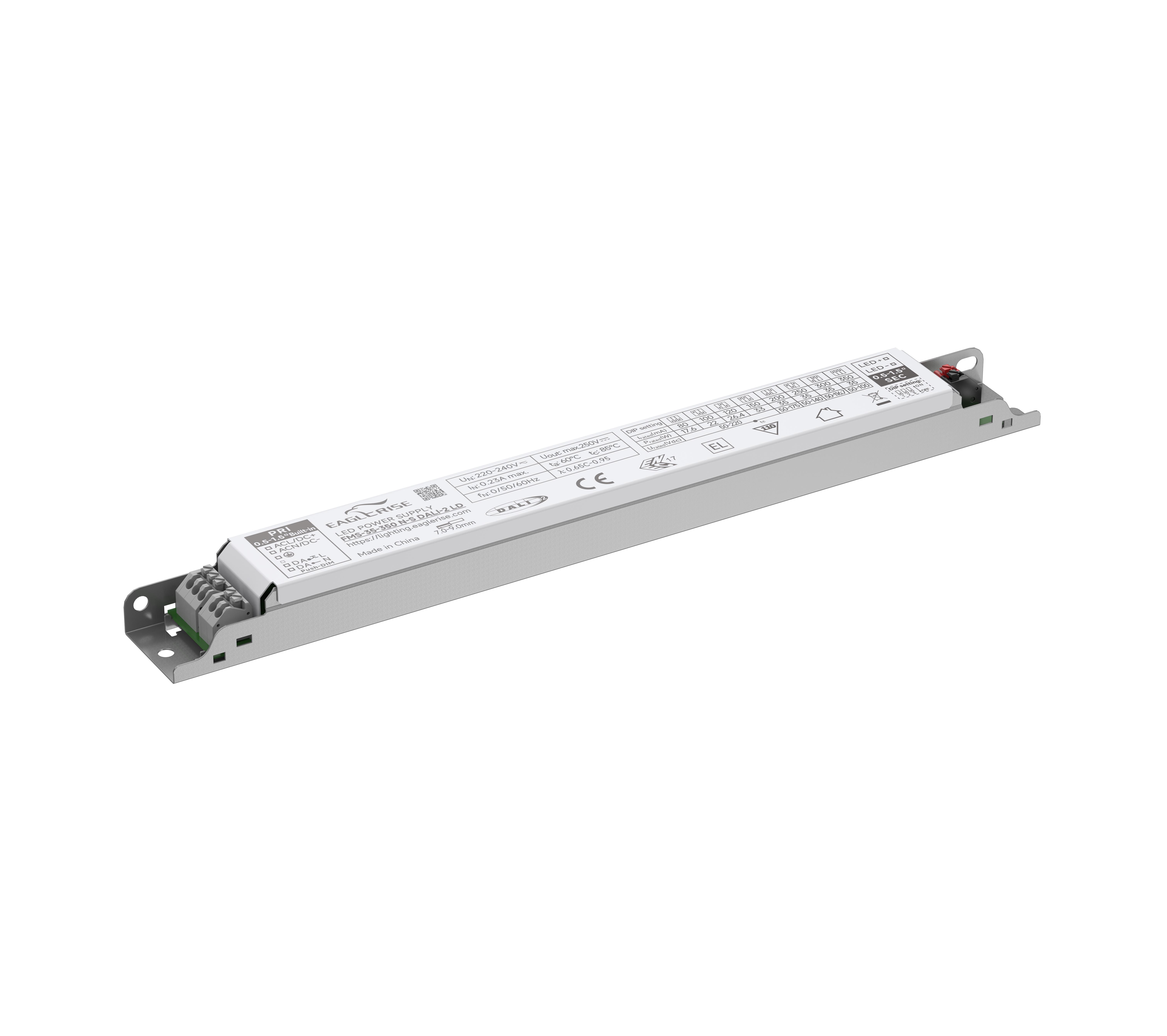

Product Image

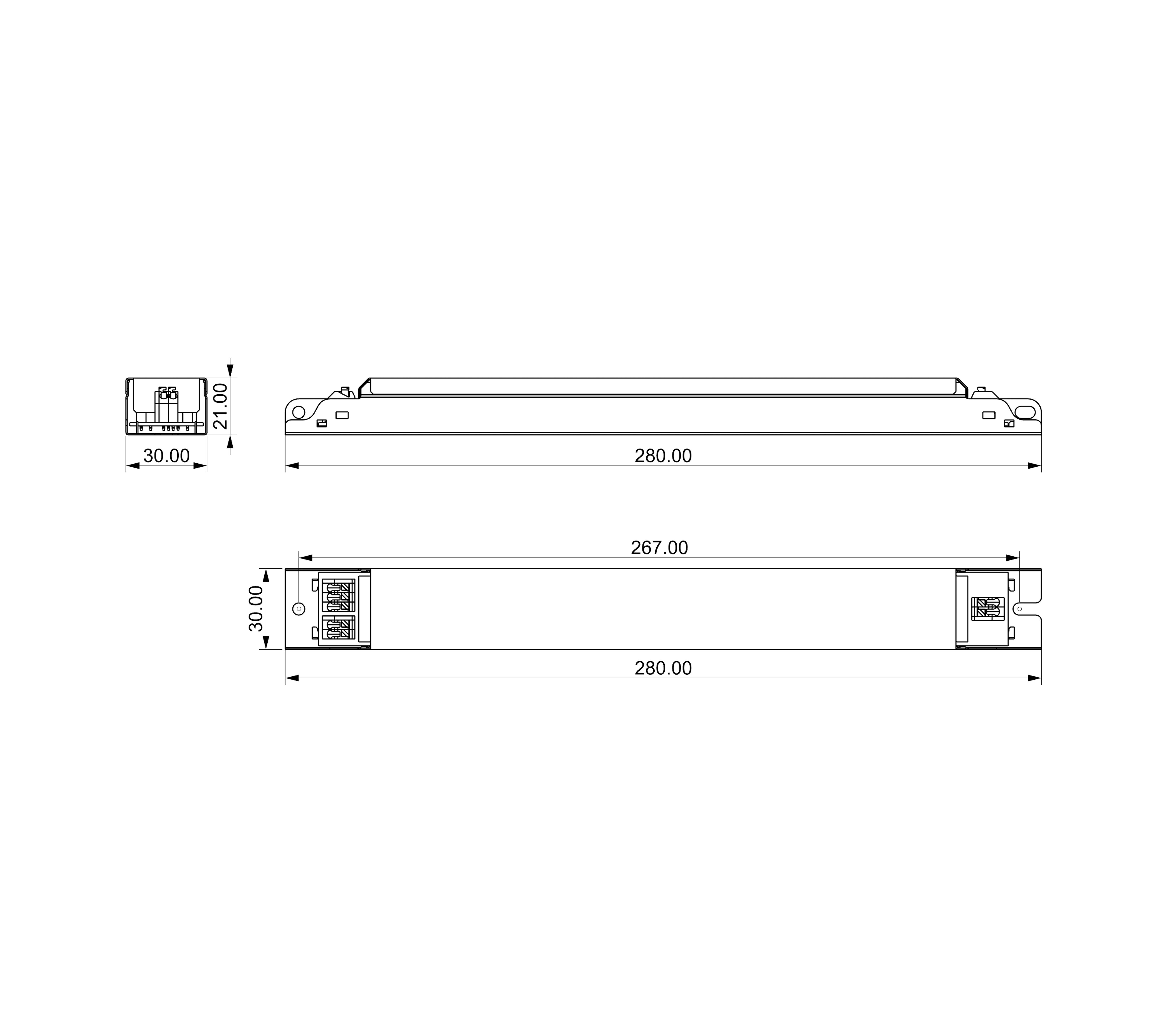

2D Line Drawing
Product Image
2D Line Drawing
35W | 80-350mA

FMS-35-350 N-S DALI-2 LD

Product Description:

· Class I, Non-Isolated design,Built-in;

· Input Voltage 220-240VAC;

· Protections: SCP/OLP/OVP/OTP;

· Power Factor 0.95

· Efficiency :92%

· Adjustable Output Current withdip-switch;

· Support DALI-2,Push Dimming;

· 5 years warranty

Click to Expand
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltagePower FactorSize
FMS-35-350 N-S DALI-2 LD35W220-240VAC80-350mA50-220V0.95280*30*21mm
