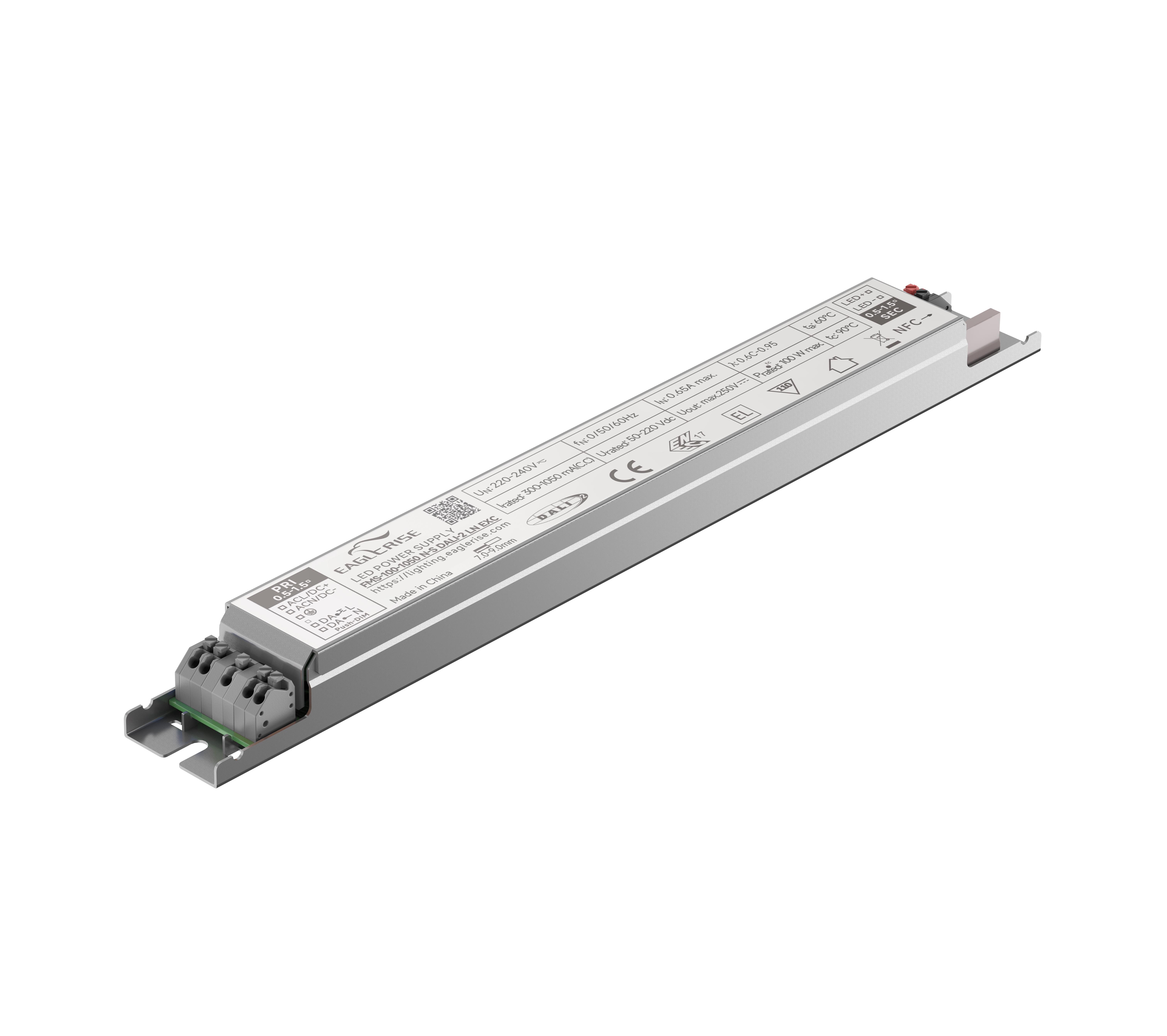

Product Image

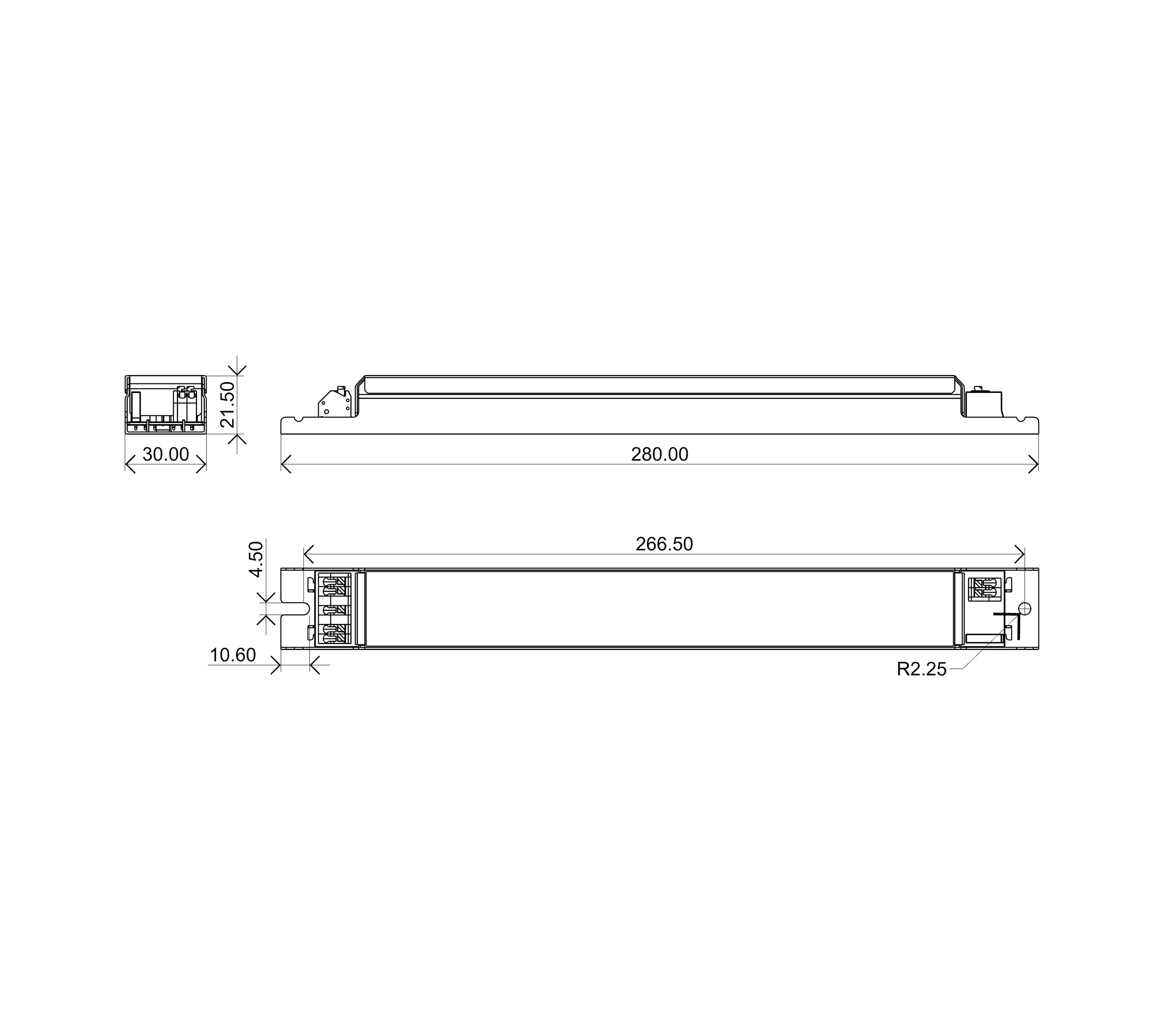

2D Line Drawing
Product Image
2D Line Drawing
100W | 300-1050mA

FMS-100-1050 N-S DALI-2 LN EXC

Product Description:

· For luminaries of protection Class I/II， Non-Isolated design，Built-in

·  Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor 0.95  Efficiency ：94%

· Adjustable Output Current with NFC

· Support DALI-2,Push Dimming

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FMS-100-1050 N-S DALI-2 LN EXC100W220-240VAC300-1050mA50-220V94%0.95280*30*21mm



FMS-100-1050 N-S DALI-2 LN EXC spec REV A
