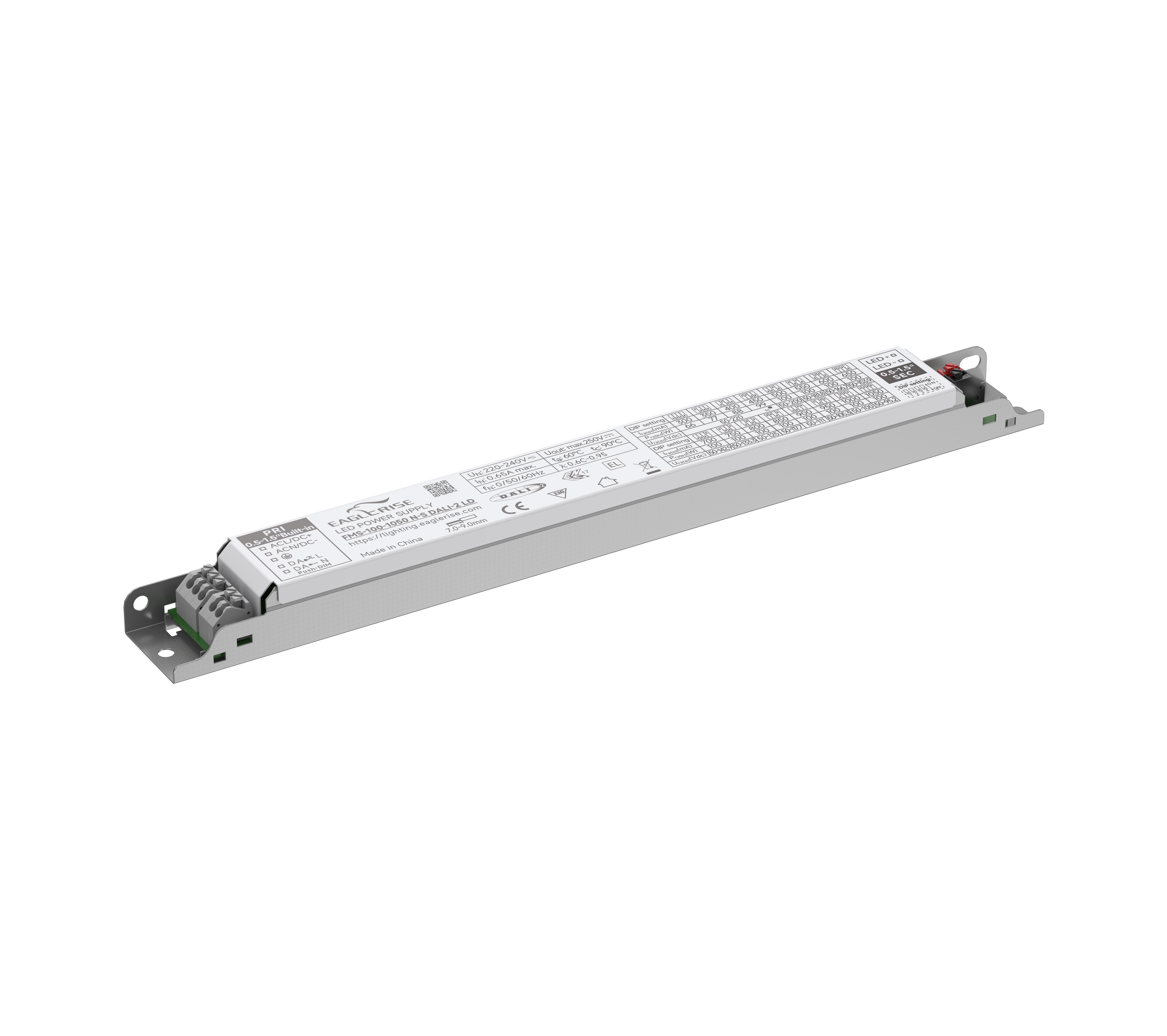

Product Image

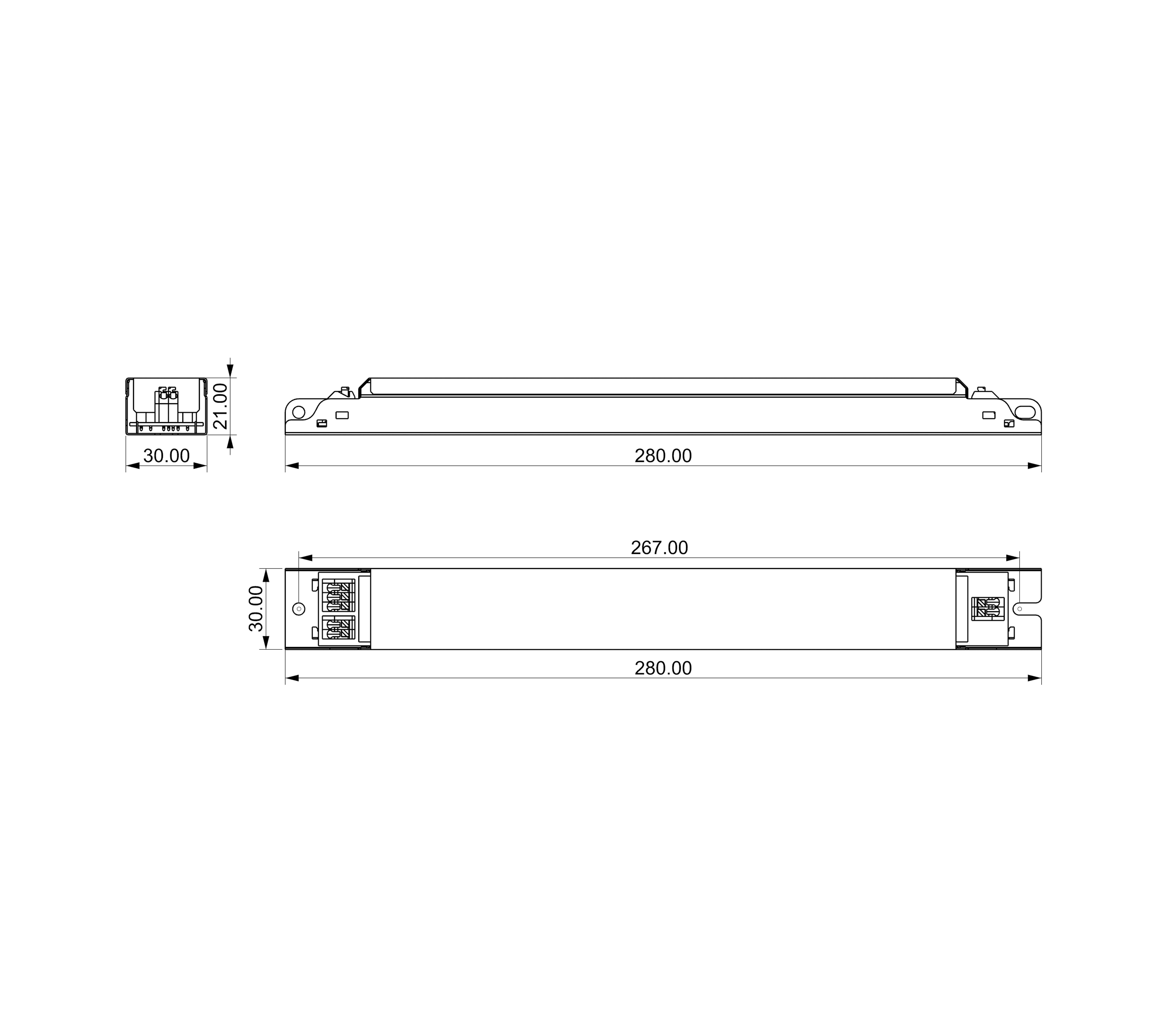

2D Line Drawing
Product Image
2D Line Drawing
100W | 300-1050mA

FMS-100-1050 N-S DALI-2 LD

Product Description:

  • For luminaries of protection Class I/II, Non-Isolated design, Built-in

  • Input Voltage 220-240VAC

  • Protections: SCP/OLP/OVP/OTP

  • Power Factor 0.95

  • Efficiency :94%

  • Adjustable Output Current with dip-switch

  • Support DALI-2, Push Dimming

  • 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
FMS-100-1050 N-S DALI-2 LD100W220-240VAC300-1050mA50-220V94%0.95280*30*21mm



FMS-100-1050 N-S DALI-2 LD spec REV A
