DALI-2
DALI-2

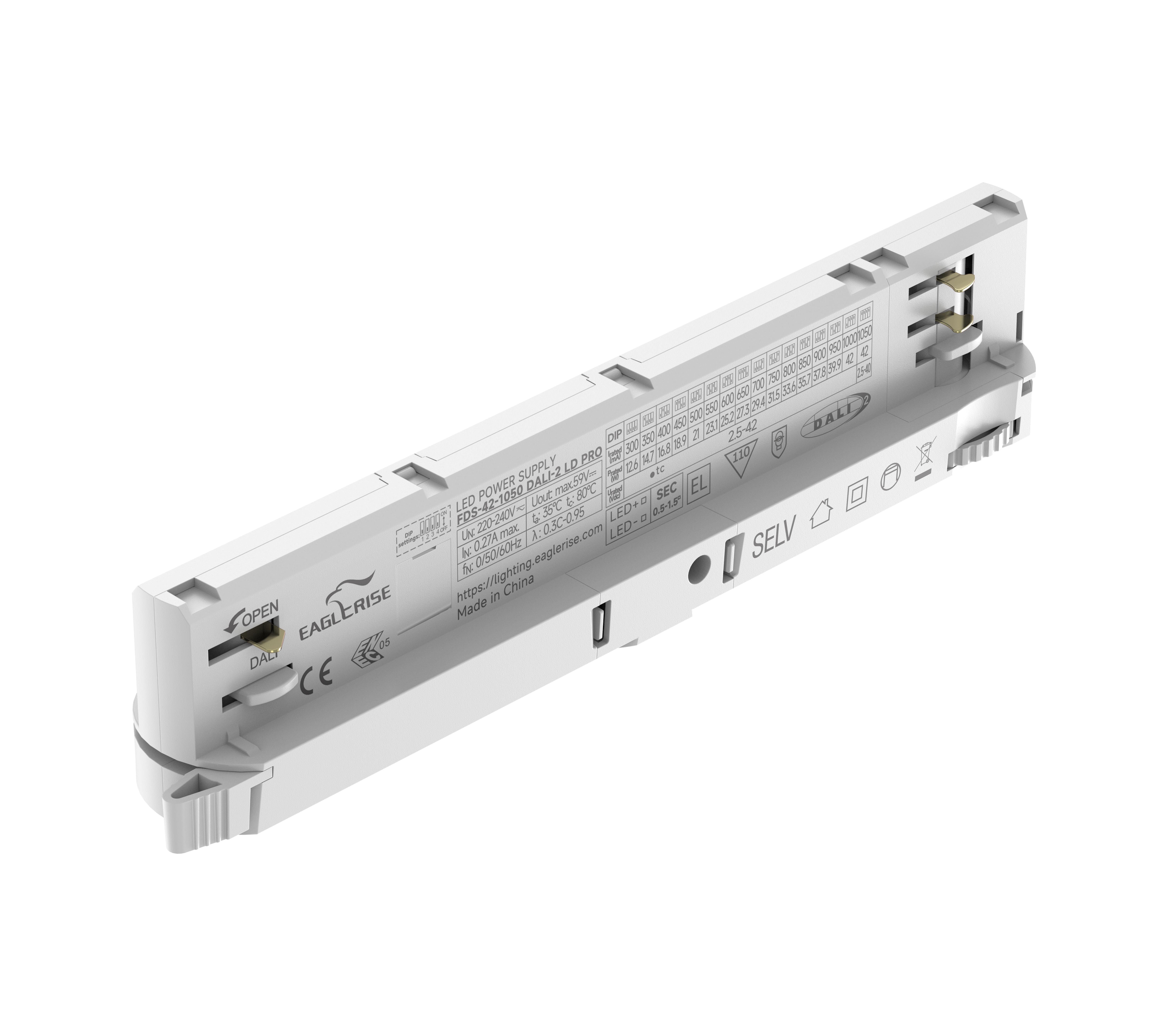

Product Image

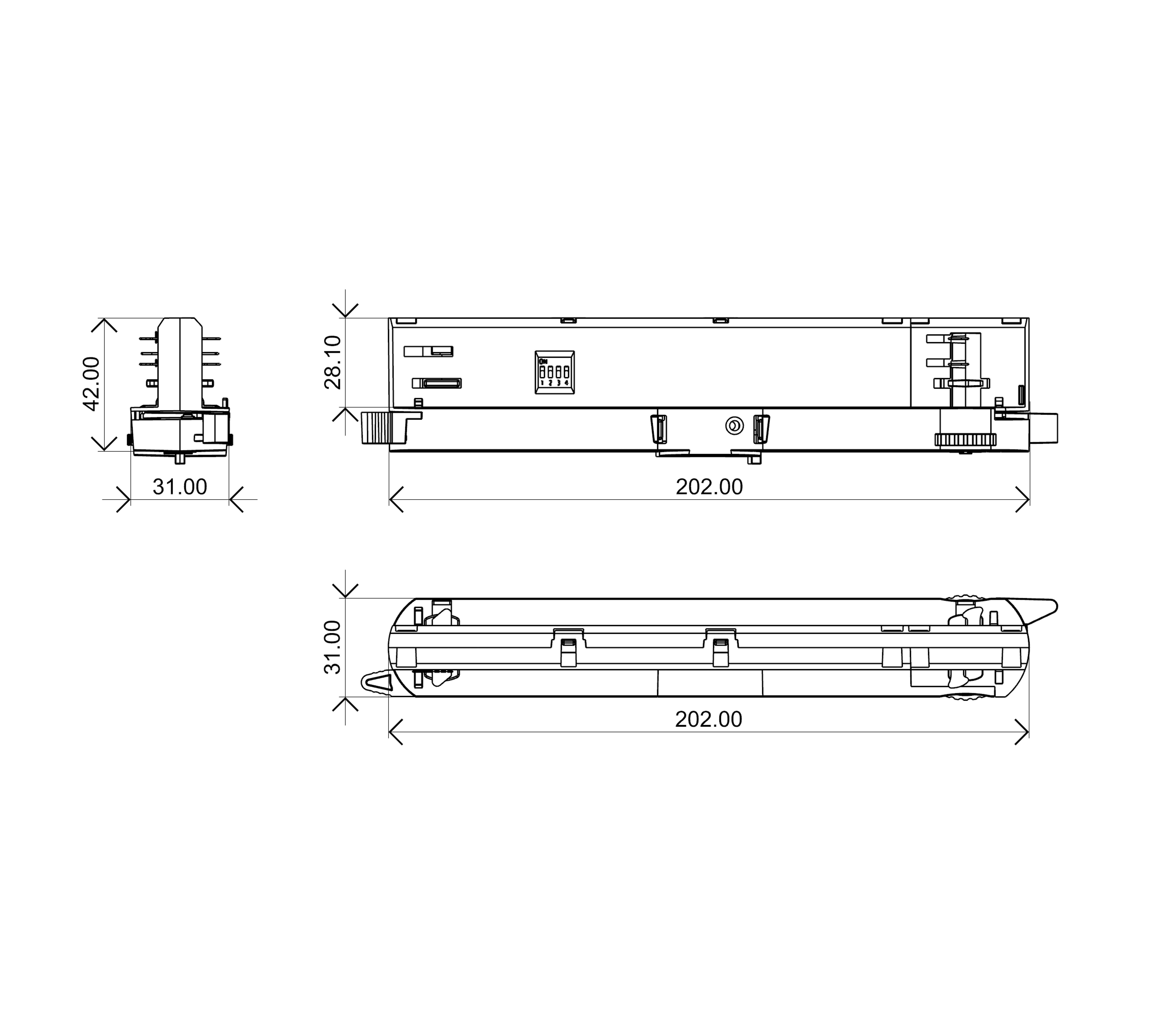

2D Line Drawing
Product Image
2D Line Drawing
42W | 300-1050mA

FDS-42-1050 DALI-2 LD PRO

Product Description:

· For luminaries of protection Class II, SELV

· Input Voltage 220-240VAC、176-280VDC

· Protections: SCP/OLP/OVP/OTP

· Power Factor:0.95

· Efficiency:89%

· Adjustable Output Current with dip-switch

· Support DALI-2 (Part 251,252,253)

· Suitable for emergency lighting acc. to EN50172

· EOFi=100%

· 5 years warranty

Click to Expand
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FDS-42-1050 DALI-2 LD PRO42W220-240VAC300-1050mA2.5-42V89%0.95202*31*42mm
