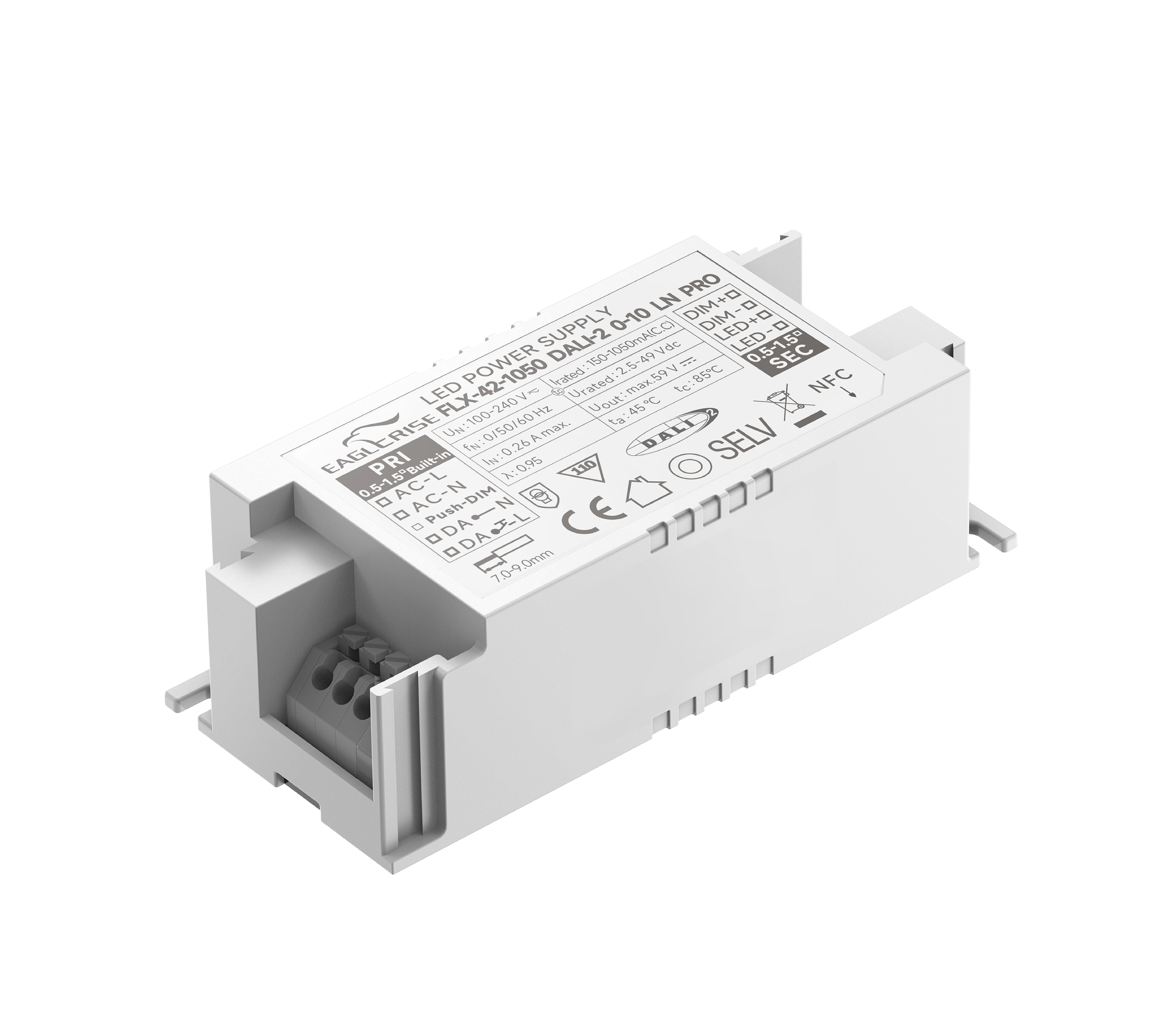

Product Image

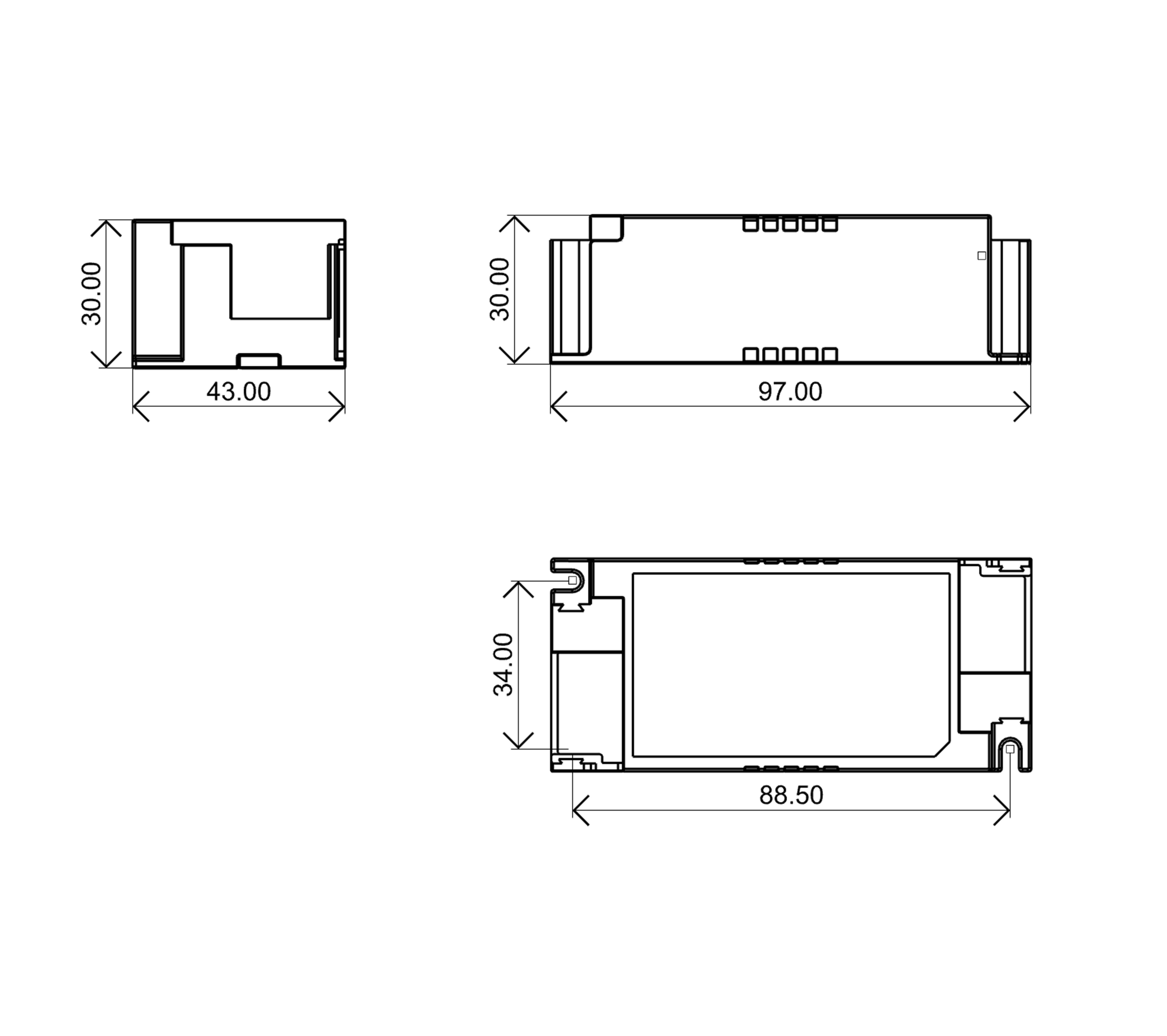

2D Line Drawing

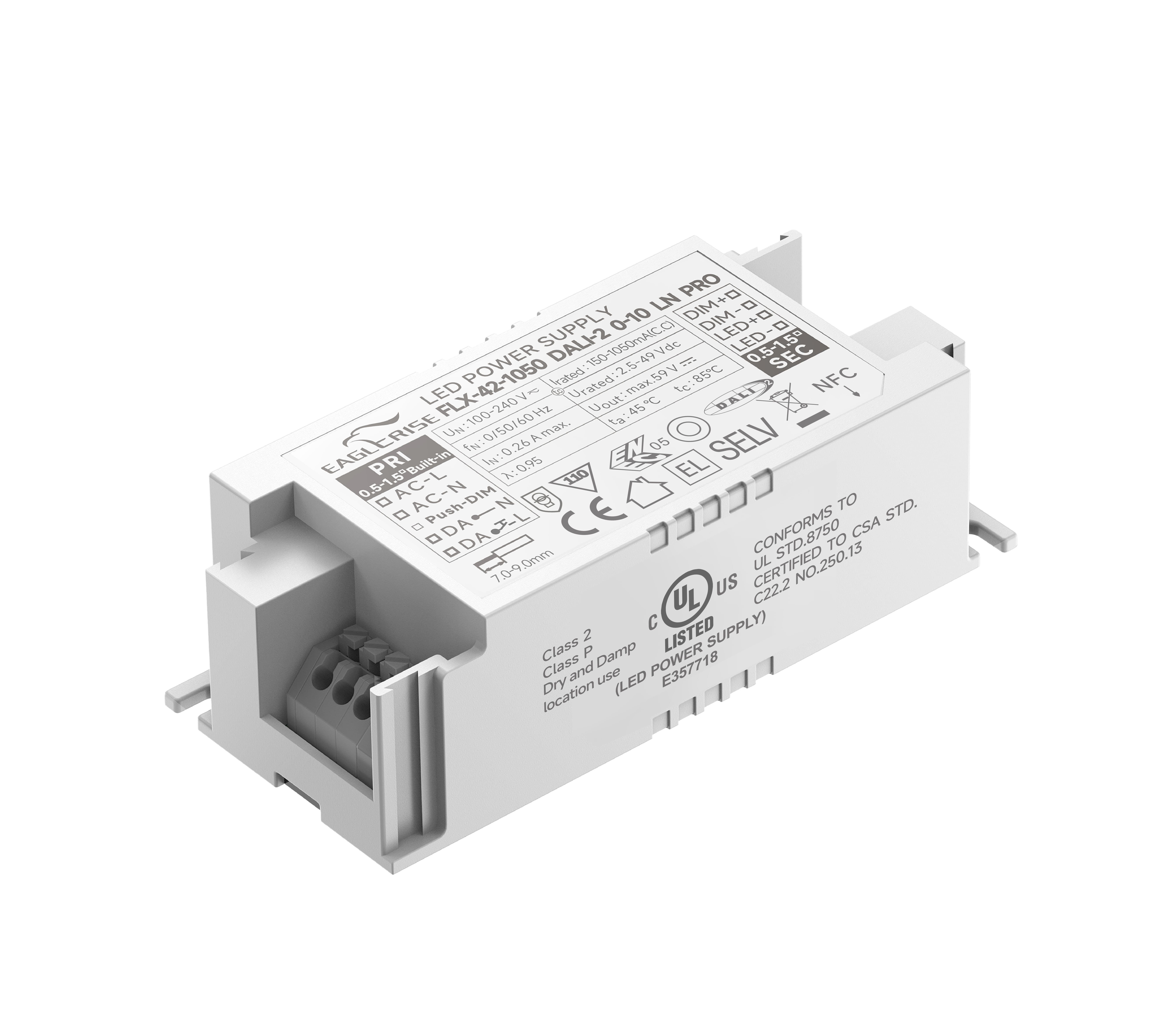

Product Image
2D Line Drawing
42W | 150-1050mA

FLX-42-1050 DALI-2 0-10 LN PRO

Product Description:

· For luminaries of protection Class II,SELV, Built-in/Independent(With side caps)

· Input Voltage: 100-240VAC、176-280VDC

· Protections:SCP/OLP/OVP/OTP

· Power Factor:>0.95

· Efficiency:89%@full load,230VAC; 87%@Full load,120VAC

· Support DALI-2,Push Dimming,0-10V

· Suitable for emergency lighting acc. to EN 50172

· EOFi=15%

· DALI maintainace(Part 251,252,253)

· 5 years warranty

Click to Expand
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLX-42-1050 DALI-2 0-10 LN PRO42W220-240VAC150-1050mA2.5-49V89%0.9597*43*30mm
