DALI-2
DALI-2

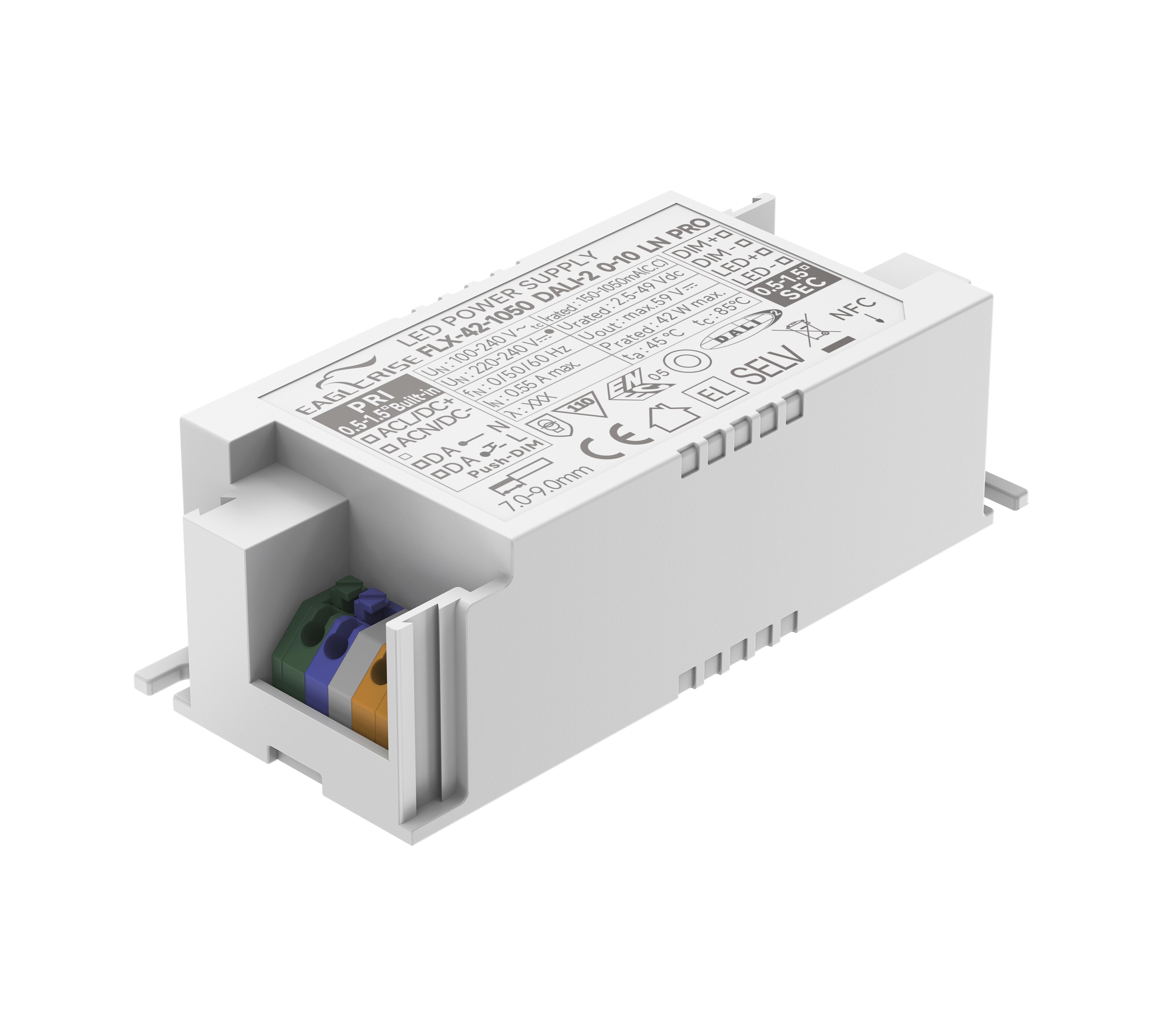

Product Image

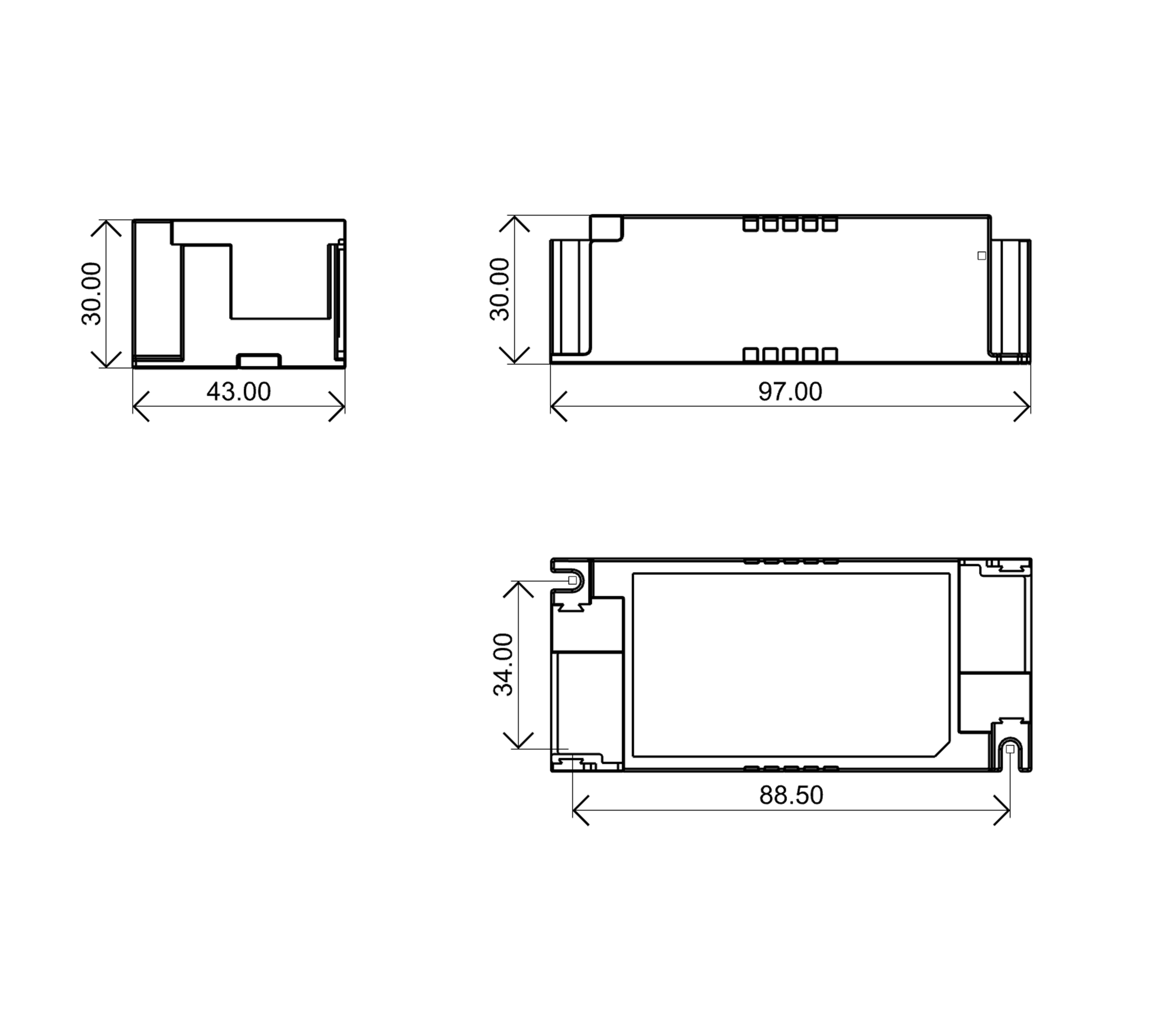

2D Line Drawing
Product Image
2D Line Drawing
42W | 150-1050mA

FLX-42-1050 DALI-2 0-10 LN PRO

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps)

· Input Voltage 100-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Support DALI +0-10+PUSH+RX+PWM

· DALI-2 Parts 251, 252 and 253

· Dimming range 1% to 100%

· Output current adjusted via NFC

· Efficiency>89% ; Power Factor>0.95

· Suitable for emergency lighting acc.  to EN 50172

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLX-42-1050 DALI-2 0-10 LN PRO42W220-240VAC150-1050mA2.5-49V87%0.9597*43*30mm
