42W | 150-1050mA

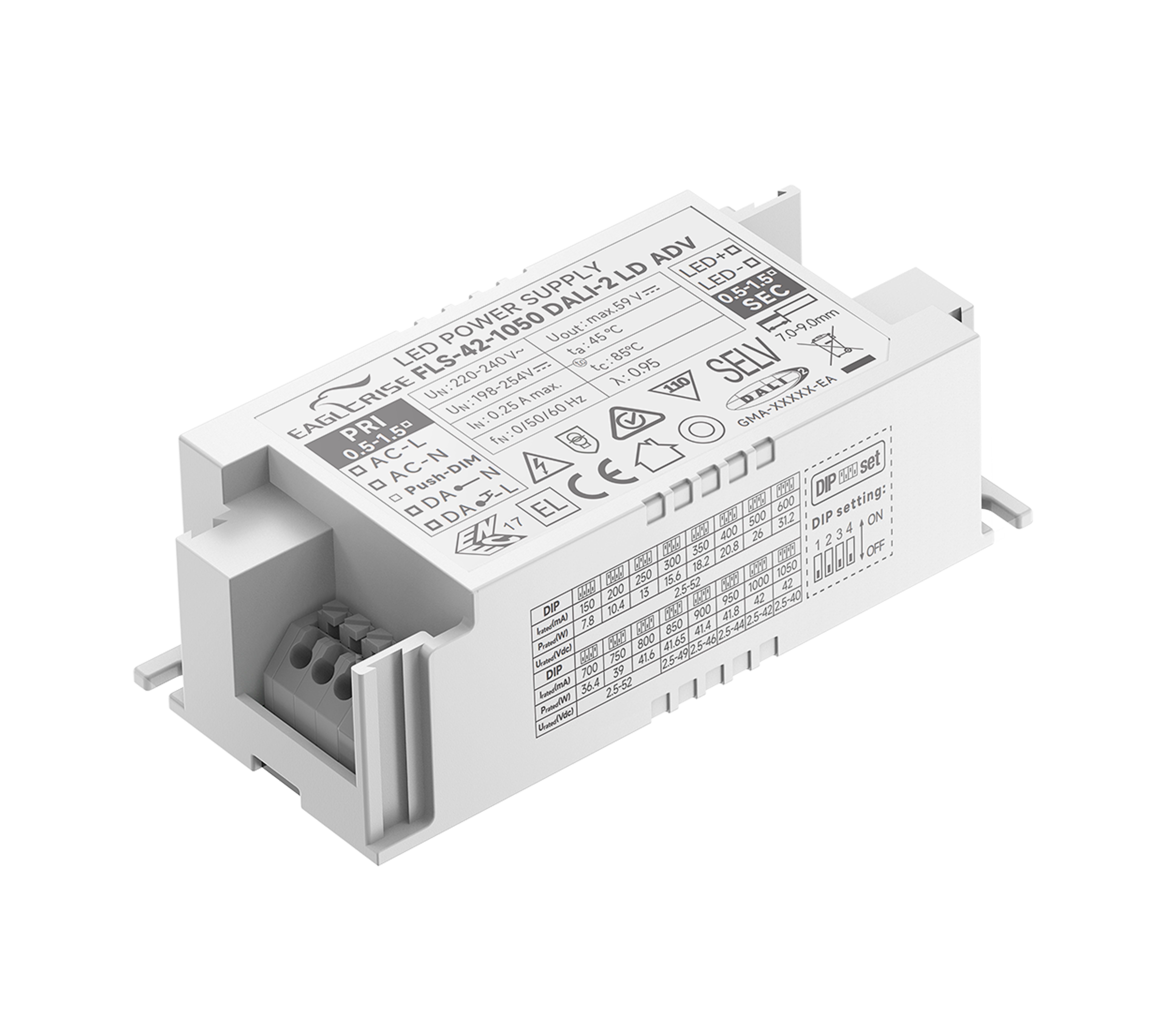

FLS-42-1050 DALI-2 LD ADV

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps)

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· DALI dimming,Push Dimming,Corridor mode

· DALI-2 Parts 251, 252 and 253

· Dimming range 1% to 100%

· Output current adjusted via dip-switch;16 current steps

· Efficiency>87% ; Power Factor>0.97

· Suitable for emergency lighting acc.  to EN 50172

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-42-1050 DALI-2 LD ADV42W220-240VAC150-1050mA2.5-52V87%0.9597*43*30mm
