DALI-2
DALI-2
Product Image
2D Line Drawing
Product Image
2D Line Drawing
30W | 150-700mA

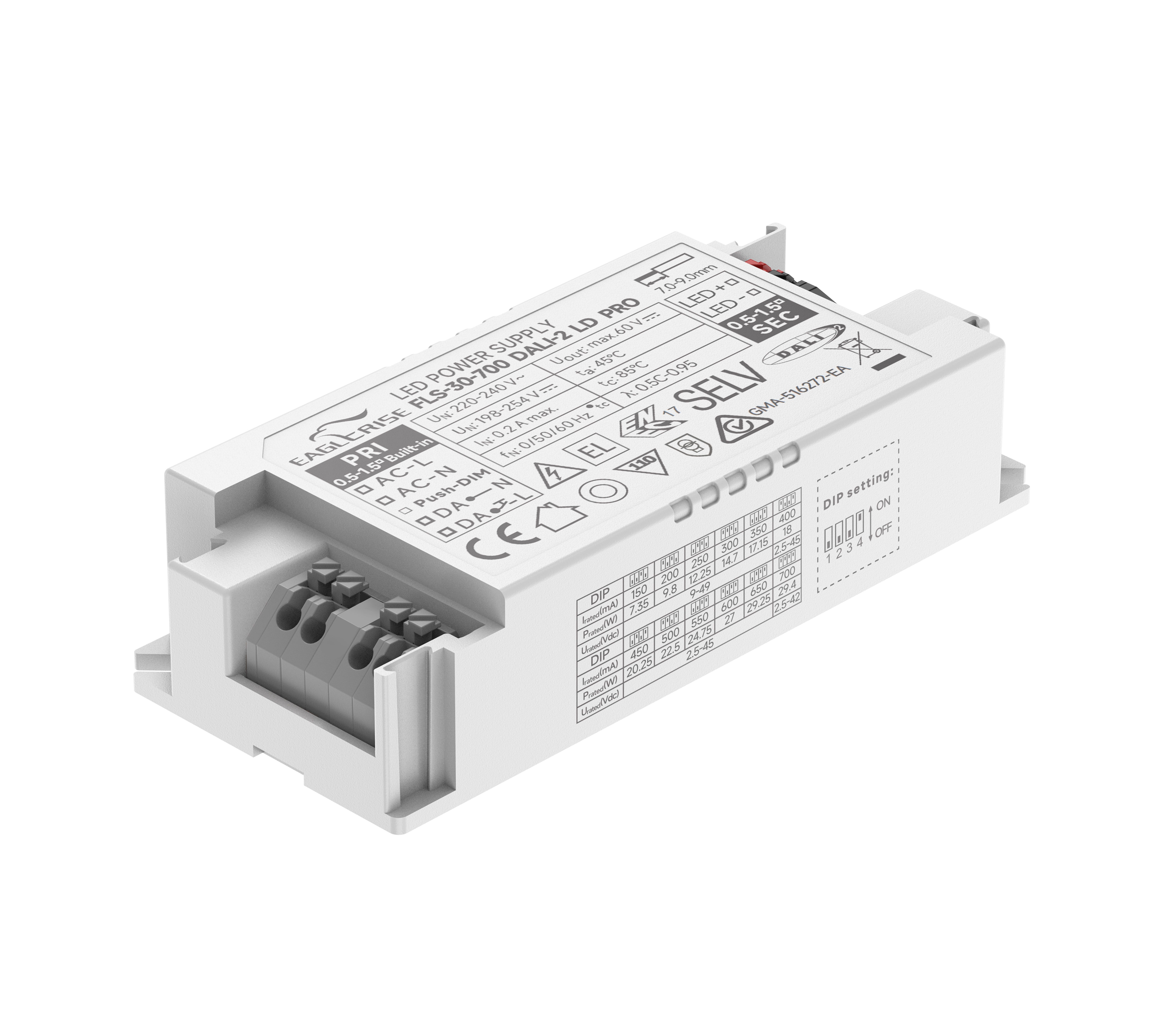

FLS-30-700 DALI-2 LD PRO

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps)

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· DALI dimming,Push Dimming,Corridor mode

· DALI-2 Parts 251, 252 and 253

· Dimming range 1% to 100%

· Output current adjusted via dip-switch

· Efficiency>90% ; Power Factor>0.95

· Suitable for emergency lighting acc.   to EN 50172

· Height:22mm

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-30-700 DALI-2 LD PRO30W220-240VAC150-700mA2.5-49V90%0.9598*43*22mm
