· For luminaire of protection class I and class II
· Isolated / SELV / Built in / Independent (With side caps)
· Input Voltage 220-240 VAC
· Protection: SCP/ OLP/ OVP/ OTP
· DALI dimming,Push Dimming,Corridor mode
· DALI-2 Parts 251, 252 and 253
· Dimming range 1% to 100%
· Output current adjusted via dip-switch;16 current steps
· Efficiency>87% ; Power Factor>0.97
· Suitable for emergency lighting acc. to EN 50172
· 5 years warranty
· Ta, Tc: 45°C/ 85°C
Model | Power | Input Voltage | Output Current | Output Voltage | Efficiency | Power Factor | Size (L*W*H) |

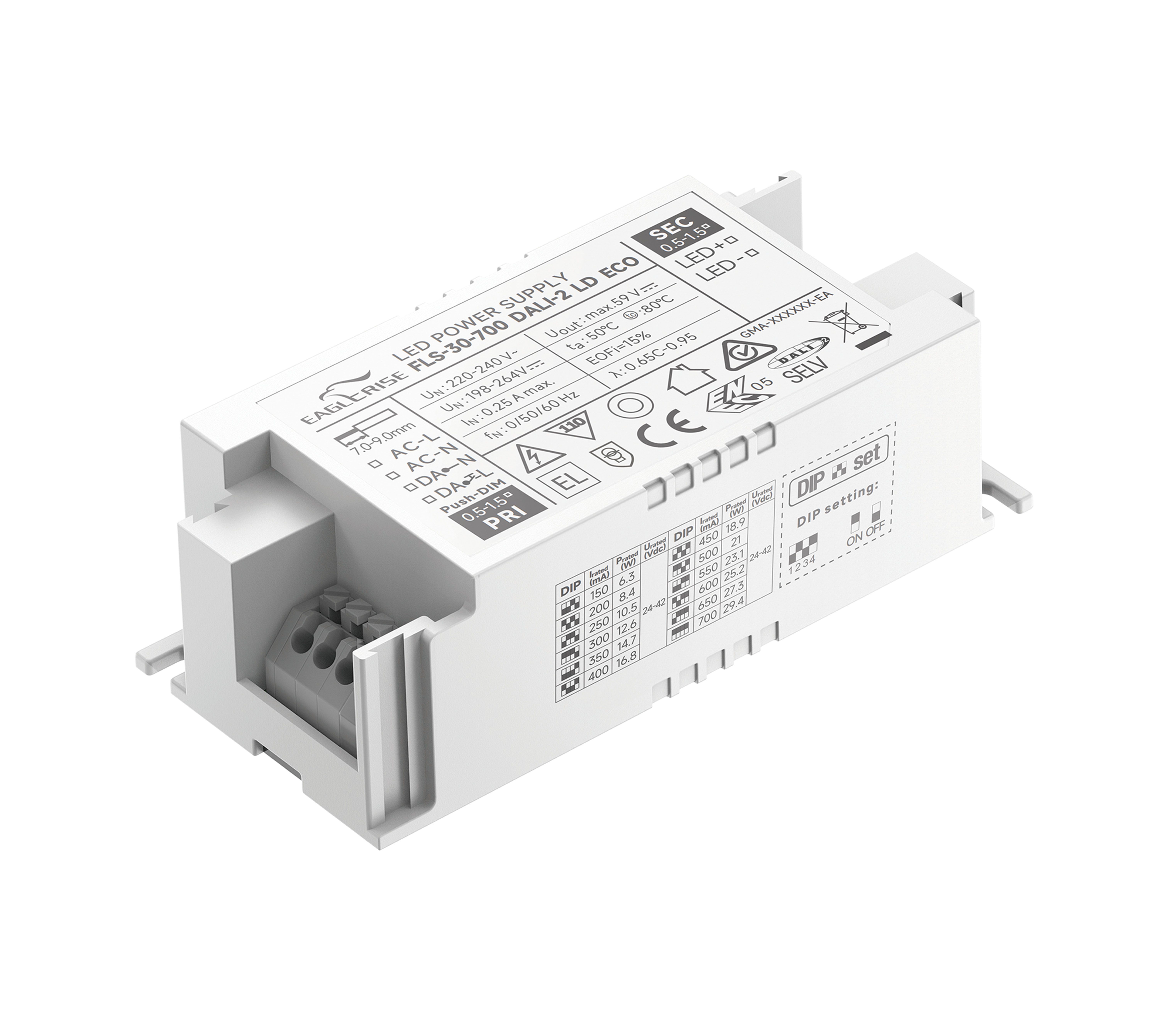

FLS-30-700 DALI-2 LD ECO | 30W | 220-240VAC | 150-700mA | 24-42V | 87% | 0.97 | 97*43*30mm |
