DALI-2
DALI-2
Product Image
2D Line Drawing
Product Image
2D Line Drawing
12W | 150-300mA

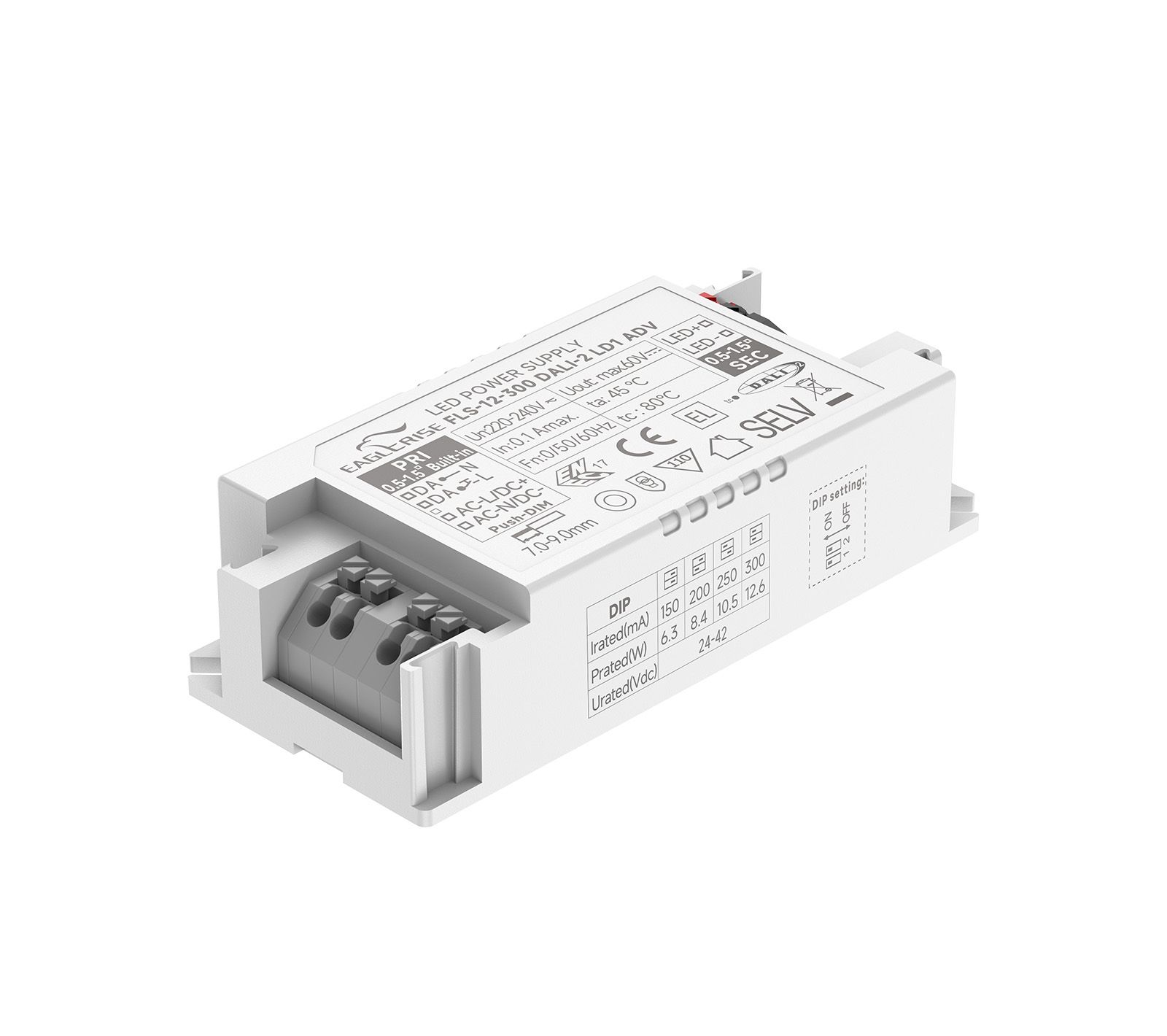

FLS-12-300 DALI-2 LD1 ADV

Product Description:

· For luminaries of protection Class II,SELV, Built-in/Independent(With side caps)

· Input Voltage: 220-240VAC、176-280VDC

· Protections:SCP/OLP/OVP/OTP

· Power Factor:0.95

· Efficiency:91%@Full Load,230Vac

· Support DALI-2,Push Dimming

· Suitable for emergency lighting acc. to EN 50172

· EOFi=15%

· 22mm height

· DALI maintainace(Part 251,252,253)

· 5 years warranty

Click to Expand
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-12-300 DALI-2 LD1 ADV12W220-240VAC150-300mA24-42V91%0.9598*43*22mm


Related Products
FLS-42-1050 DALI-2 LD1 ADV
New
42W | 700-1050mA
FLS-42-1050 DALI-2 LD1 ADV

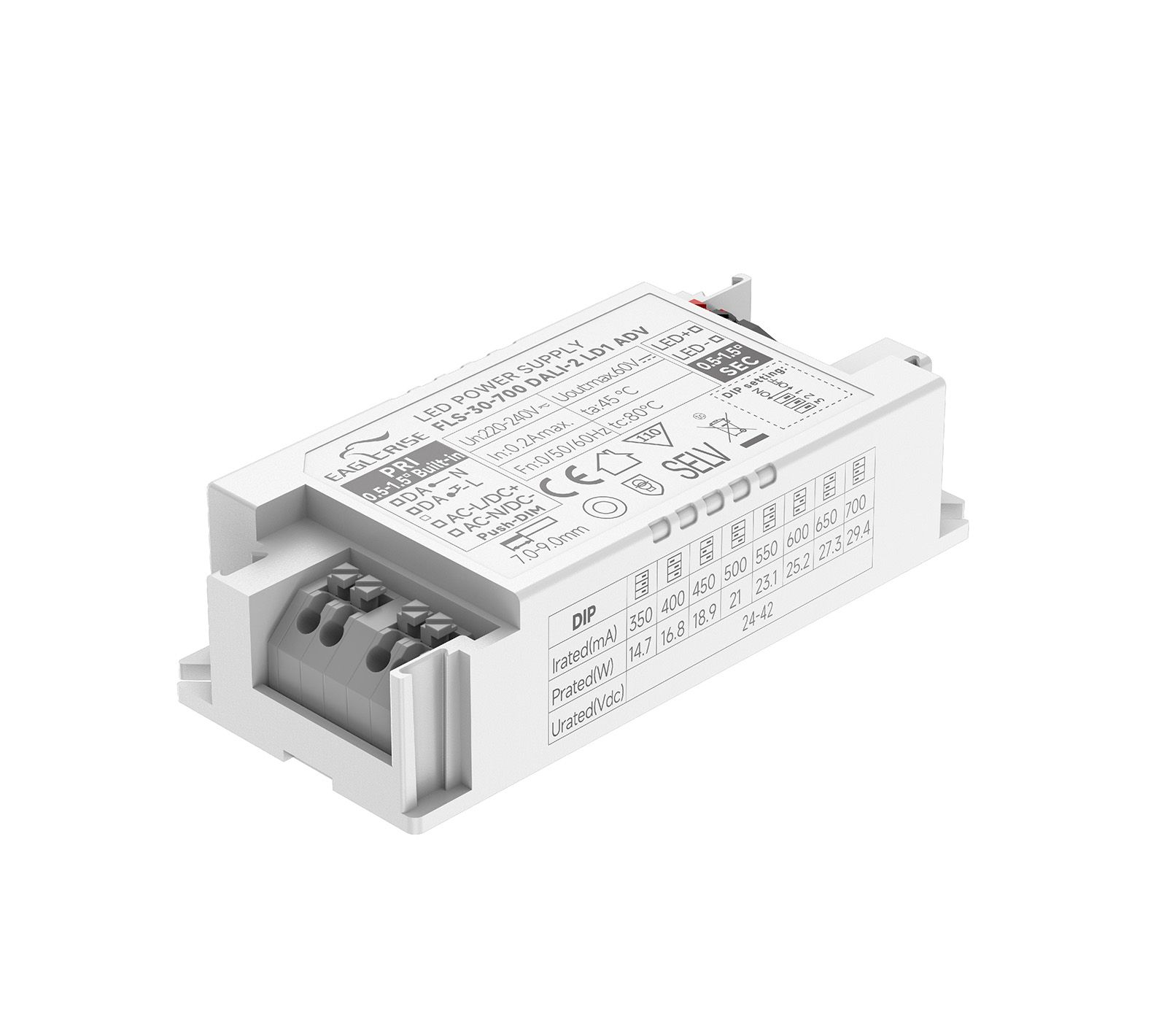

FLS-30-700 DALI-2 LD1 ADV
New
30W | 350-700mA
FLS-30-700 DALI-2 LD1 ADV
15W | 200-350mA
FLS-15-350 LD1 ADV
