DALI-2
DALI-2
Product Image

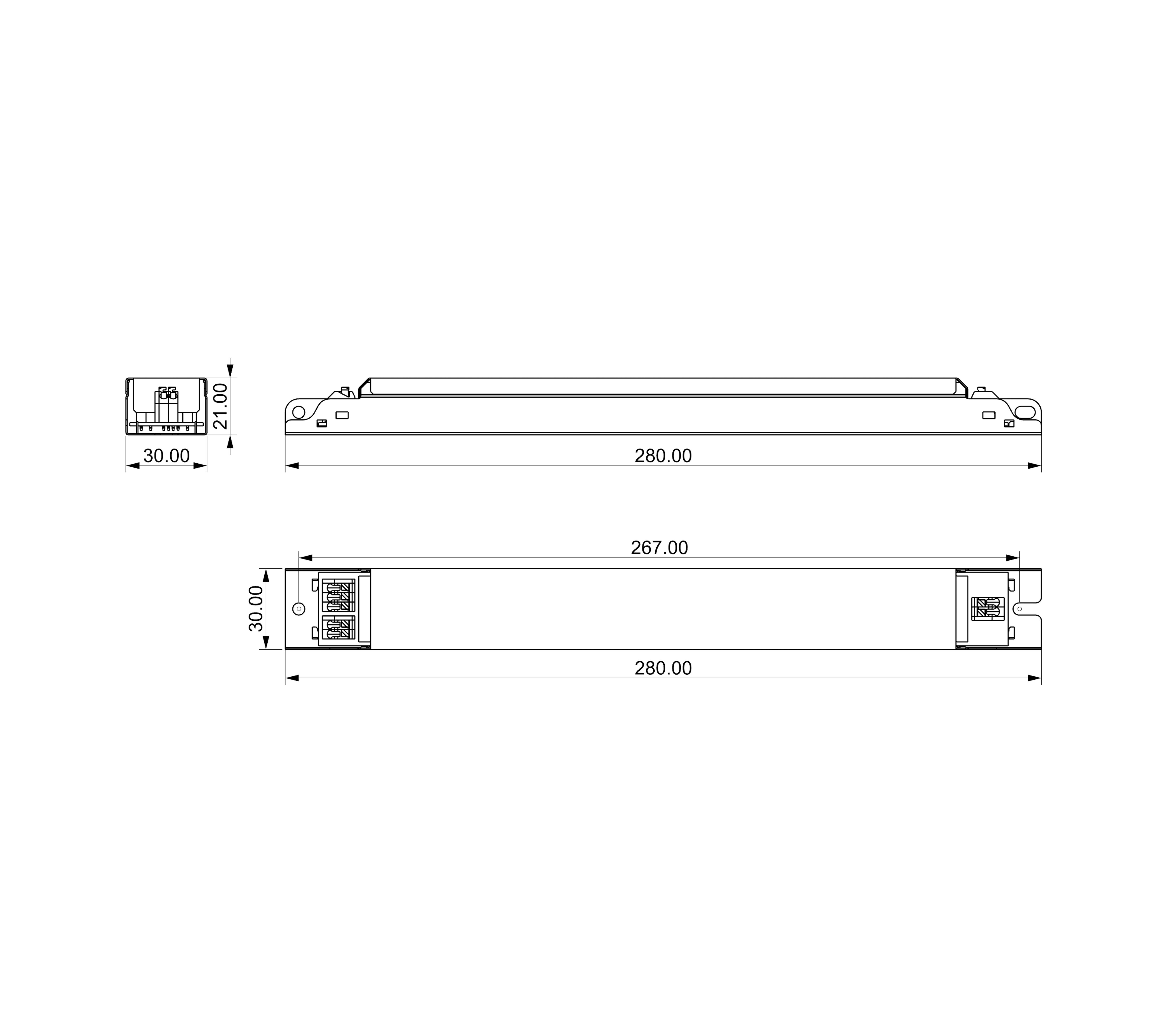

2D Line Drawing
Product Image
2D Line Drawing
35W | 150-700mA

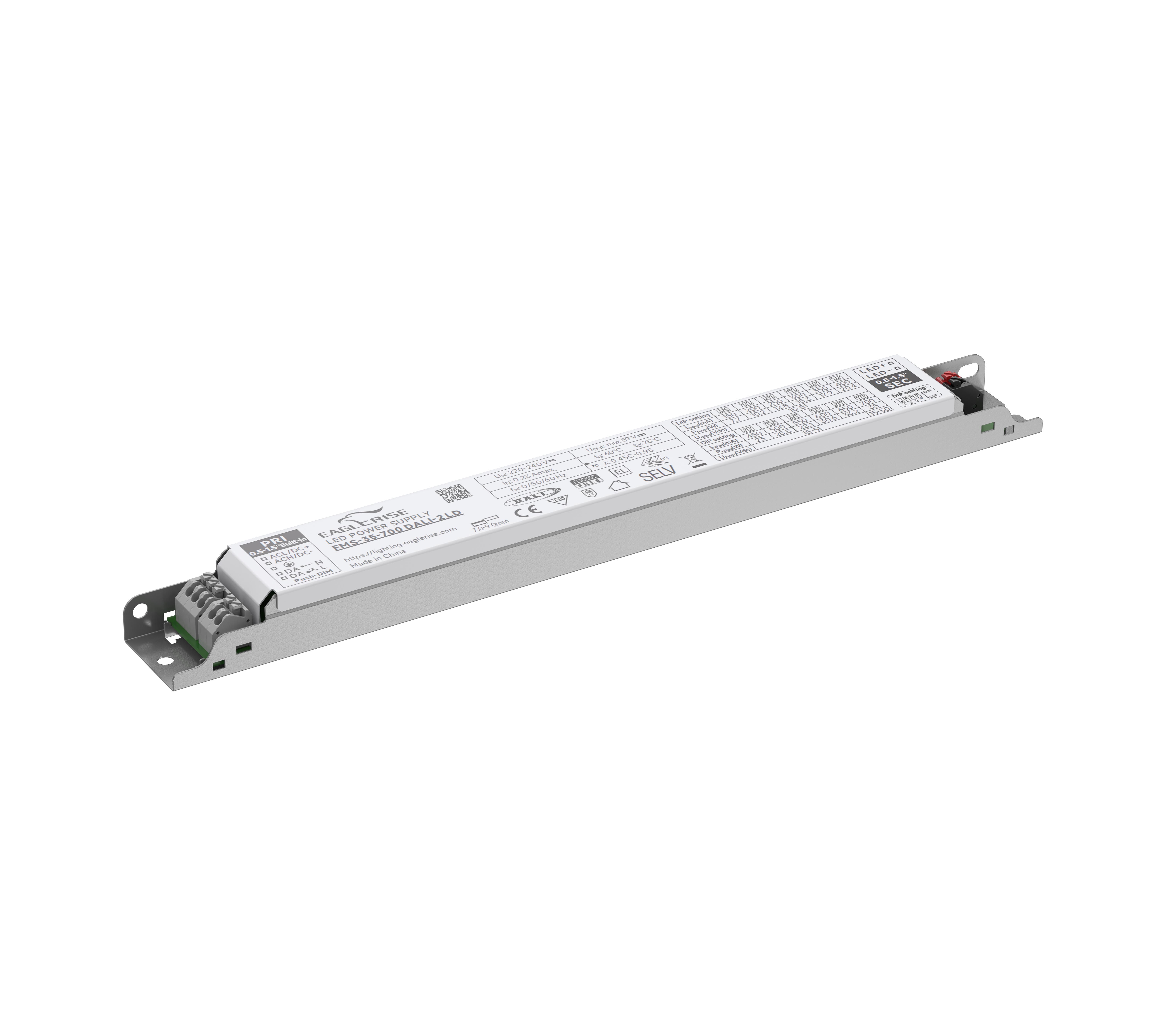

FMS-35-700 DALI-2 LD

Product Description:

· For luminaries of protectionClassI orII,SELV, Built-in/Independent(Withsidecaps)

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor: >0.95

· Efficiency :90%

· Support DALI-2,Push Dimming

· Adjustable Output Current withdip-switch

· Suitable for emergency lightingacc. toEN50172

· EOFi=100%

· DALI maintainace(Part 251,252,253)

· 5 years warranty

Click to Expand
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FMS-35-700 DALI-2 LD35W220-240VAC150-700mA15-51V90%0.95280*30*21mm



Tags:
Related Products
FMS-35-700 DALI-2 LD
Hot
35W | 150-700mA
FMS-35-700 DALI-2 LD

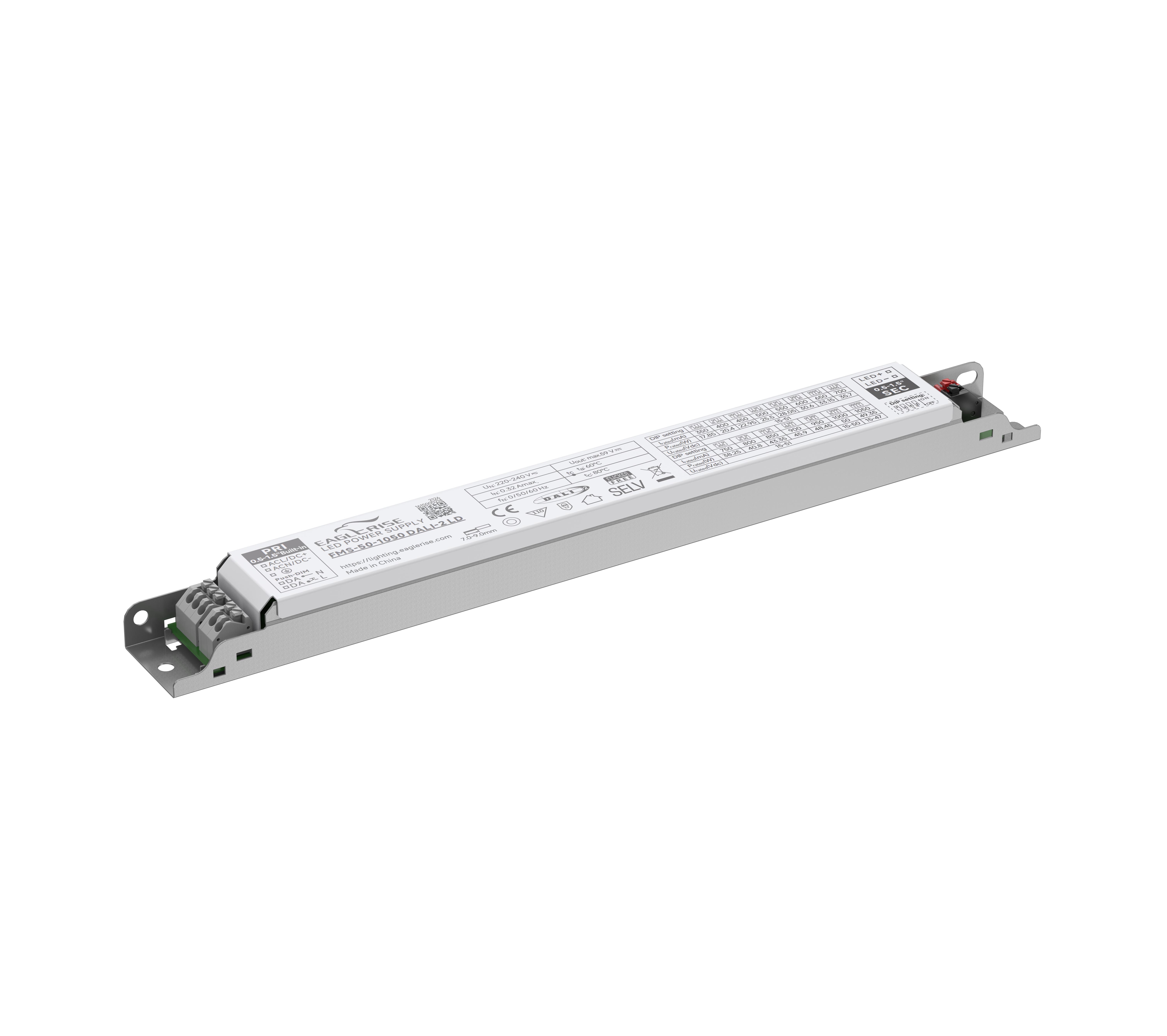

FMS-50-1050 DALI-2 LD
Hot
50W | 350-1050mA
FMS-50-1050 DALI-2 LD

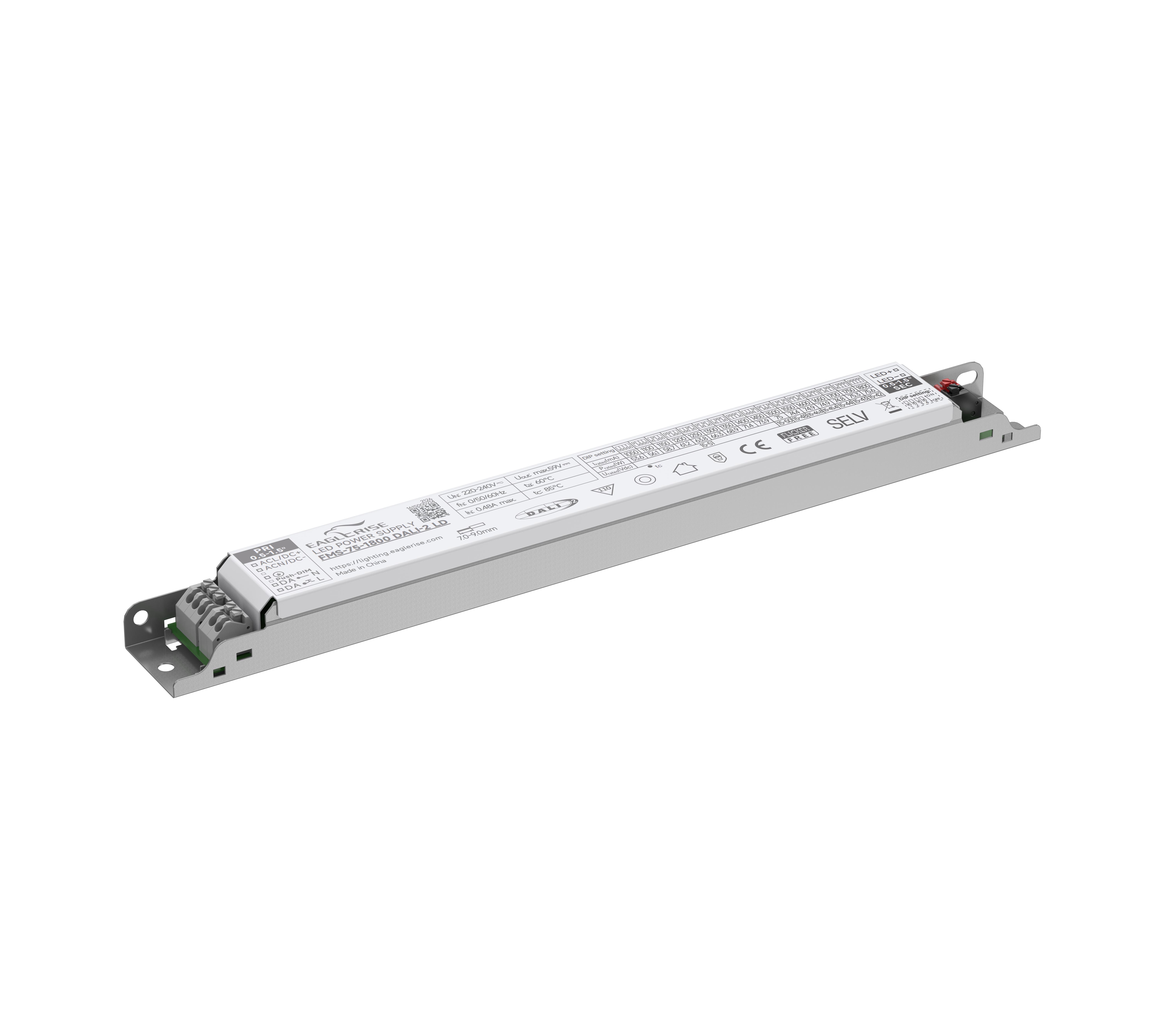

FMS-75-1800 DALI-2 LD
