DALI-2 DT8
DALI-2 DT8

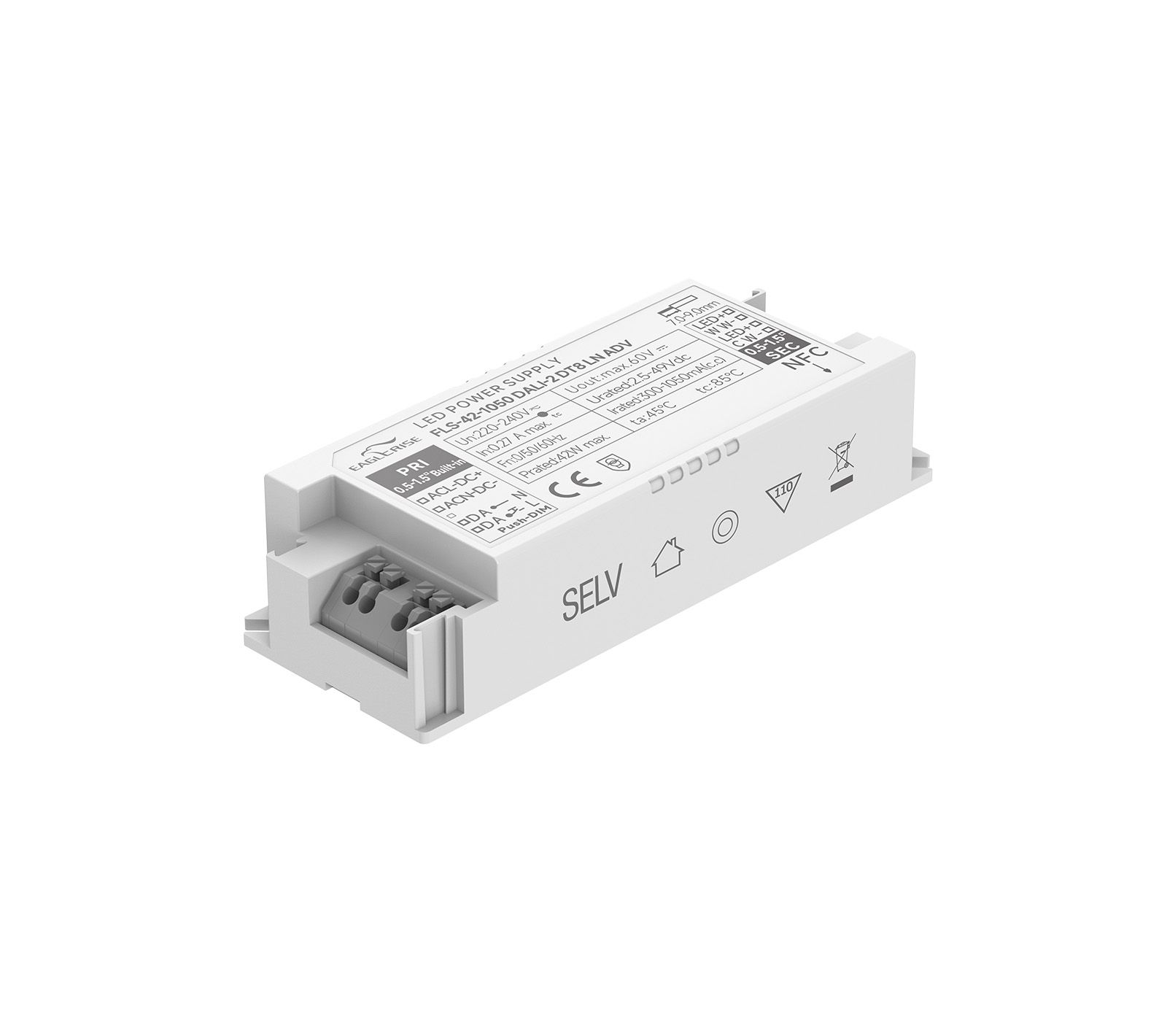

Product Image

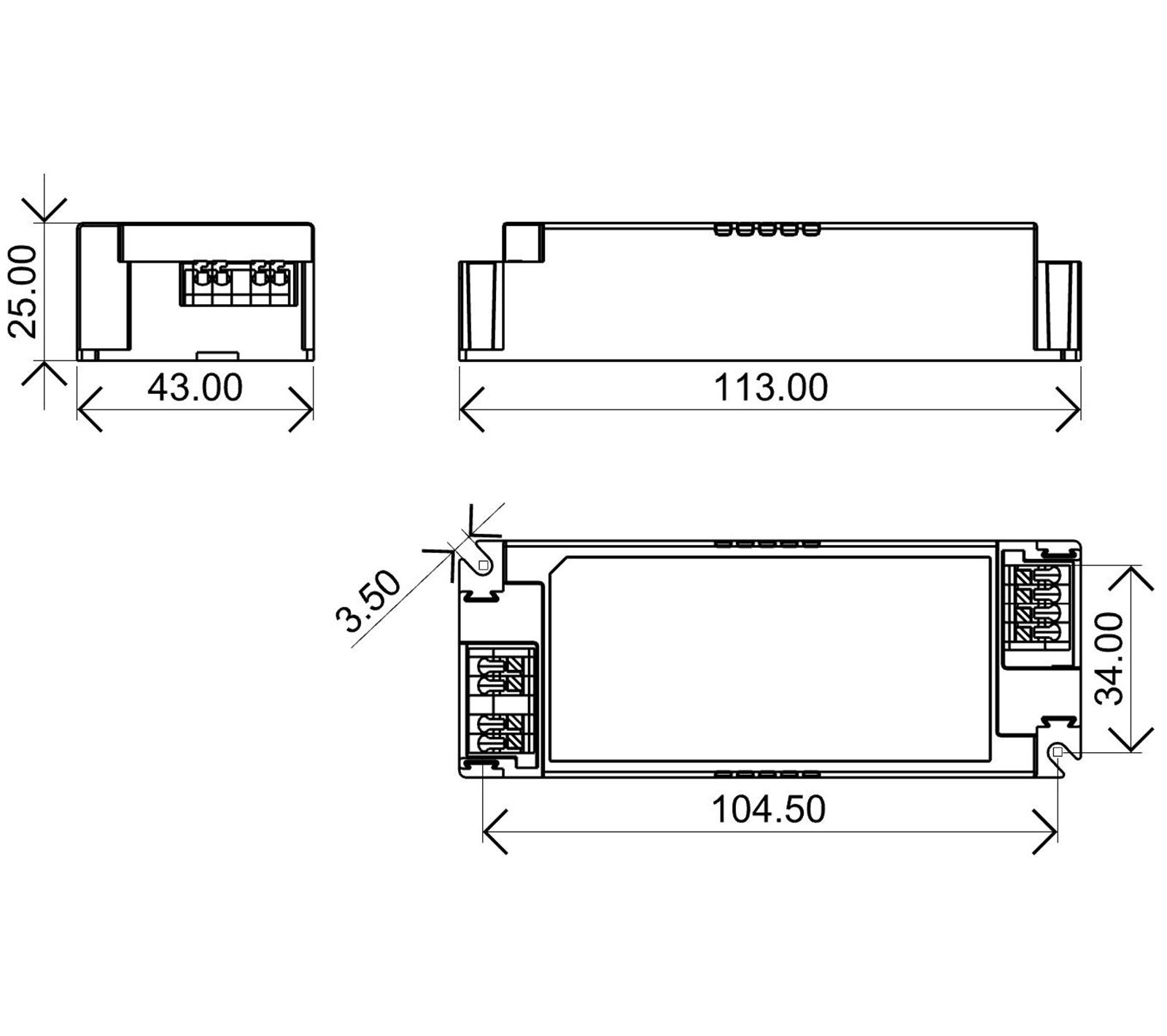

2D Line Drawing
Product Image
2D Line Drawing
42W | 300-1050mA

FLS-42-1050 DALI-2 DT8 LN ADV

Product Description:

· For luminaries of protection Class II,SELV,Builtin/Independent(With side caps)
· Input Voltage: 220-240V
· Protections:SCP/OLP/OVP/OTP
· Power Factor:0.95
· Efficiency:90%@900mA,full Load,230Vac
· Support DALI-2,Push Dimming,DT8 (Tunable White),DT6
· Adjustable Output Current with NFC
· Suitable for emergency lighting acc. to EN 50172
· EOFI=15%
· 25mm height
· DALI maintainace(Part 251,252,253,209)
· 5 years warranty

Click to Expand
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-42-1050 DALI-2 DT8 LN ADV42W220-240VAC300-1050mA2.5-49V90%0.95113*43*25mm
Related Products
NFC APP
Click the link below to download Eaglerise NFC APP.
APP Download
