DALI-2 DT8
DALI-2 DT8
20W | 80-500mA

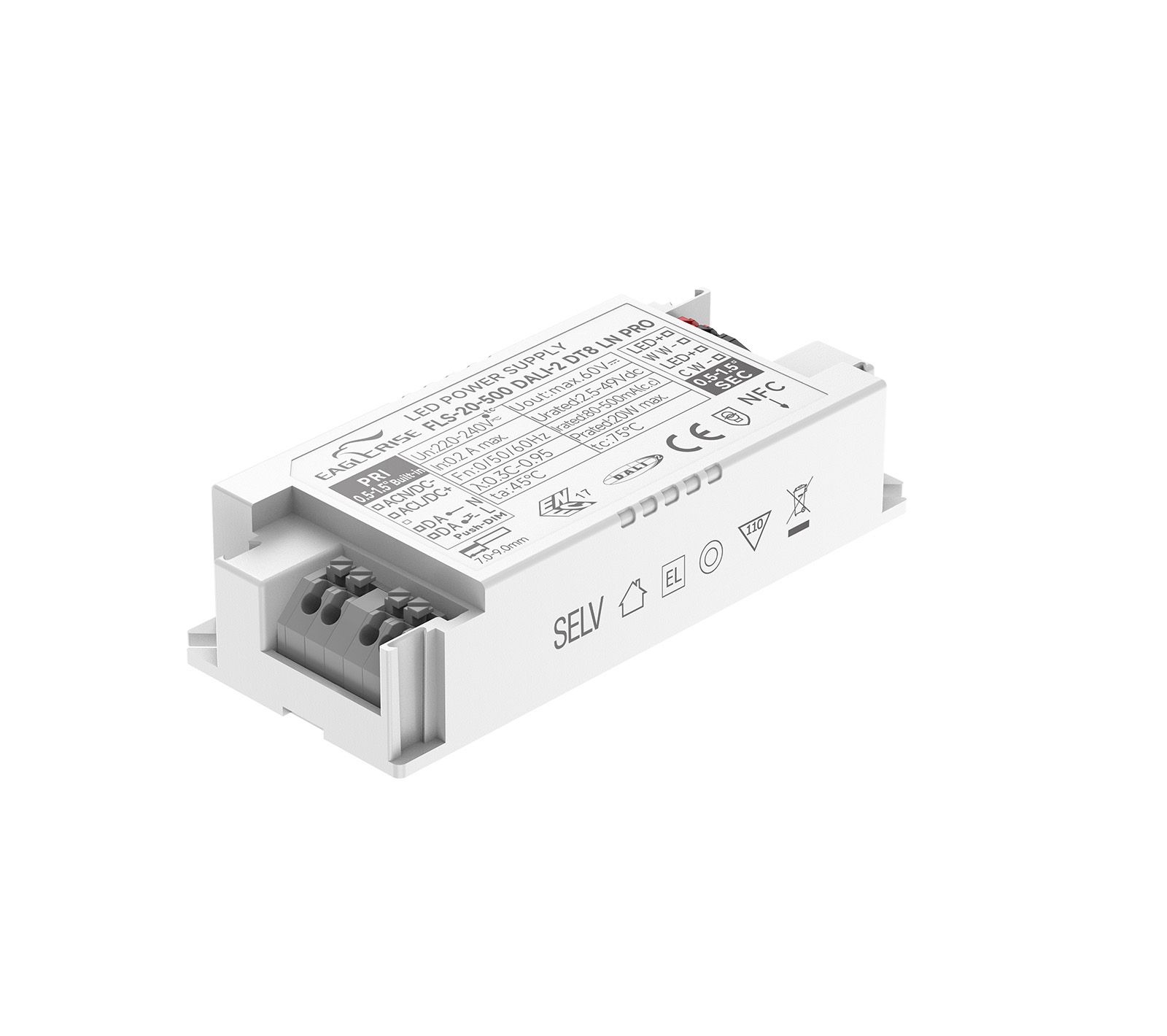

FLS-20-500 DALI-2 DT8 LN PRO

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps)

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· DALI dimming, Push Dimming, Corridor mode

· Tunable white DT8

· DALI-2 Parts 251, 252 and 253

· Dimming range 1% to 100%

· Output current adjusted via NFC

· Efficiency>87% ; Power Factor>0.95

· Suitable for emergency lighting acc.   to EN 50172

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Models
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-20-500 DALI-2 DT8 LN PRO20W220-240VAC80-500mA2.5-49V87%0.95113*43*25mm
