DALI-2 DT8
DALI-2 DT8

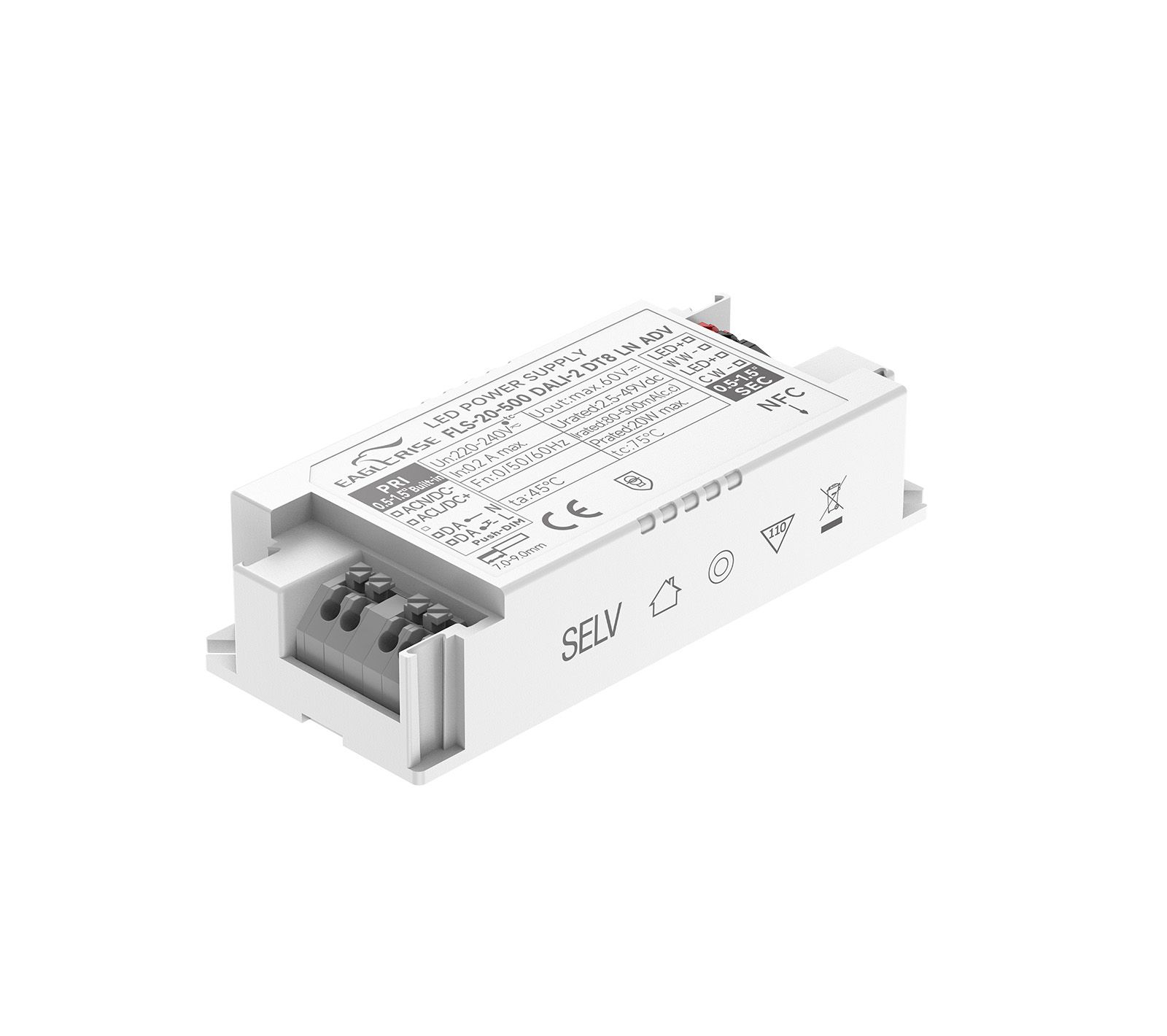

Product Image

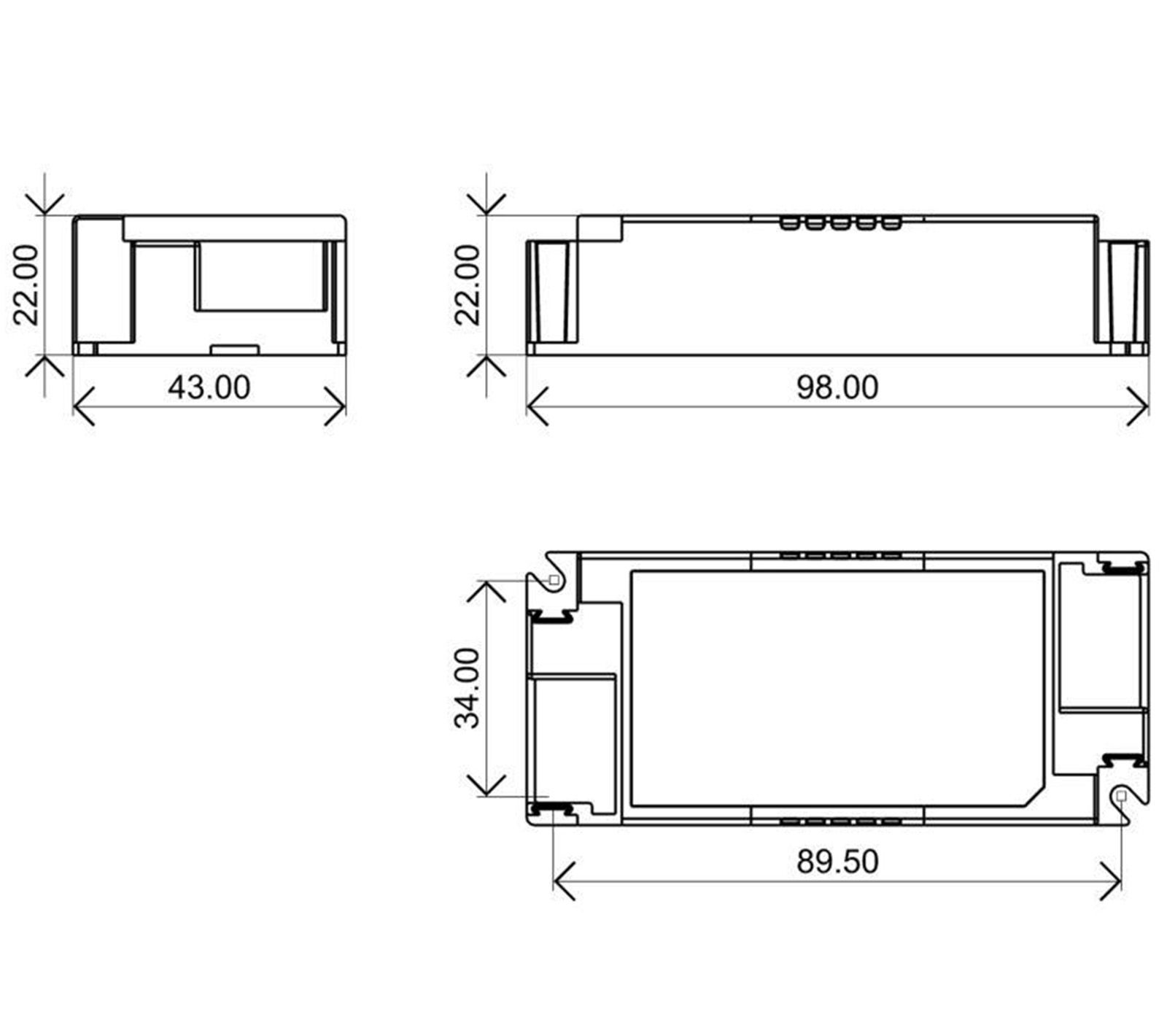

2D Line Drawing
Product Image
2D Line Drawing
20W | 80-500mA

FLS-20-500 DALI-2 DT8 LN ADV

Product Description:

· For luminaries of protection Class II,SELV,Builtin/Independent(With side caps)
· Input Voltage: 220-240V
· Protections:SCP/OLP/OVP/OTP
· Power Factor:0.95
· Efficiency:87%@500mA,full Load,230Vac
· Support DALI-2,Push Dimming,DT8 (Tunable White),DT6
· Adjustable Output Current with NFC
· Suitable for emergency lighting acc. to EN 50172
· EOFi=15%
· 22mm height
· DALI maintainace(Part 251,252,253,209)
· 5 years warranty

Click to Expand
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-20-500 DALI-2 DT8 LN ADV20W220-240VAC80-500mA2.5-49V87%0.9598*43*22mm


Related Products
NFC APP
Click the link below to download Eaglerise NFC APP.
APP Download
