DALI-2 DT8
DALI-2 DT8

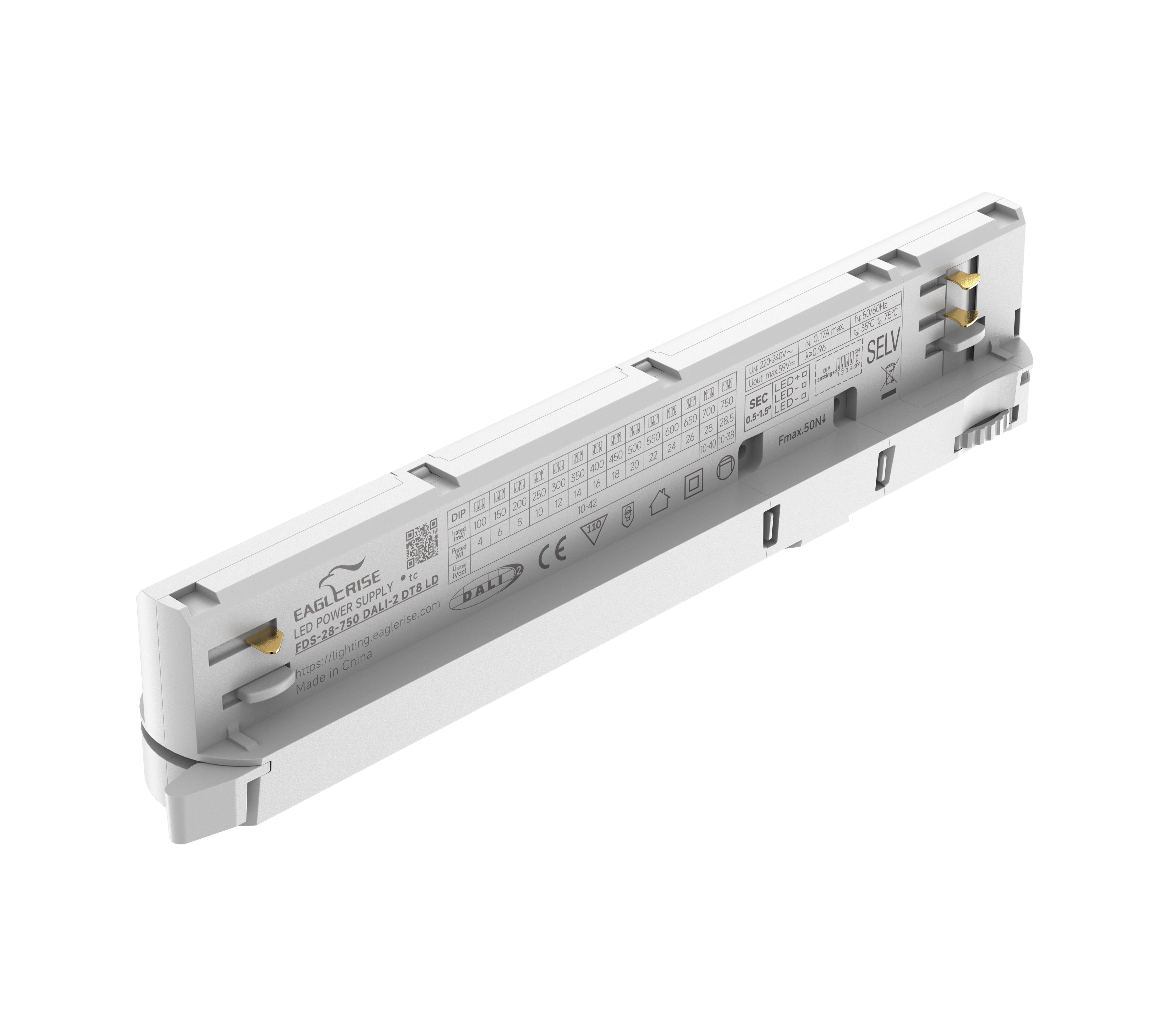

Product Image

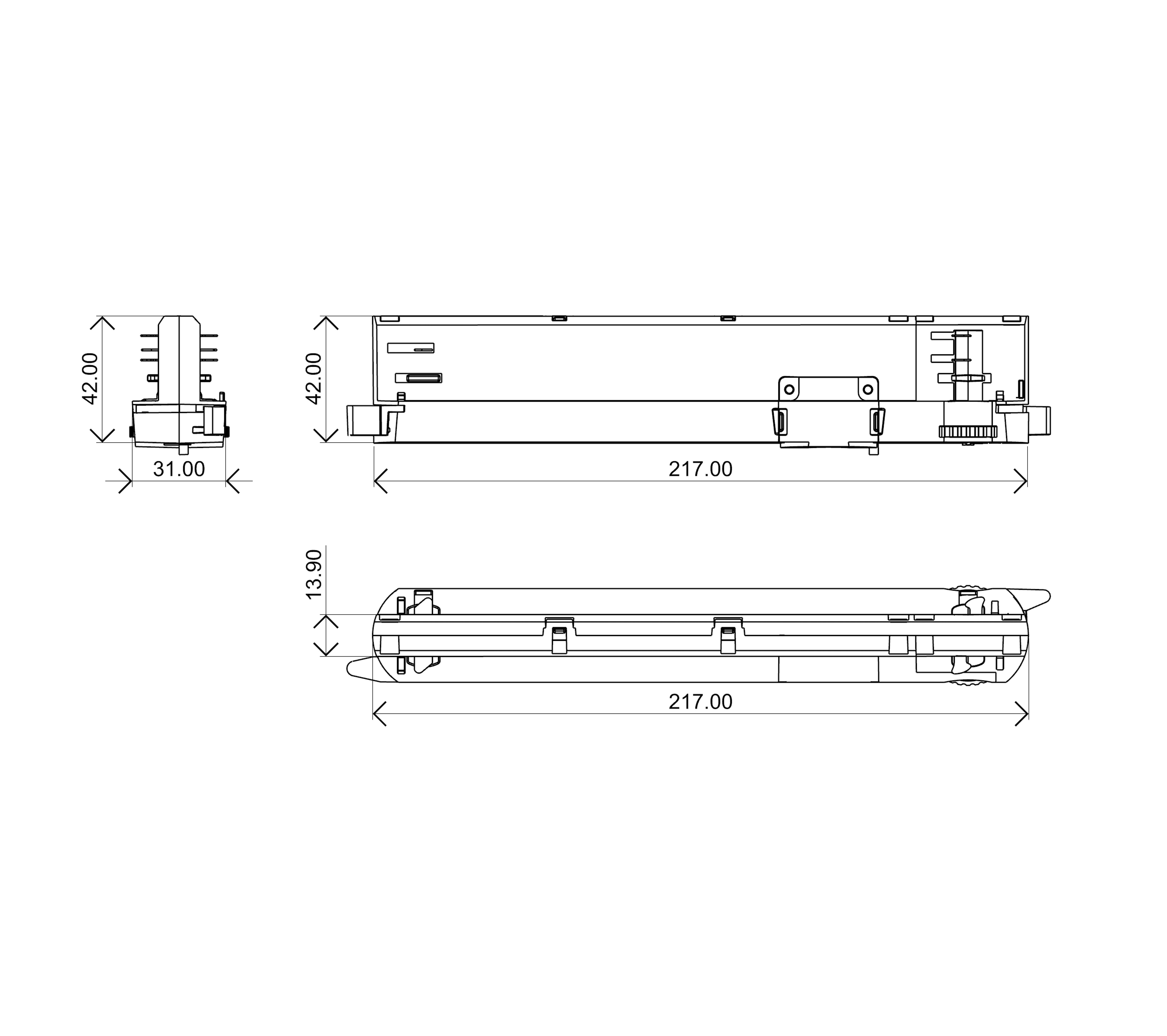

2D Line Drawing
Product Image
2D Line Drawing
28W | 100-750mA

FDS-28-750 DALI-2 DT8 LD

Product Description:

· For luminaire of protection class II

· Isolated / SELV  · Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Tunable White DT8,Push Dimming,  Corridor mode

· DALI-2 Parts 251, 252 and 253

· Dimming range 1% to 100%

· Output current adjusted via dip-switch;16 current steps

· 6 Wires 3 Ciruit DALI Track System

· Efficiency>88% ; Power Factor>0.95

· Adaptation to mainstream brands of rails

· Available in back,white and grey

· 5 years warranty

Click to Expand
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FDS-28-750 DALI-2 DT8 LD28W220-240VAC100-750mA10-42V88%0.95218*31*42mm
