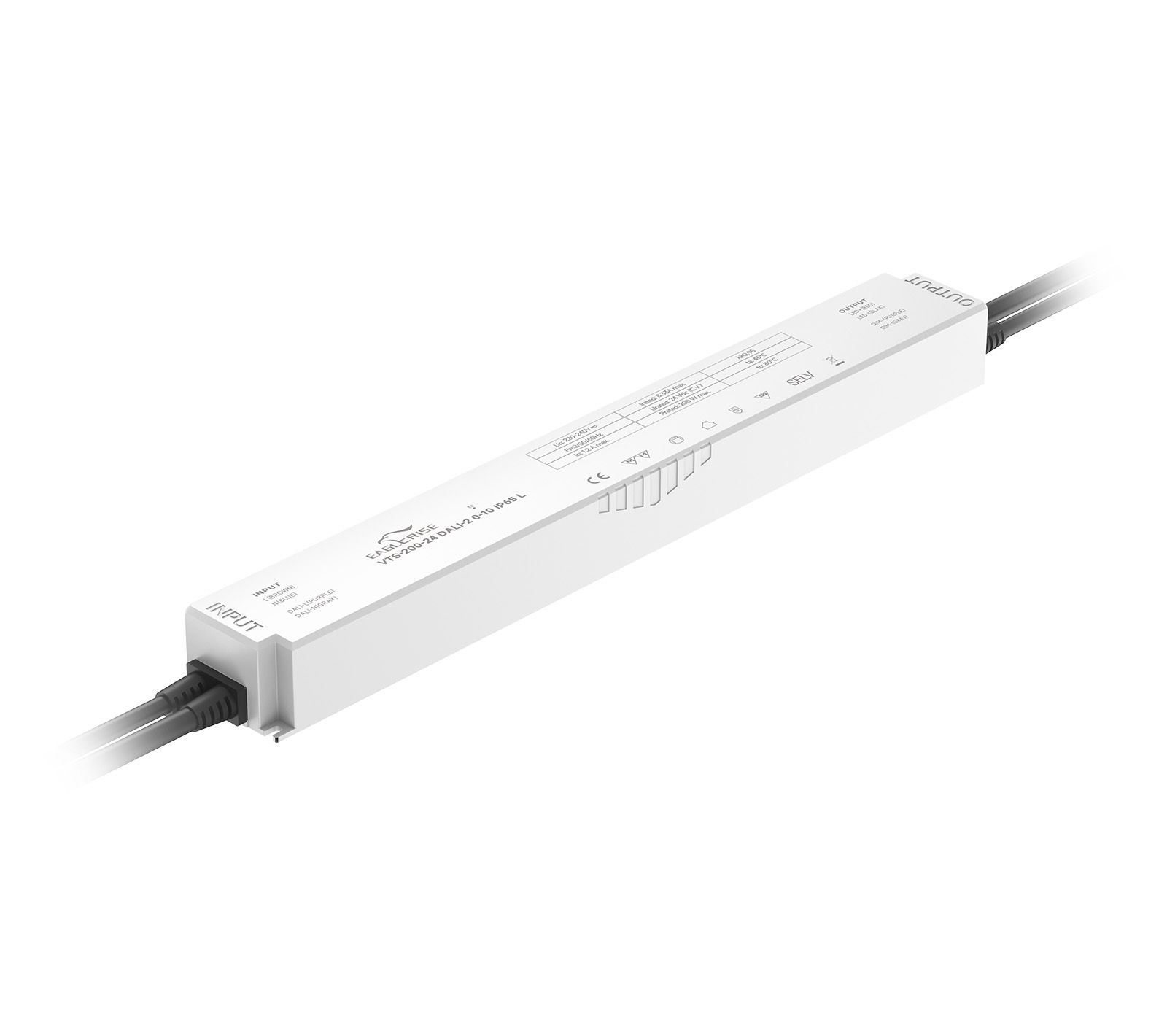

Product Image

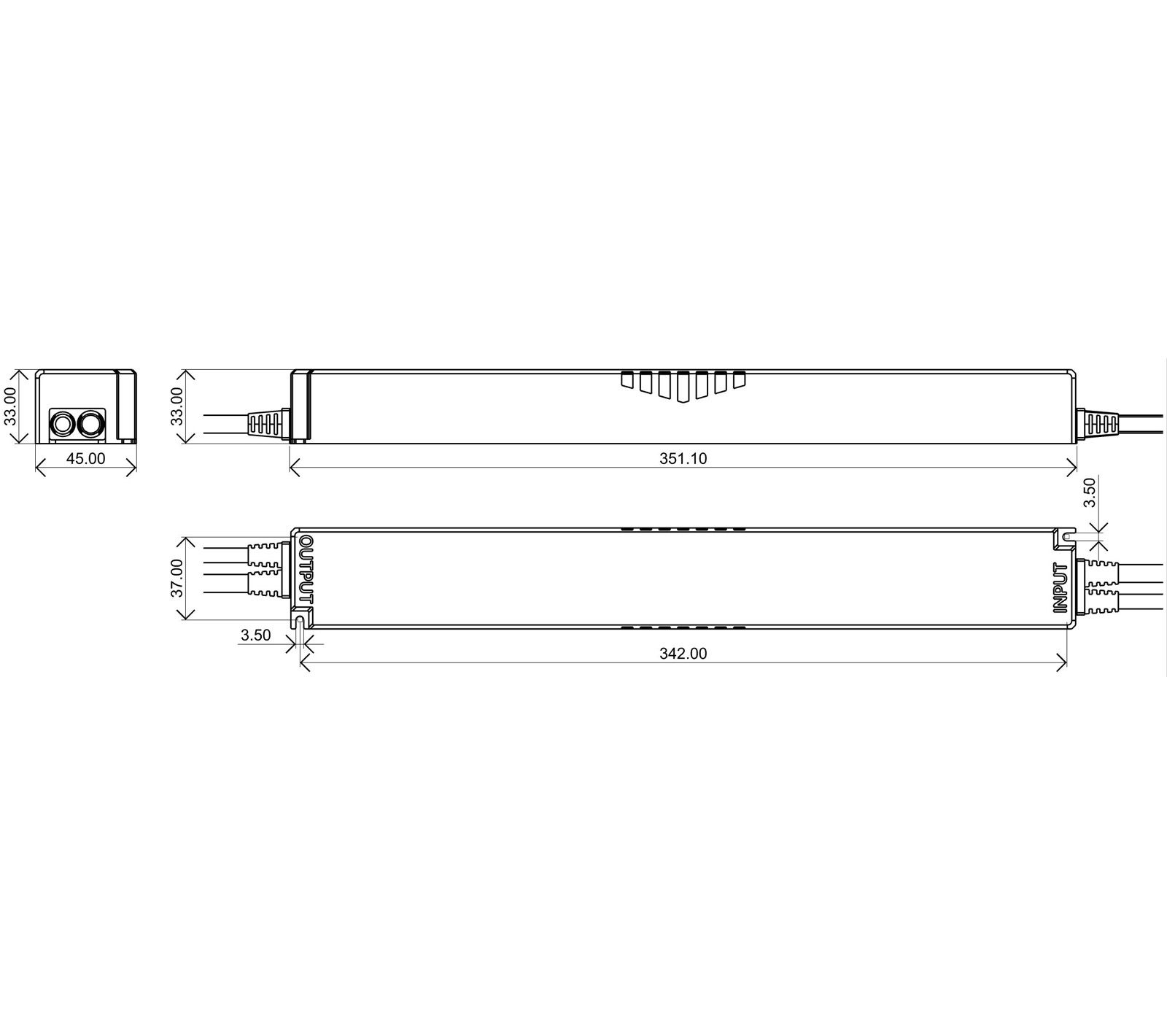

2D Line Drawing
Product Image
2D Line Drawing
200W | 24V

VTS-200-24 DALI-2 0-10 IP65 L

Product Description:

· High efficiency up to 91%

· Built-in active PFC function

· All-Around Protection: OLP, SCP, OTP

· Compact plastic Case, Free Air Convection

· Waterproof(IP65)

· Support DALI-2,Push,0-10V Dimming

· Input Surge Protection:1kV line-line

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
VTS-200-24 DALI-2 0-10 IP65 L200W220-240VAC0-8.33A24V91%0.95351*45*33mm
VTS-200-24 DALI-2 0-10 IP65 L spec REV C
Download All Files
