DALI-2
· For luminaire of protection class I and class II
· Isolated / SELV / Independent （With side caps）
· Input Voltage 220-240 VAC
· Protection: SCP/ OLP/ OVP/ OTP
· DALI Dimming，Push Dimming， Corridor mode
· Dimming range 1% to 100%
· Efficiency>89%
· Power Factor>0.95
· 5 years warranty
· Ta, Tc: 45°C/ 85°C

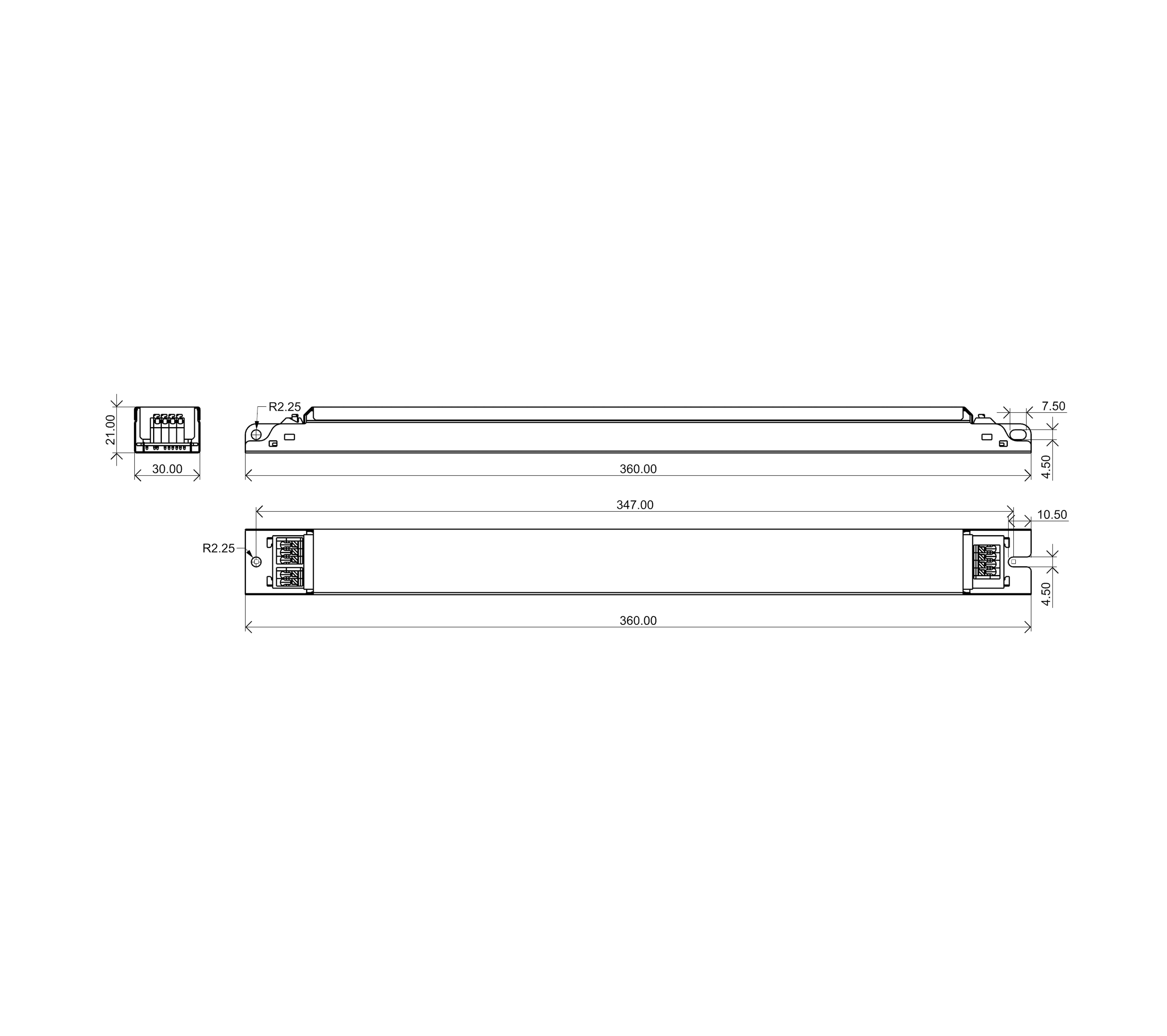

| Model | Power | Input Voltage | Output Current | Output Voltage | Efficiency | Power Factor | Size (L*W*H) |

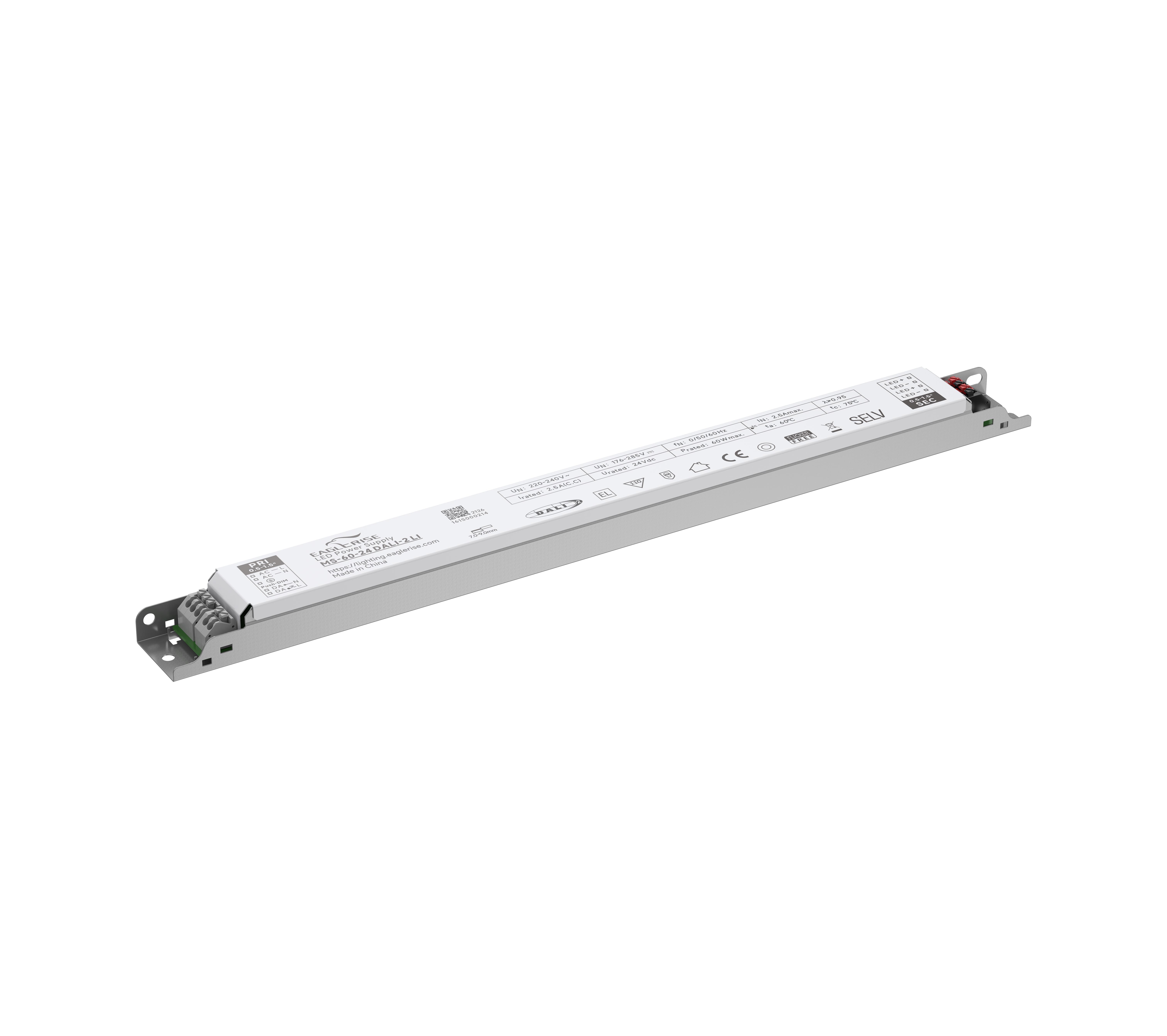

| MS-60-24 DALI-2 LI | 60W | 220-240VAC | 0-2.5A | 24V | 89% | 0.95 | 360*30*21mm |
