· For luminaire of protection class I and class II
· Isolated / SELV / Independent
· Input Voltage 220-240 VAC
· Protection: SCP/ OLP/ OVP/ OTP
· DALI Dimming,Push Dimming, Corridor mode
· DALI-2 Parts 251, 252 and 253
· Dimming range 1% to 100%
· Efficiency>89%
· Power Factor>0.95
· 5 years warranty
· Ta, Tc: 45°C/ 85°C
Model | Power | Input Voltage | Output Current | Output Voltage | Efficiency | Power Factor | Size (L*W*H) |

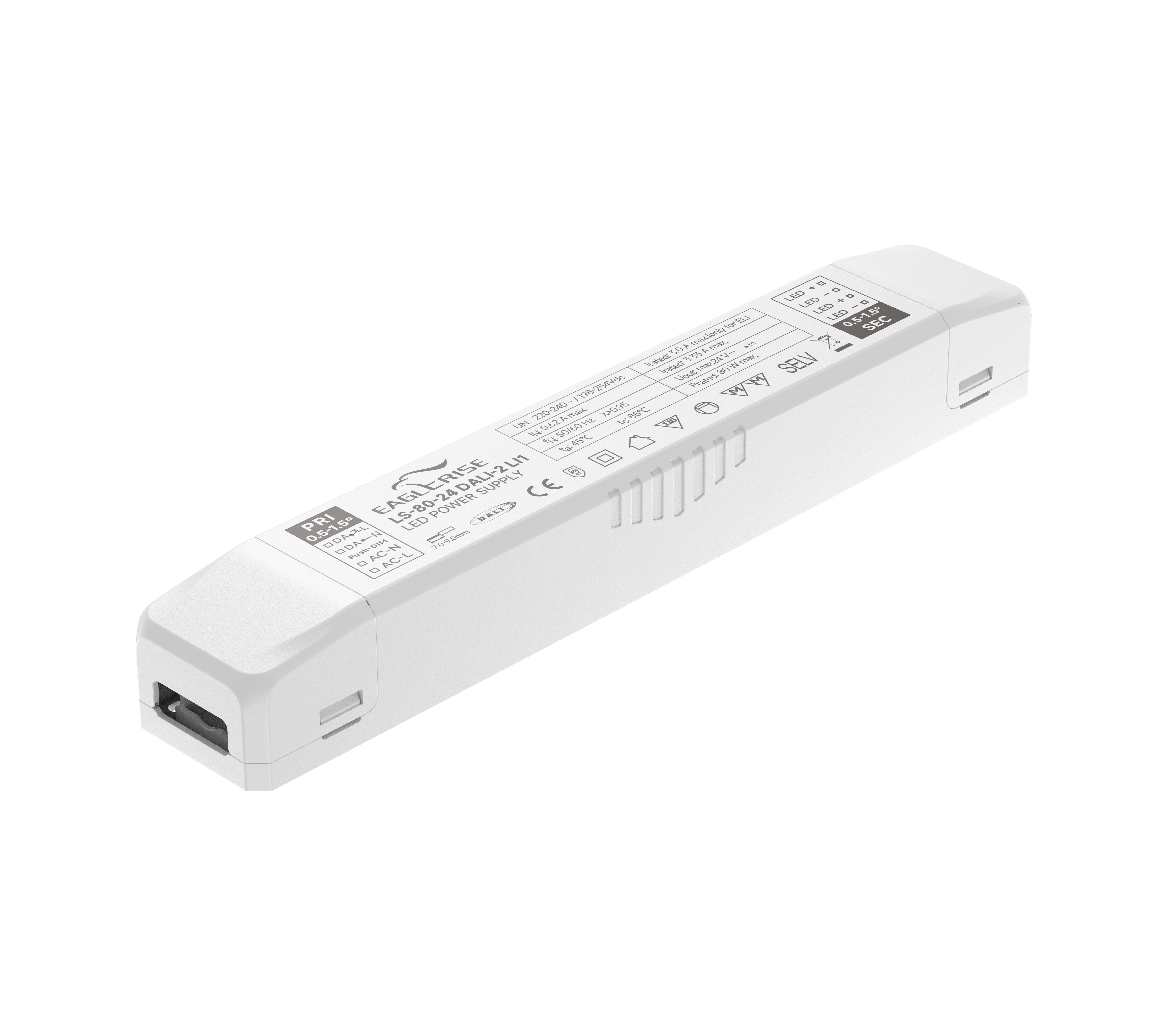

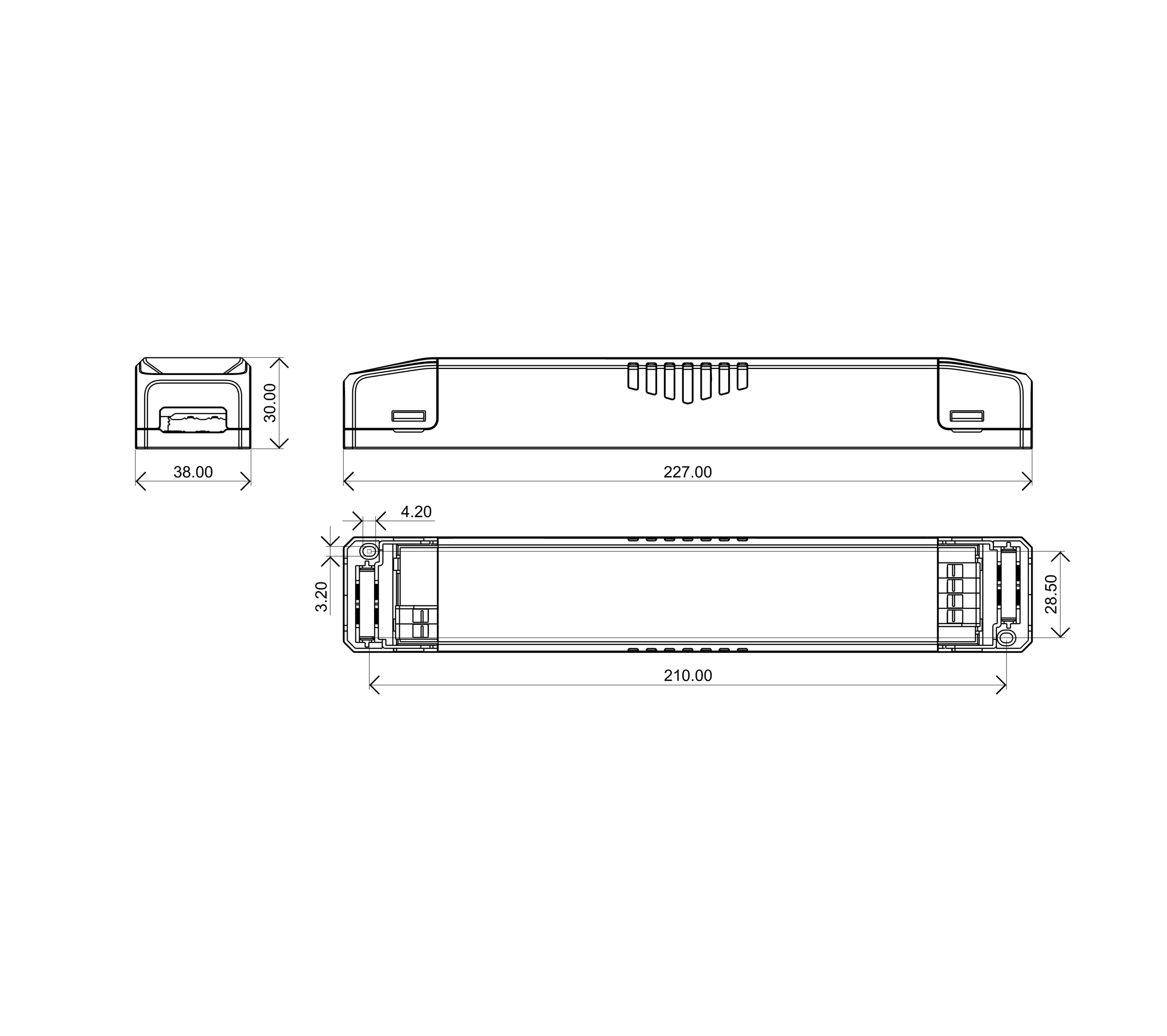

LS-80-24 DALI-2 LI1 | 80W | 220-240VAC | 0-3.33A | 24V | 89% | 0.95 | 227*38*30mm |
