DALI-2
DALI-2

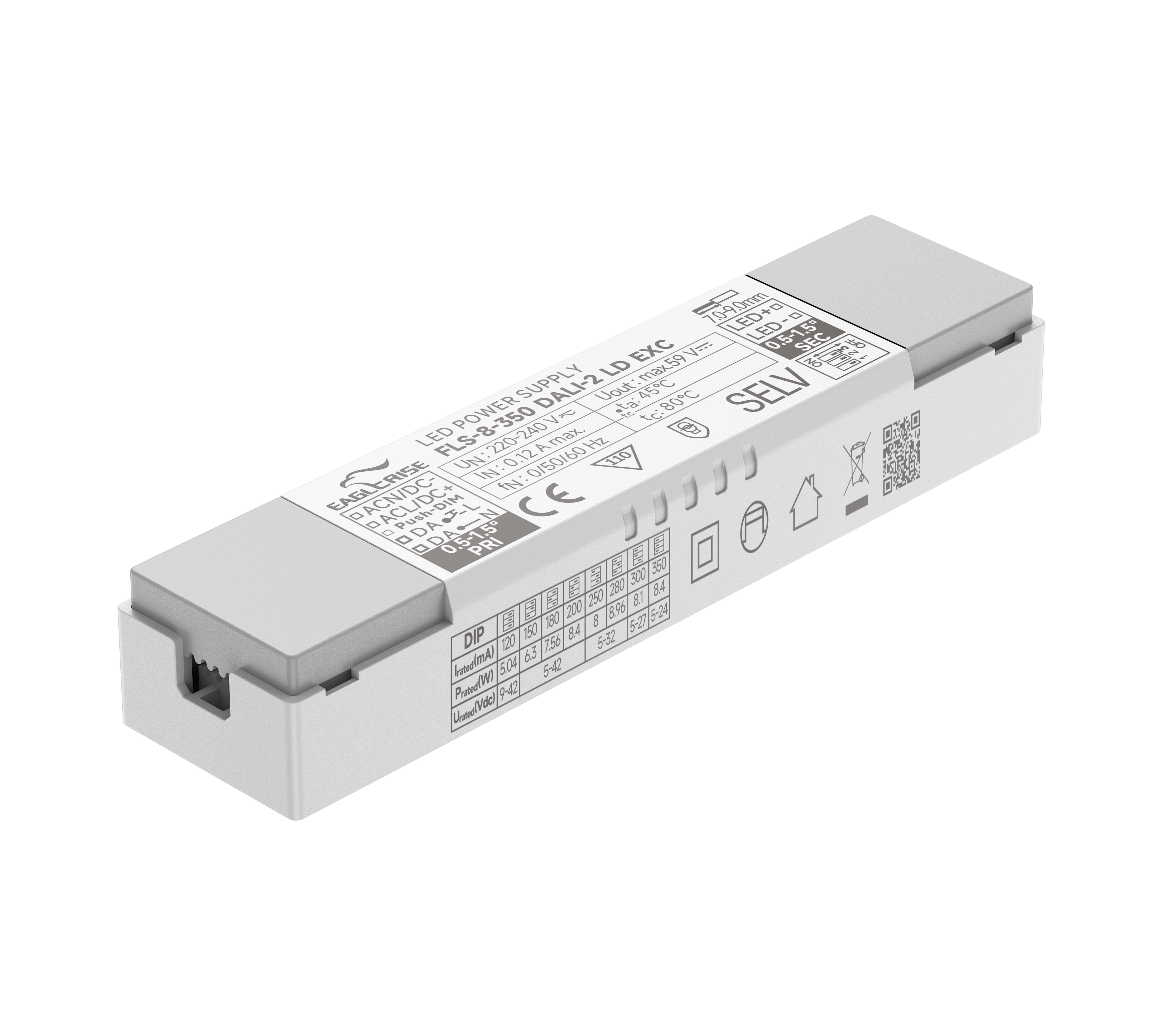

Product Image

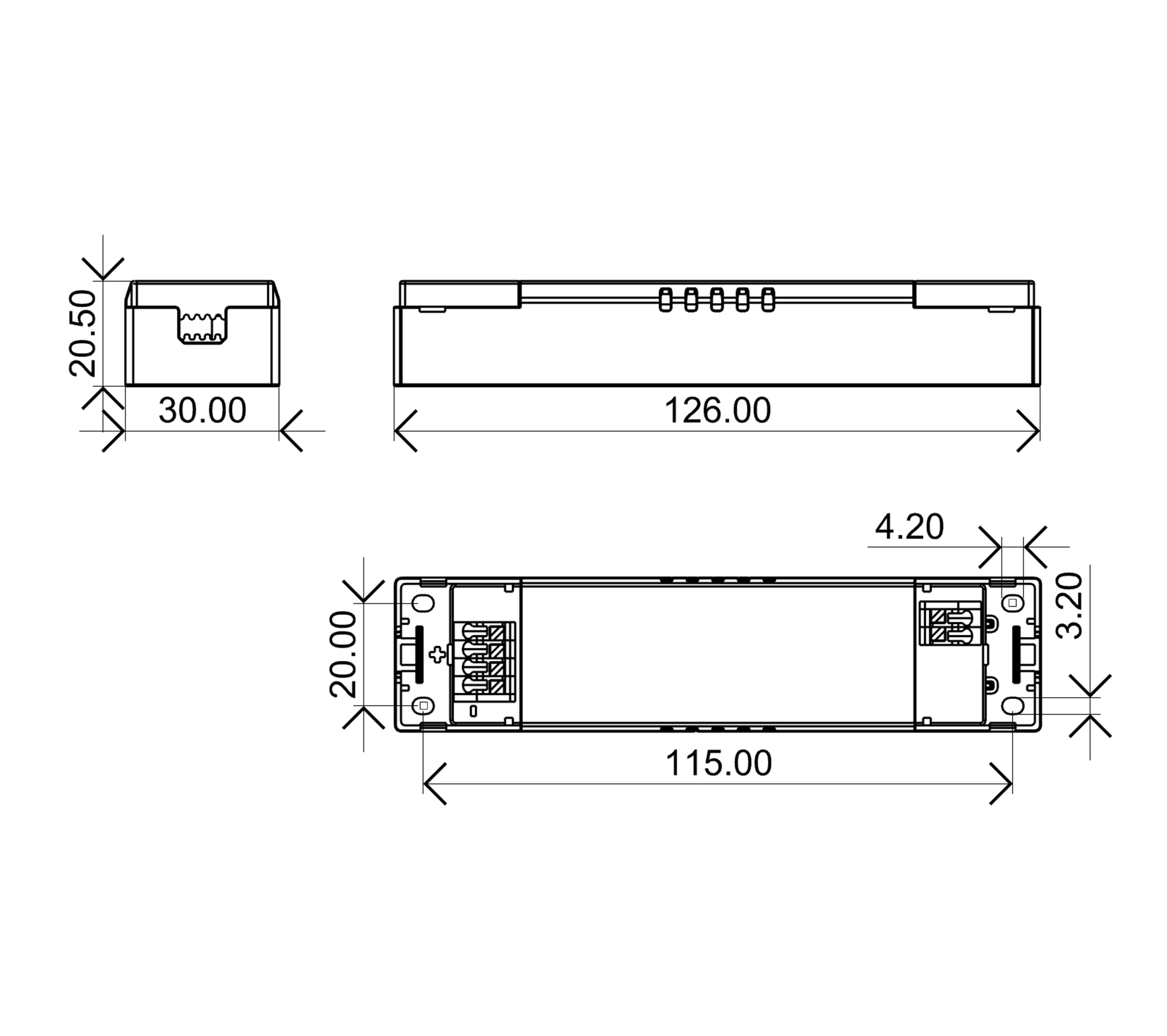

2D Line Drawing
Product Image
2D Line Drawing
8W | 80-350mA

FLS-8-350 DALI-2 LD EXC

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· DALI dimming,Push Dimming,Corridor mode

· DALI-2 Parts 251, 252 and 253

· Dimming range 1% to 100%

· Output current adjusted via dip-switch

· Efficiency>80% ; Power Factor>0.95

· Suitable for emergency lighting acc. to EN 50172

· 5 years warranty

· Ta, Tc: 45°C/ 75°C

Click to Expand
Models
Datasheet
Certificate
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-8-350 DALI-2 LD EXC8W220-240VAC80-350mA9-42VDC80%0.95126*30*20.5mm


Tags:
Related Products
12W | 150-500mA
FLS-12-500 DALI-2 LD EXC
