12W | 500-700mA

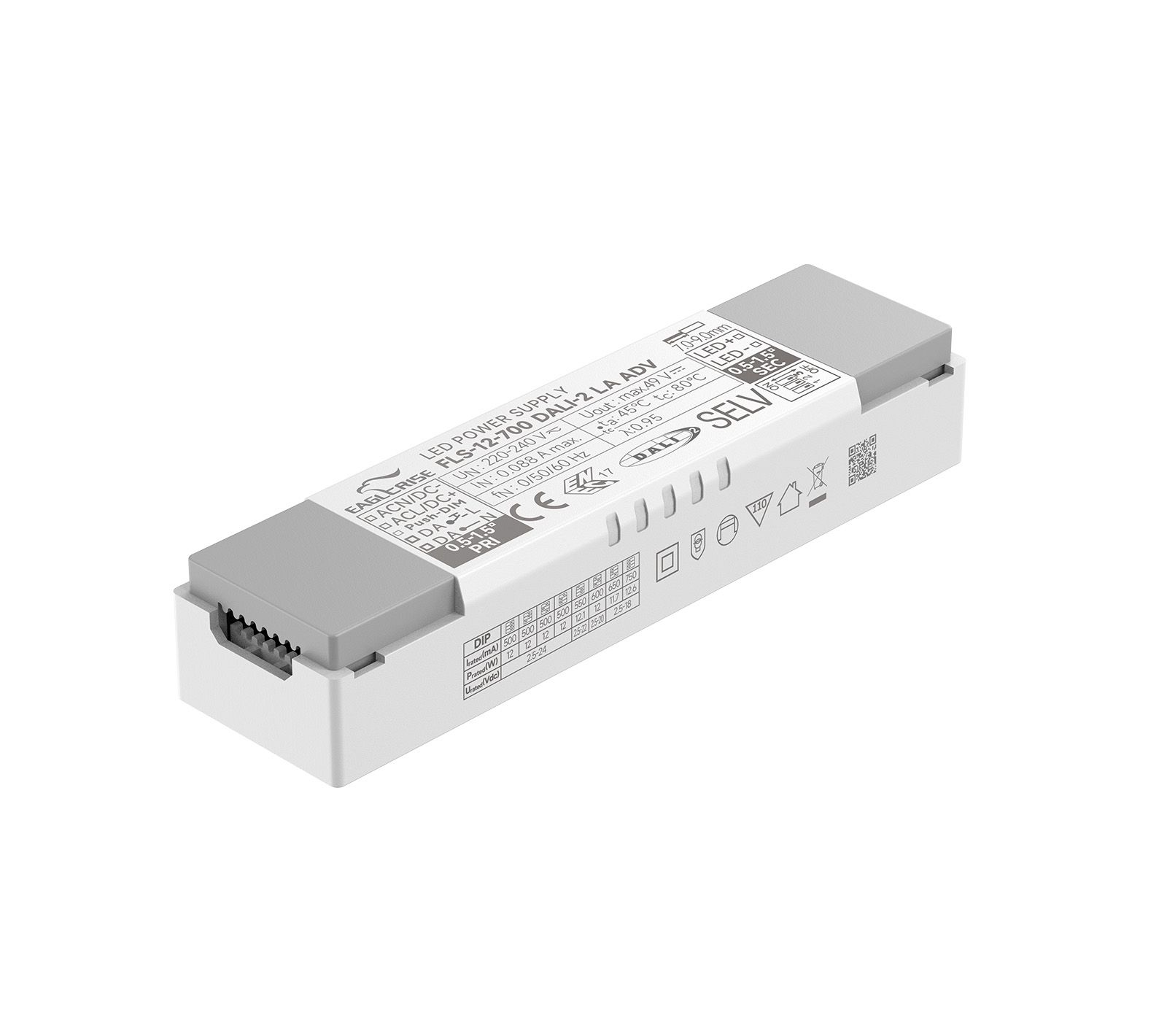

FLS-12-700 DALI-2 LA ADV

Product Description:

· For luminaries of protection Class II，SELV，Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor ：0.95

· Efficiency ：84%

· Support DALI-2,Push Dimming

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-12-700 DALI-2 LD ADV12W220-240VAC500-700mA2.5-24V84%0.95115*30*20.5mm


FLS-12-700 DALI-2 LA ADV spec REV A
