· For luminaire of protection class II
· Isolated / SELV / Independent
· Input Voltage 220-240 VAC
· Protection: SCP/ OLP/ OVP/ OTP
· DALI dimming,Push Dimming,Corridor mode
· DALI-2 Parts 251, 252 and 253
· Dimming range 1% to 100%
· Output current adjusted via dip-switch
· Efficiency>85% ; Power Factor>0.95
· Suitable for emergency lighting acc. to EN 50172
· 5 years warranty
· Ta, Tc: 45°C/ 75°C
Models | Power | Input Voltage | Onput Current | Onput Voltage | Efficiency | Power Factor | Size |

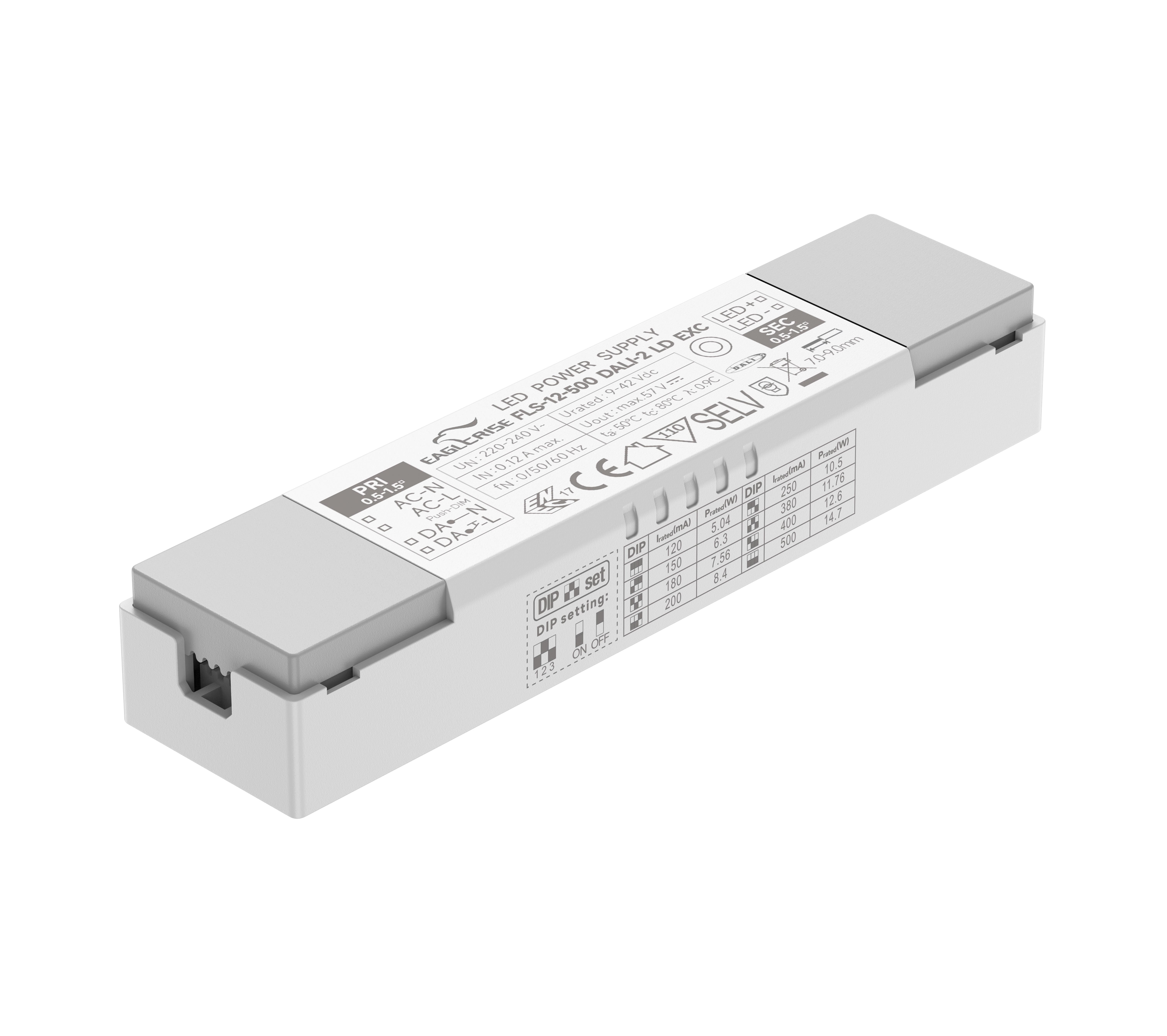

FLS-12-500 DALI-2 LD EXC | 12W | 220-240VAC | 150-500mA | 9-42VDC | 85% | 0.95 | 126*30*20.5mm |
