CV Drivers
CV Drivers
Home / Products / OSRAM LED Drivers / CV Drivers / ITS FIX 120/220-240/XX

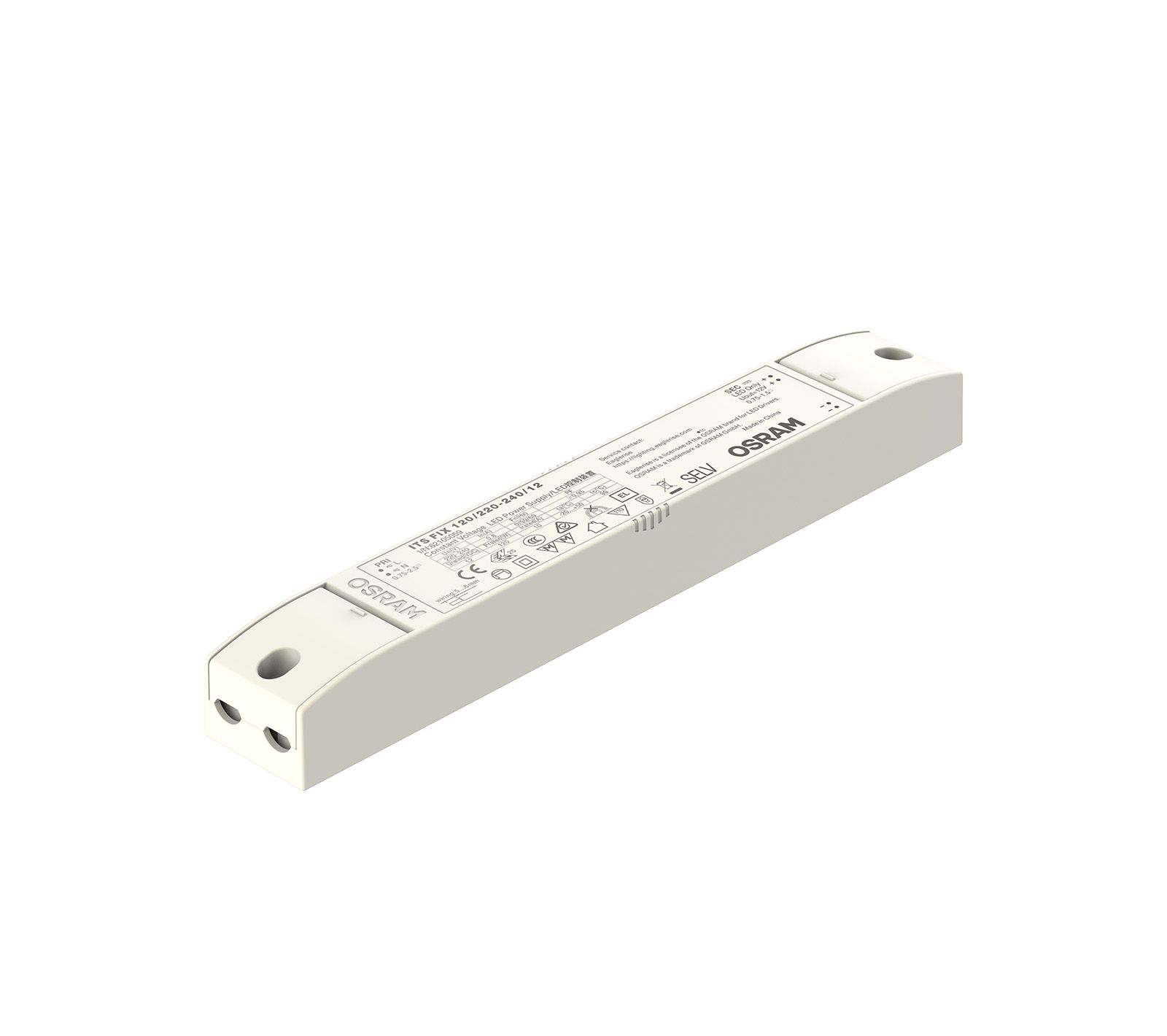

Product Image

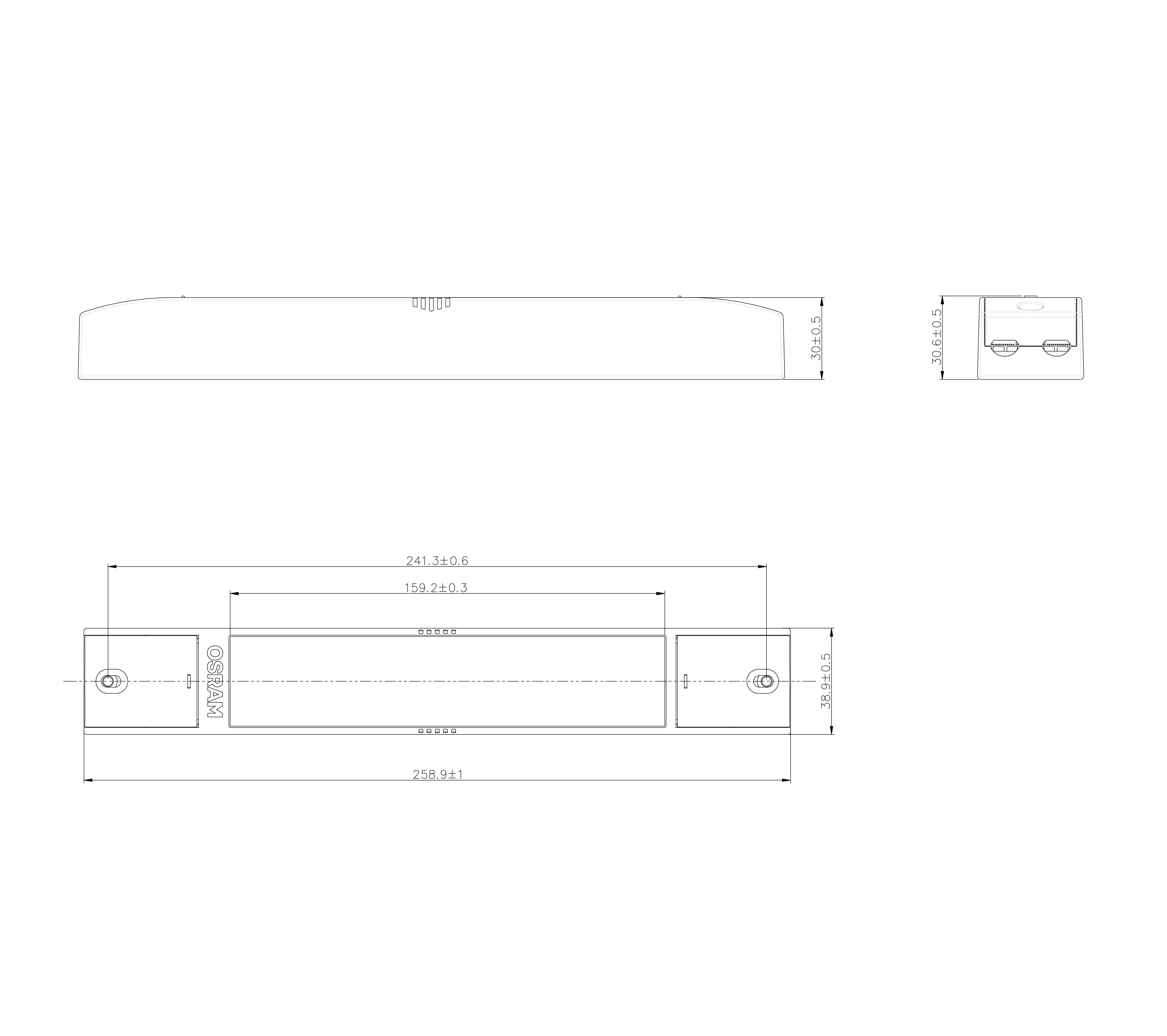

2D Line Drawing
Product Image
2D Line Drawing
120W | 12/24V

ITS FIX 120/220-240/XX

Product Description:

· For luminaire of protection class I or II
· Isolated / SELV / Independent
· Input Voltage 220-240 VAC
· Protections: SCP/ OLP/ OVP/ OTP
· Power Factor 0.95
· Efficiency up to 93%
· Suitable for emergency lighting acc. to EN 50172
· EOFi=100%
· 5 years warranty
· Surge: 2kV
· Ta: 50°C

Click to Expand
Inquire Now
Models
Item NO.ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPFSize (L*W*H)
62105059ITS FIX 120/220-240/12120W220-240VAC0-10A12V91%0.95259*39*30mm
62105069ITS FIX 120/220-240/24120W220-240VAC0-5A24V93%0.95259*39*30mm


Related Products
ITS FIX 30/220-240/XX
30W | 12/24V
ITS FIX 30/220-240/XX
ITS FIX 60/220-240/XX
60W | 12/24V
ITS FIX 60/220-240/XX
ITS FIX 250/220-240/24
250W | 24V
ITS FIX 250/220-240/24
