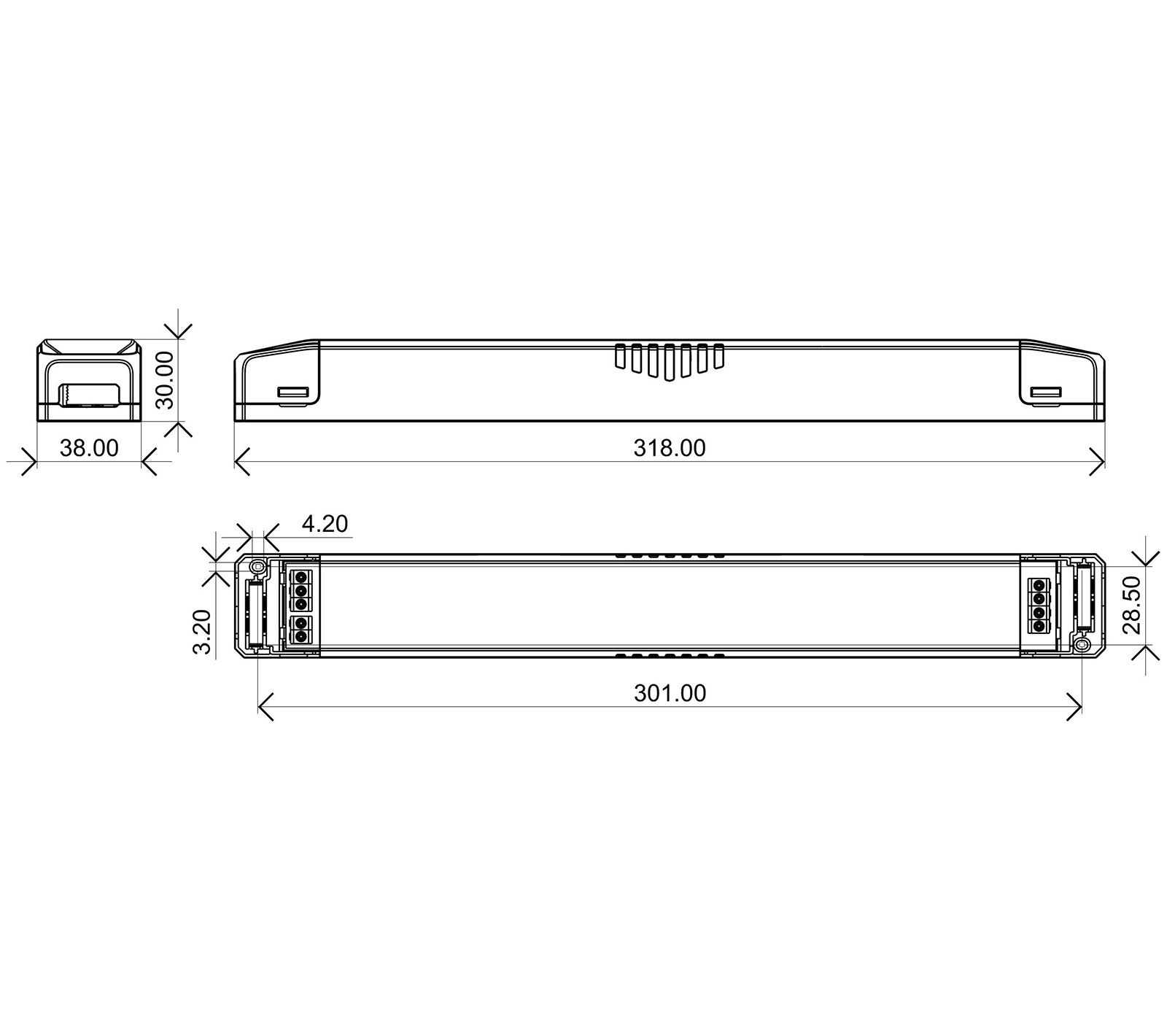

2D Line Drawing
Product Image
2D Line Drawing
150W | 24V

LS-150-24 0-10 LI

Product Description:

· Class II, SELV, Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OTP

· Power Factor: 0.95(Typ.)

· Efficiency: ≥92%(Typ.)

· 5 years warranty

· Support 0-10V, RX, PWM Dimming

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-150-24 0-10 LI150W220-240VAC0-6.25A24V92%0.95318*38*30mm


LS-150-24 0-10 LI spec REV C
Download All Files
