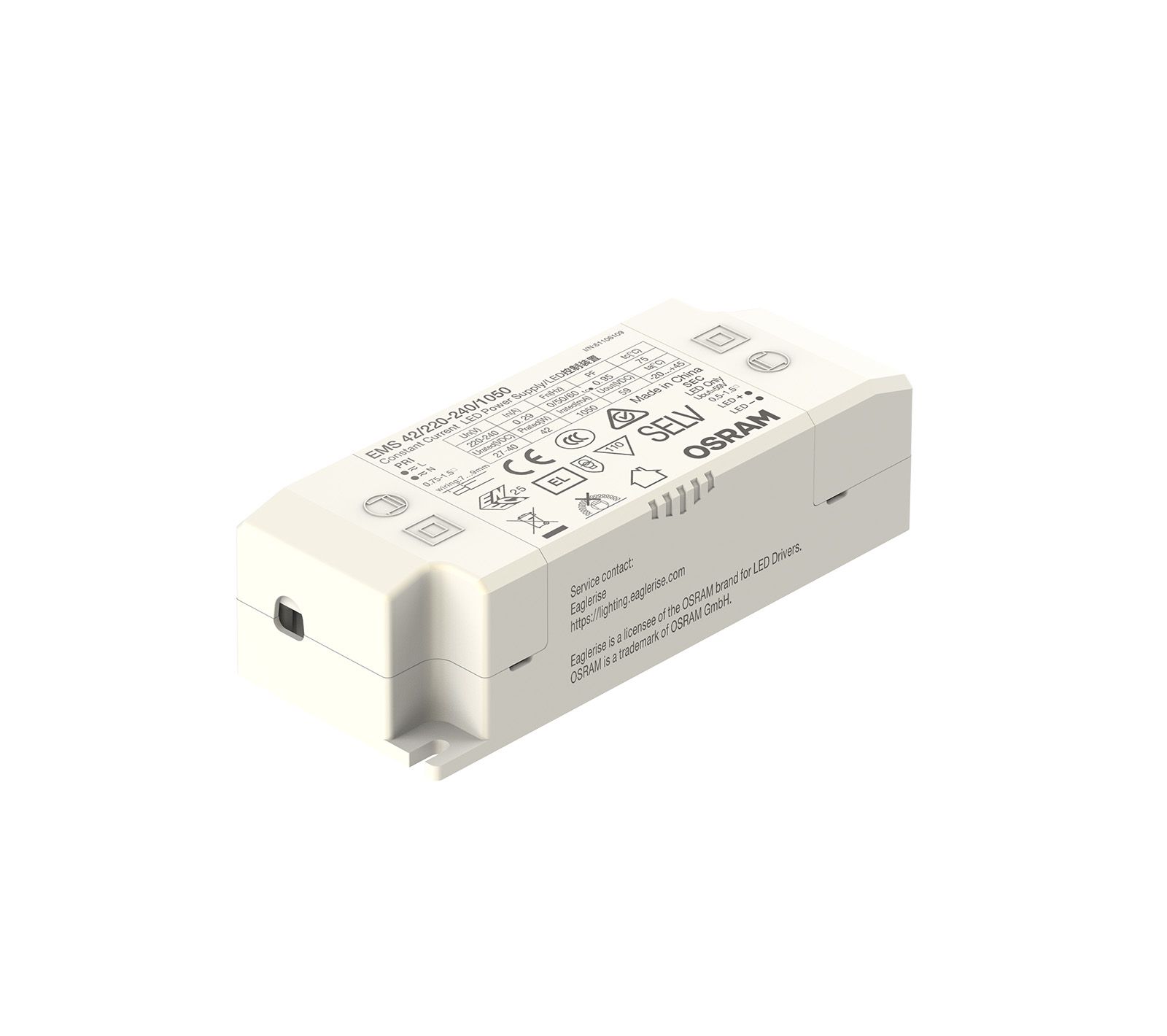

Product Image

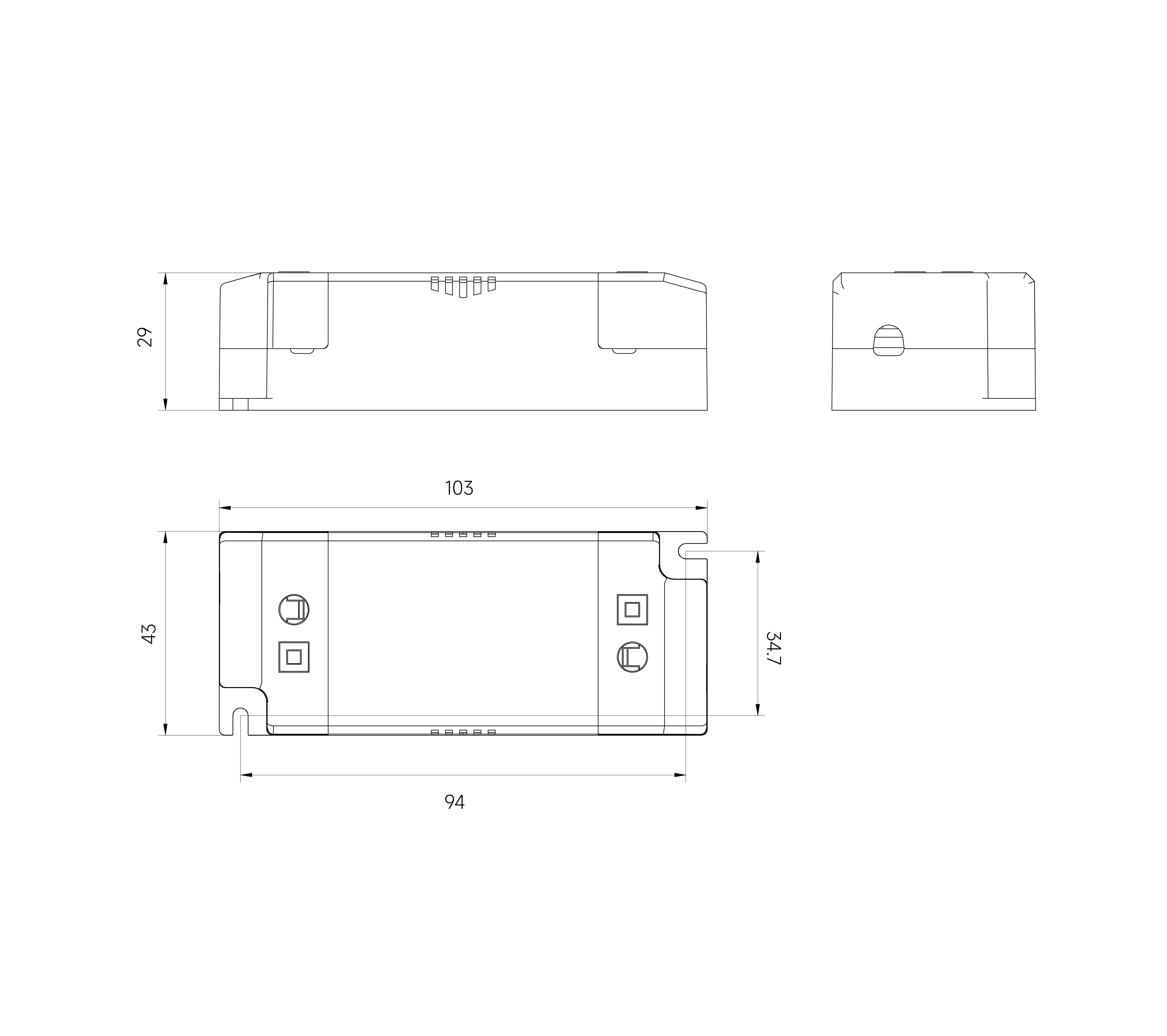

2D Line Drawing
Product Image
2D Line Drawing
42W | 1050mA

EMS 42/220-240/1050

Product Description:

· For luminaire of protection class I or II

· Suitable for emergency lighting acc. to EN 50172
· Output current: 1050 mA
· SELV, Urated: 27 - 42 V
· For independent use
· Input Voltage:220 - 240 Vac
· Power Factor: 0.95 (Typ.)

· Efficiency: 90 % (Typ.)

· Ta range: -20 ... +45 ℃
· Surge capability: 2 kV
· 5 years guarantee
· Protection: SCP / OLP / OVP / OTP


Click to Expand
Models
Datasheet
Item NO.ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPFSize (L*W*H)
61106109EMS 42/220-240/105042W220-240VAC1050mA27-40V90%0.95103*43*29mm
