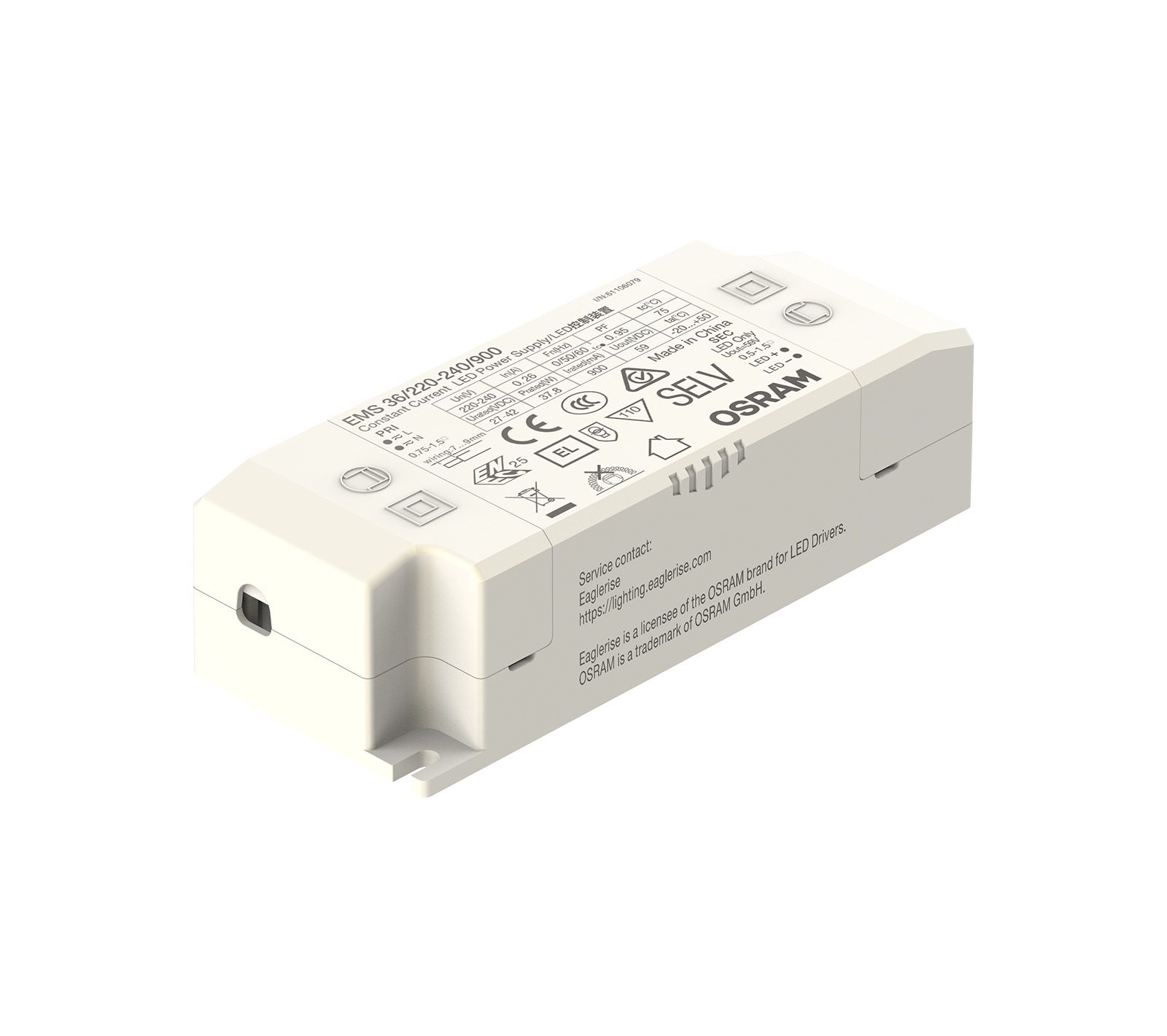

Product Image
2D Line Drawing
Product Image
2D Line Drawing
36W | 900mA

EMS 36/220-240/900

Product Description:

· For luminaire of protection class I or II

· Suitable for emergency lighting acc. to EN 50172
· Output current:900mA
· SELV, Urated: 27 - 42 V
· For independent use
· Input Voltage：220 - 240 Vac
· Power Factor: 0.95 (Typ.)

· Efficiency: 89 % (Typ.)

· Ta range: -20 ... +50 ℃
· Surge capability: 2 kV
· 5 years guarantee
· Protection: SCP / OLP / OVP / OTP

Click to Expand
Inquire Now
Models
Datasheet
Item NO.ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPFSize (L*W*H)
61106079EMS 36/220-240/90036W220-240VAC900mA27-42V89%0.95103*43*29mm


OSRAM_61106079_EMS_36_220-240_900_DS_V1.0_EN_20260608
