15W | 350mA

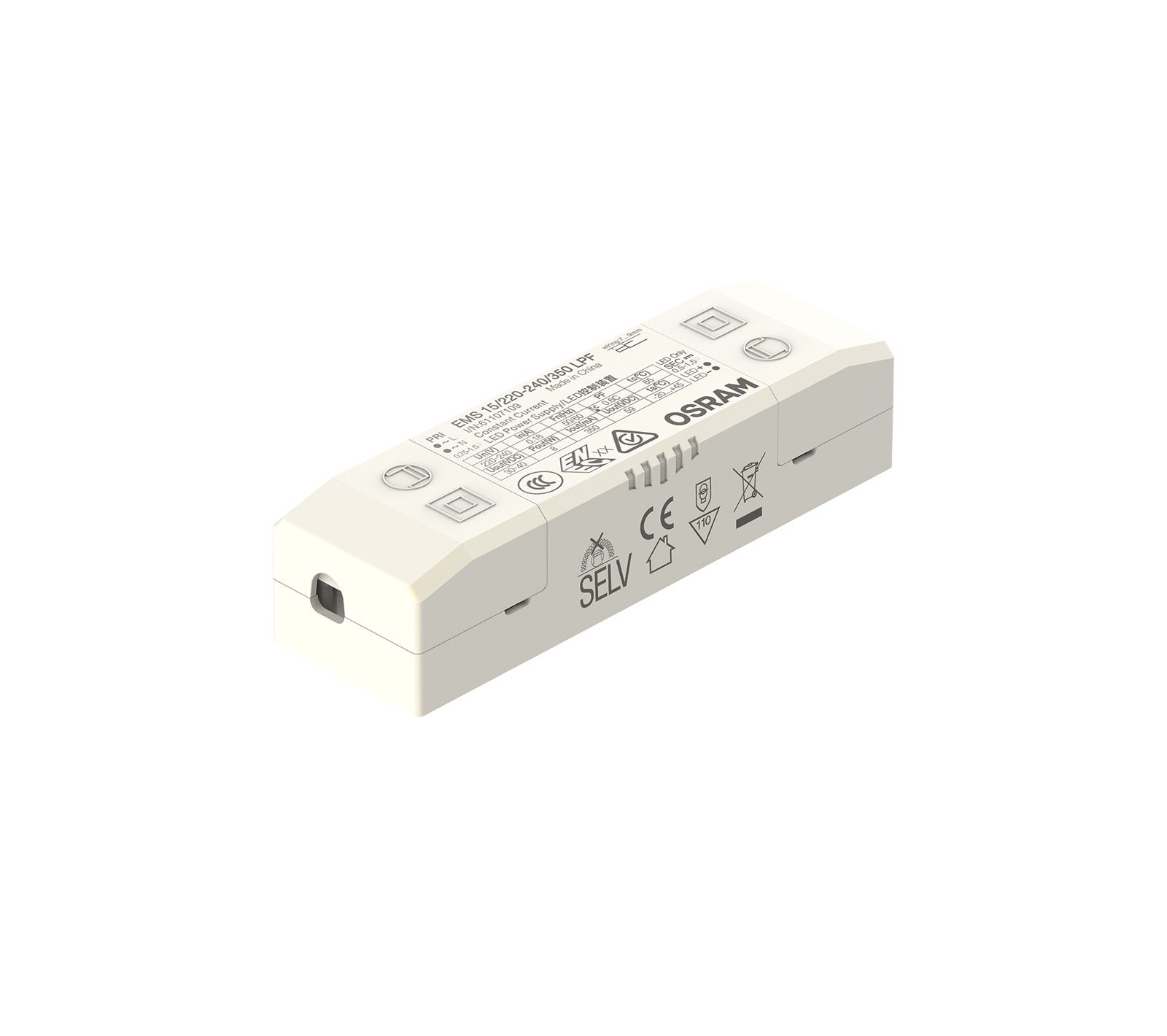

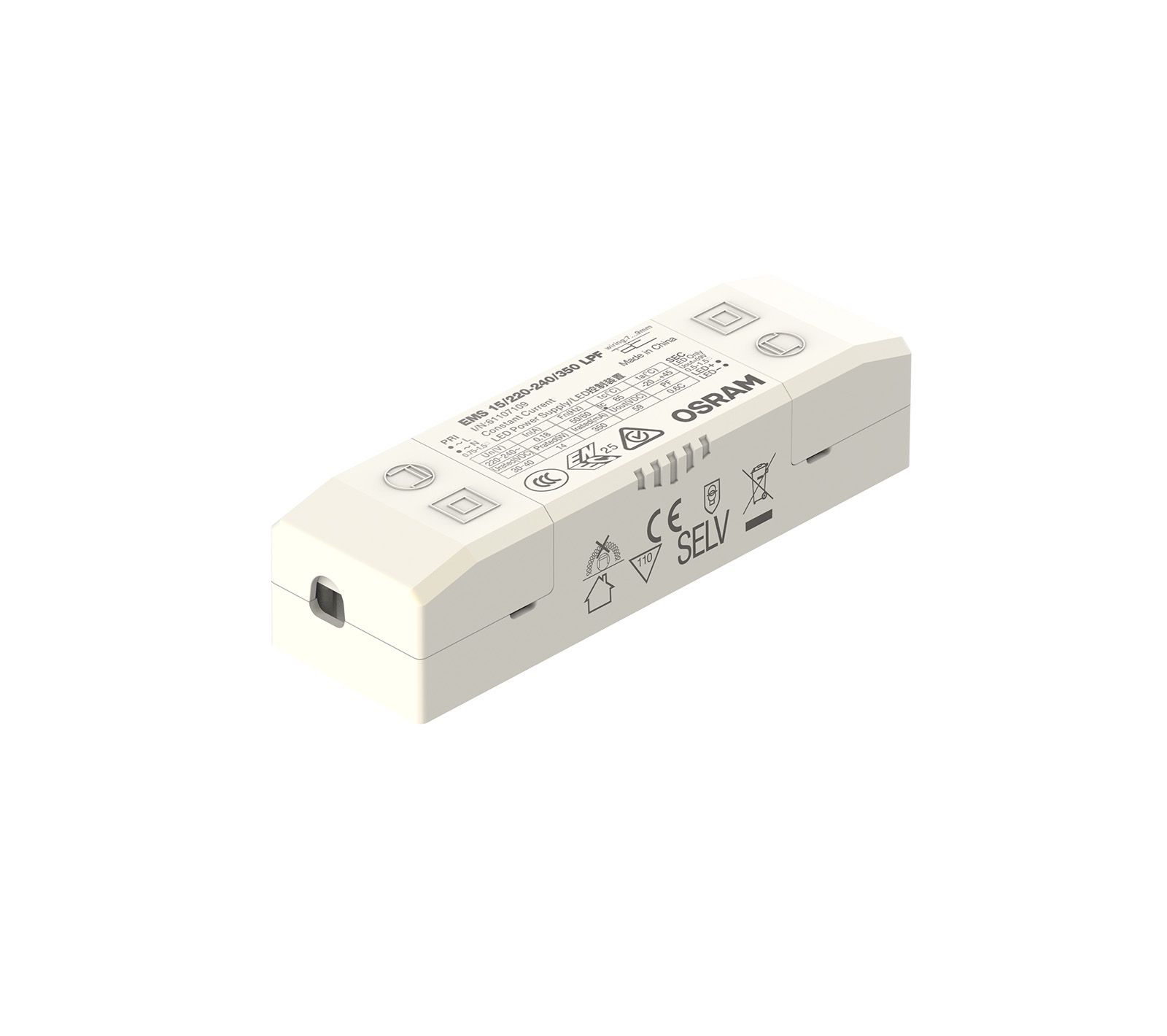

EMS 15/220-240/350 LPF

Product Description:

· For luminaire of protection class II
· Isolated / SELV / Independent
· Input Voltage 220-240 VAC
· Protections: SCP/ OLP/ OVP/ OTP
· Efficiency up to 85%
· 5 years warranty
· Ta: 45°C
· Mini size

Click to Expand
Inquire Now
Models
Item NO.ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPFSize (L*W*H)

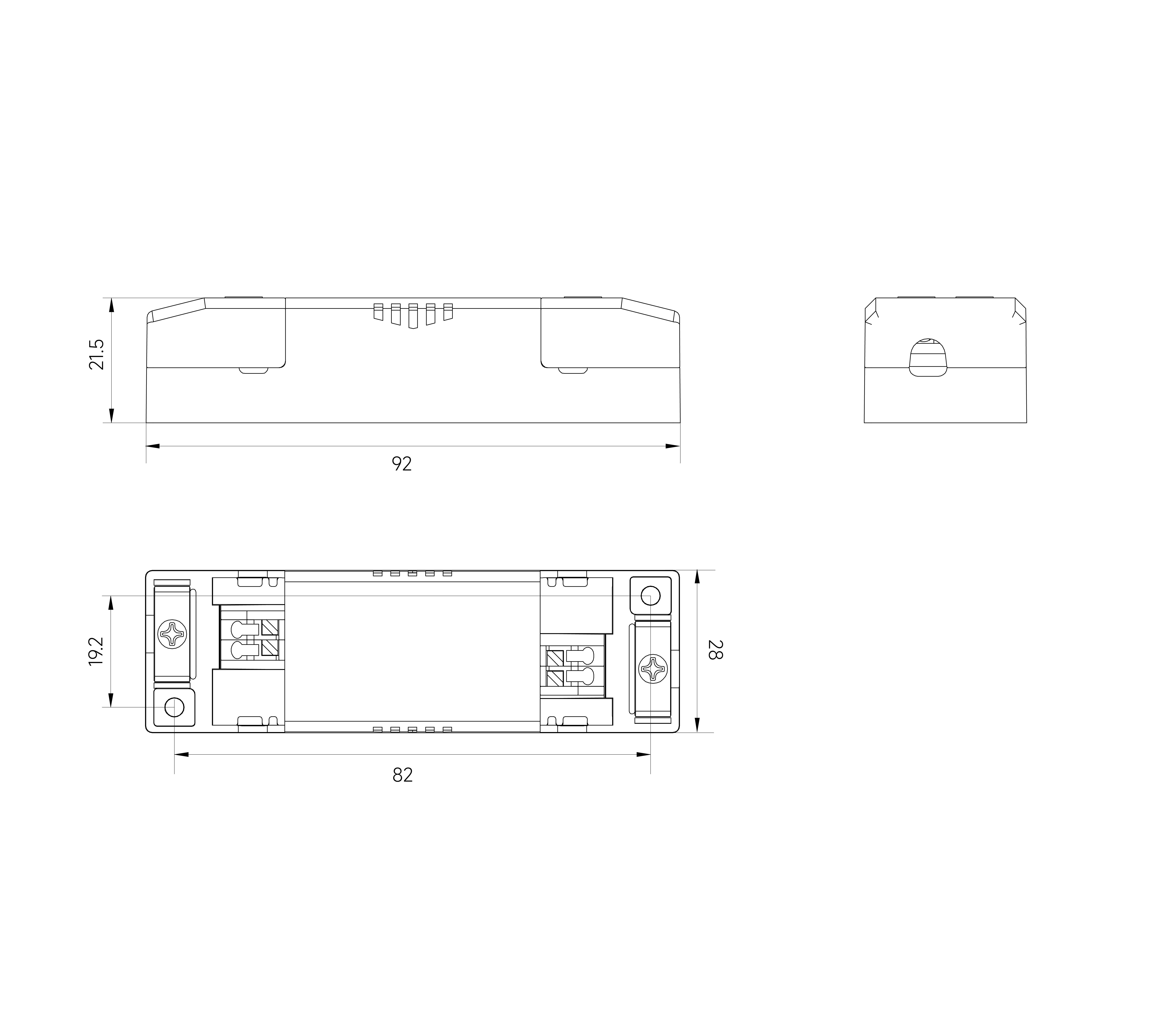

61107109EMS 15/220-240/350 LPF15W220-240VAC350mA30-40V82%0.5592*28*21mm
