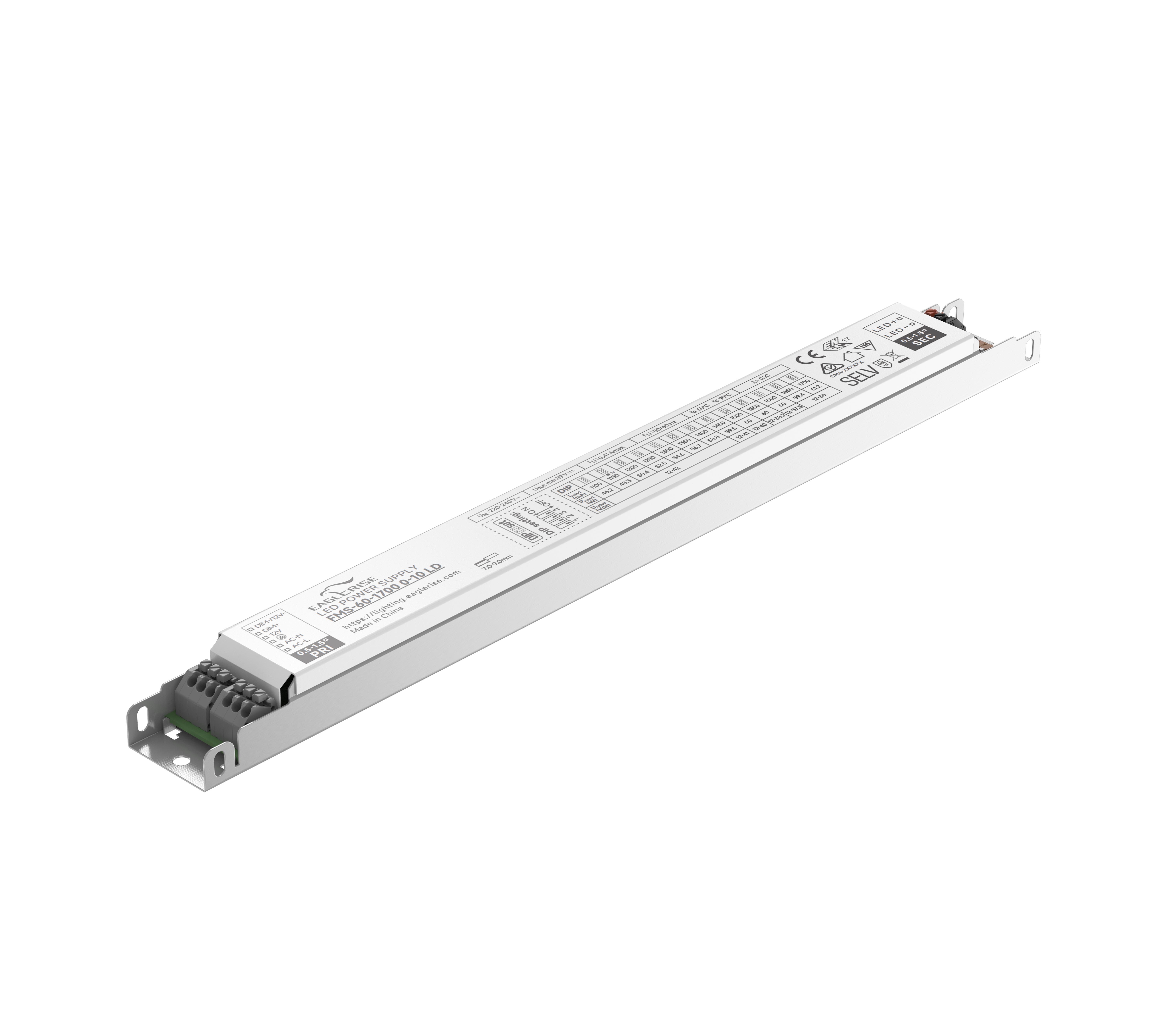

FMS-60-1700 0-10 LD

Product Description:

· Class I，SELV ，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP

· Power Factor : 0.65C-0.95

· Efficiency : 88%(Typ.)

· Support 0-10V Dimming

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size

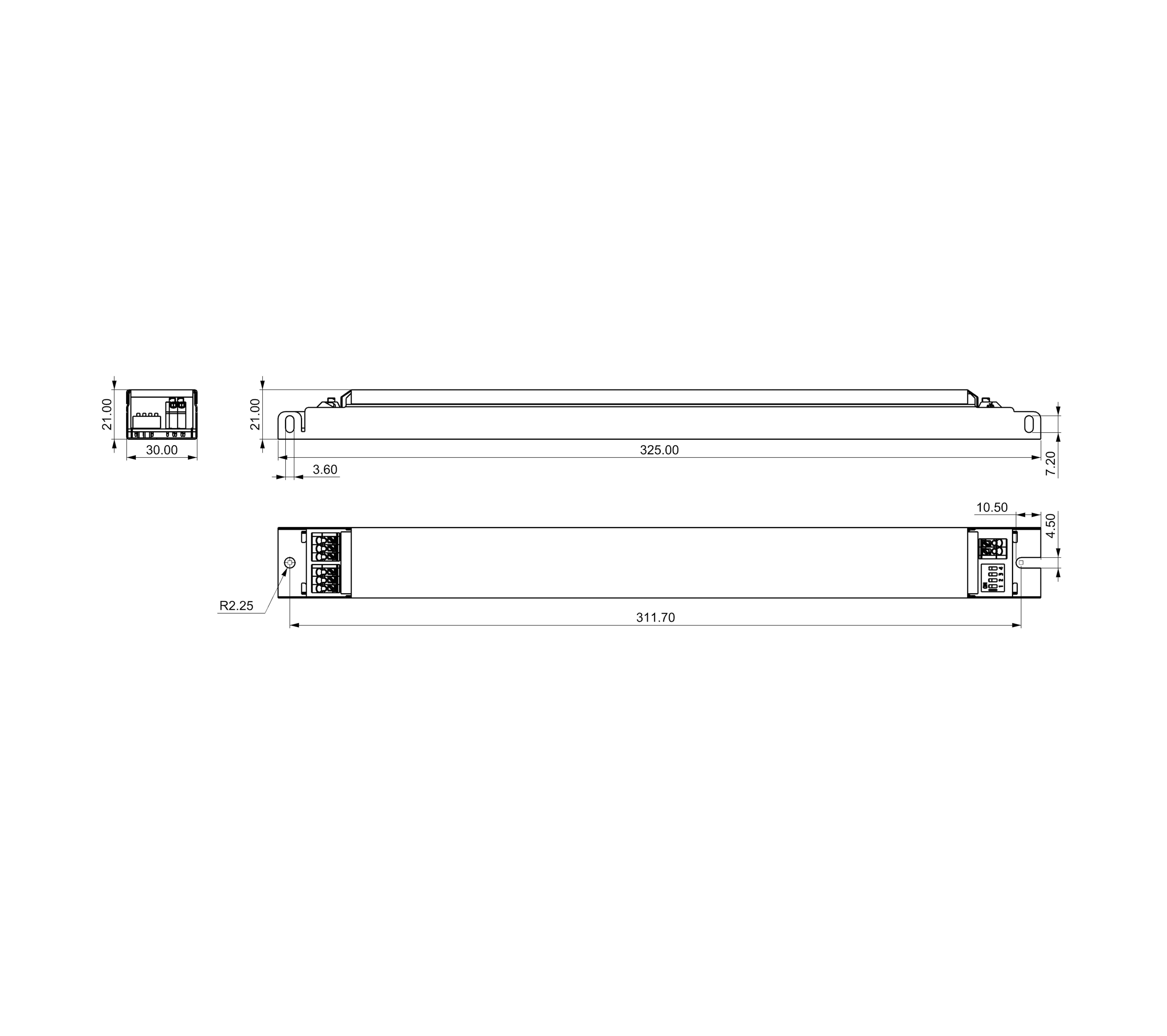

FMS-60-1700 0-10 LD	60W	220-240VAC	1100-1700mA	12-42V	88%	0.95	3253021mm

FMS-60-1700 0-10 LD spec REV A

Download All Files

Related Products

44W | 650-1050mA

FMS-44-1050 0-10 LD

80W | 1550-2000mA

FMS-80-2000 0-10 LD

25W | 200-600mA

FMS-25-600 0-10 LD
