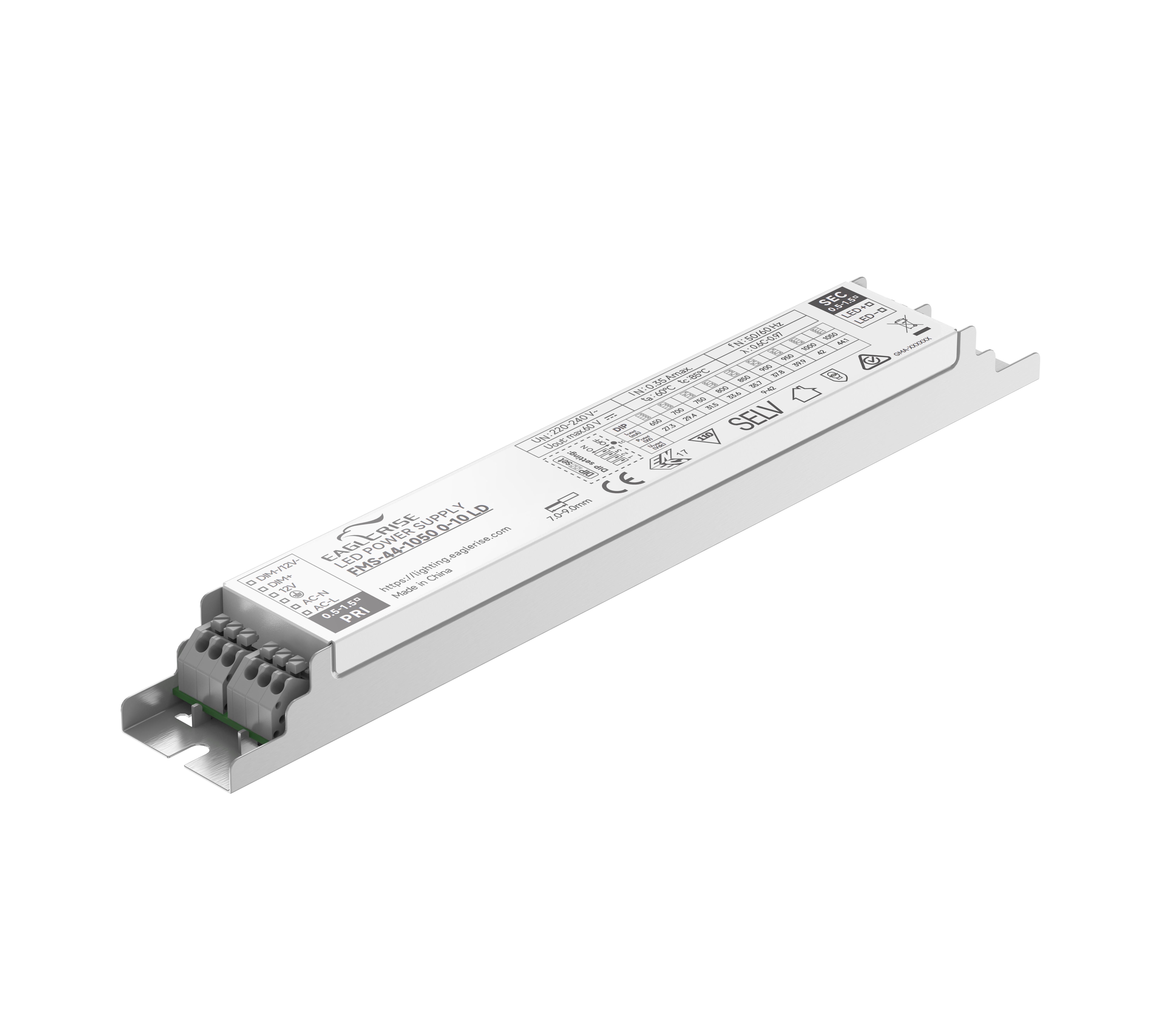

FMS-44-1050 0-10 LD

Product Description:

· Class I，SELV ，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP

· Power Factor : 0.6C-0.95

· Efficiency : 88%(Typ.)

· Support 0-10V Dimming

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
FMS-44-1050 0-10 LD	44W	220-240VAC	650-1050mA	9-42V	88%	0.95	2203021mm

FMS-44-1050 0-10 LD spec REV A

Download All Files

Related Products

25W | 200-600mA

FMS-25-600 0-10 LD

60W | 1100-1700mA

FMS-60-1700 0-10 LD

80W | 1550-2000mA

FMS-80-2000 0-10 LD
