0-10V
0-10V
Product Image

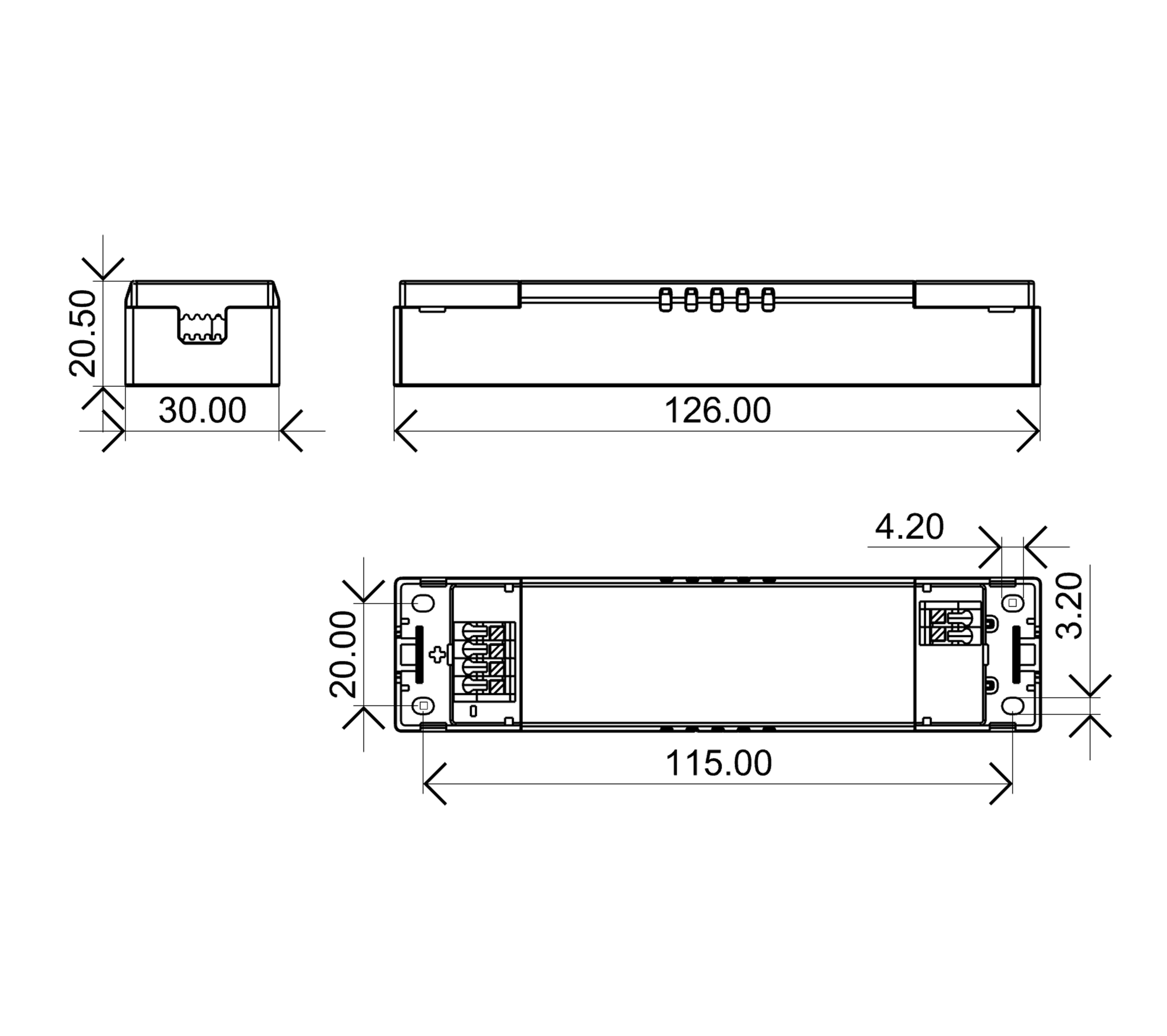

2D Line Drawing
Product Image
2D Line Drawing
8W | 120-220mA

FLS-8-220 0-10 LA EXC

Product Description:

· For luminaire of protection class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Dimming range 1% to 100%

· Output current adjusted via dip-switch

· Efficiency>80%

· Power Factor>0.95

· 12V Auxiliary source

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Models
Datasheet
Certificate
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-8-220 0-10 LA EXC8W220-240VAC120-220mA15-42VDC80%0.95126*30*20.5mm



Tags:
Related Products
12W | 250-330mA
FLS-12-330 0-10 LA EXC
