8W | 120-220mA

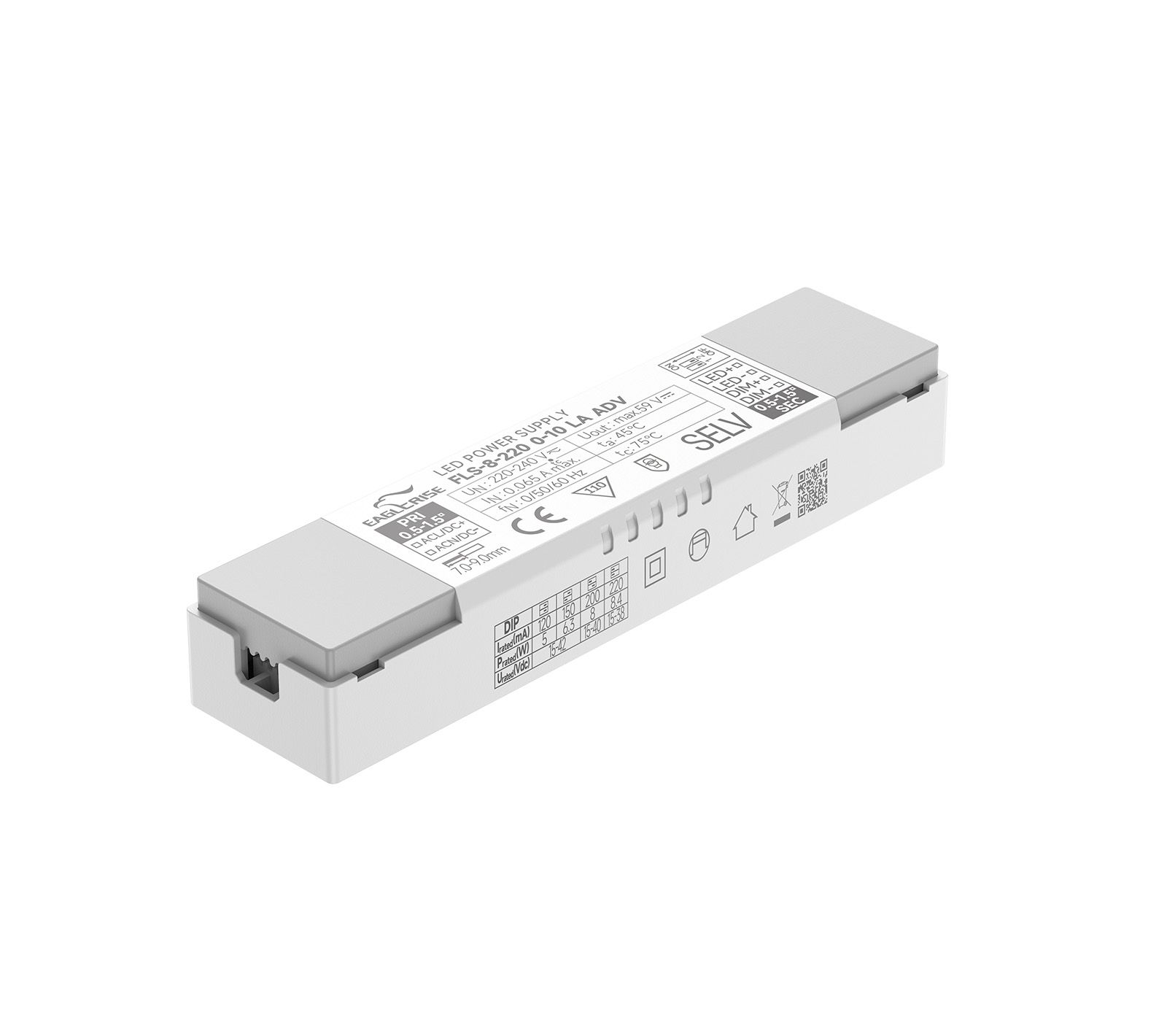

FLS-8-220 0-10 LA ADV

Product Description:

· For luminaries of protection Class II， SELV，Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor ：0.95

· Efficiency ：84%

· Support 0-10V,RX,PWM Dimming

· 5 years warranty

Click to Expand
Inquire Now
Models
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-8-220 0-10 LA ADV8W220-240VAC120-220mA15-42VDC83%0.95115*30*20.5mm
