60W | 1100-1700mA

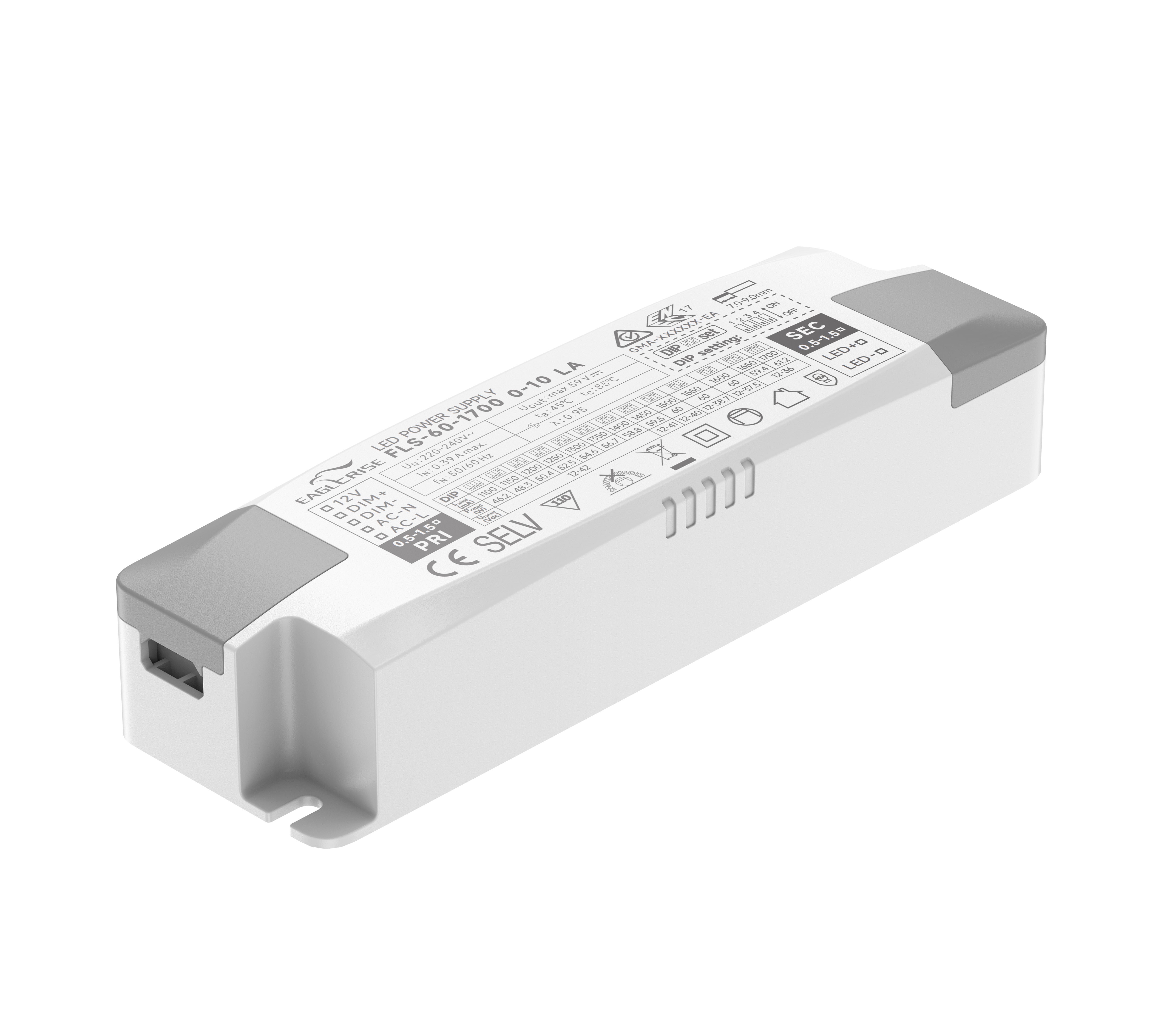

FLS-60-1700 0-10 LA

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Dimming range 1% to 100%

· Output current adjusted via dip-switch

· Efficiency>88%

· Power Factor＞0.97

· 12V Auxiliary source

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOnput CurrentOnput VoltageEfficiencyPower FactorSize
FLS-60-1700 0-10 LA60W220-240VAC1100-1700mA12-42VDC88%0.95150*45*30mm



FLS-60-1700 0-10 LA spec REV B
