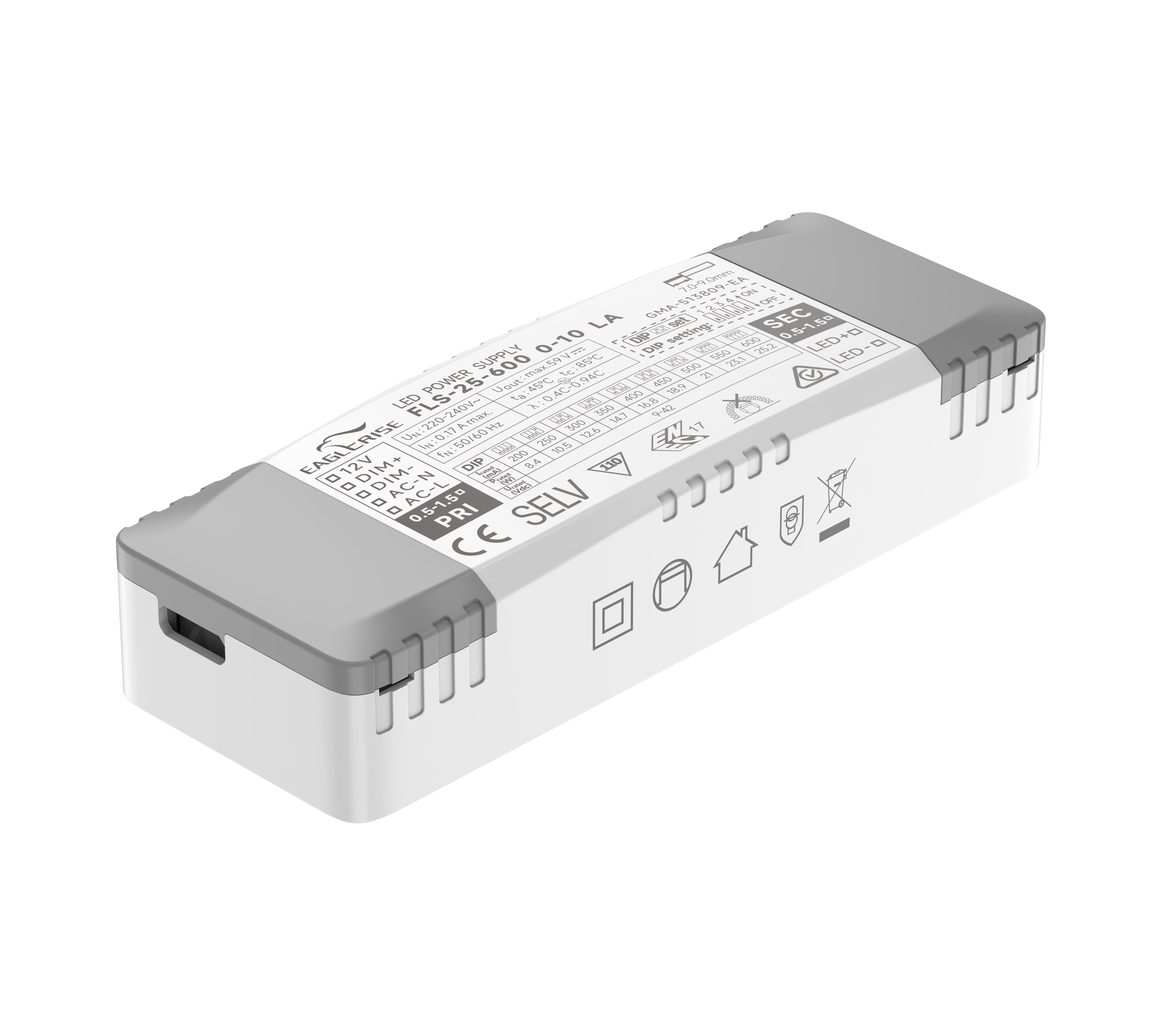

Product Image

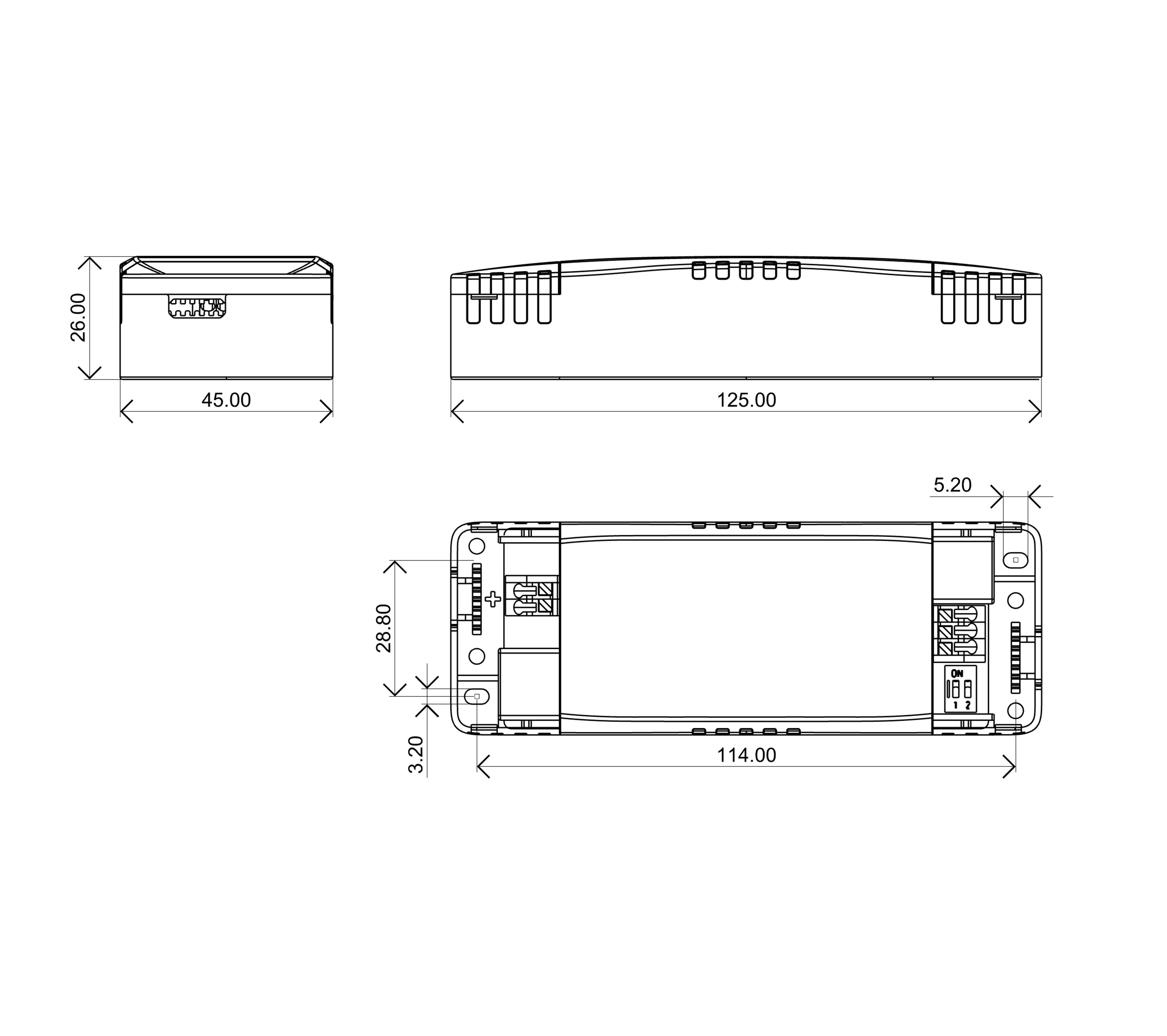

2D Line Drawing

25W | 200-600mA

FLS-25-600 0-10 LA

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Dimming range 1% to 100%

· Output current adjusted via dip-switch

· Efficiency>88%

· Power Factor＞0.97

· 12V Auxiliary source

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Onput Current	Onput Voltage	Efficiency	Power Factor	Size
FLS-25-600 0-10 LA	25W	220-240VAC	200-600mA	9-42VDC	84%	0.95	1254526mm

FLS-25-600 0-10 LA spec REV A

Download All Files

Tags:

0-10V

Related Products

15W | 120-350mA

FLS-15-350 0-10 LA

60W | 1100-1700mA

FLS-60-1700 0-10 LA

44W | 200-600mA

FLS-44-1050 0-10 LA
